Product Name:

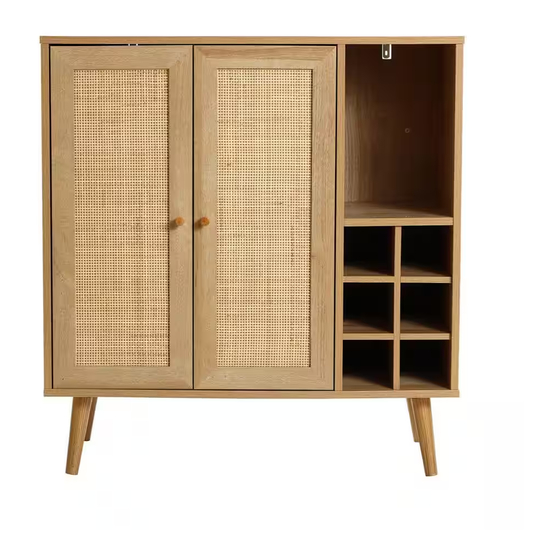

35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet
SKU #:
WHIF1832
Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of
safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from the packaging inside the carton to ensure there are no missing or damaged parts. Do not attempt to
assemble or use the product if any parts are missing or damaged.
CARTON CONTENTS:
Hardware –
Please save this manual for future reference.
Instruction Manual
Advertisement
Related Manuals for LuxenHome WHIF1832
Summary of Contents for LuxenHome WHIF1832
- Page 1 Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
- Page 2 Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Panels – Tools required for assembly: Philips screwdriver and flathead screwdriver (if using power tools, use with care).
- Page 3 Instruction Manual Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Panels -...
- Page 4 Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 ASSEMBLY INSTRUCTIONS: Step 1: Install and tighten hardware A until the shoulder is flush with panels 1 and 2.
- Page 5 Instruction Manual Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Step 2: Connect panel 3 to panels 1 and 2 using hardware C and B.
- Page 6 Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Step 3: Install and tighten hardware A until should is flush with panels 4 and 1.
- Page 7 Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Step 4: Connect panel 5 to the assembled section (panels 4 and 1) using hardware C and B.
- Page 8 Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Step 5: Connect panel 6 to the assembled section (panels 4, 1, and 2) with hardware C and E.
- Page 9 Instruction Manual Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Step 6: Install hardware F to the bottom of panel 6 using screws G.
- Page 10 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Step 7: Attach the cabinet legs L to the four corners of panel 6 by screwing it into hardware F. Do not over-tighten to prevent cracking or stripping.
- Page 11 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Step 8: Carefully flip the cabinet right side up. Connect the back panels 7 and 13 using the connector panel 14. Slide the assembled back panels 7, 14, and 13 into the grooves of panels 1 and 4. Side panel 8 into the grooves of panels 1 and 2.
- Page 12 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Step 9: Install and tighten hardware A until the shoulder is flush with the underside of panel 9. Install hardware K bracket to panel 9 using hardware D. Then install hardware M bracket to panel 9 using hardware D.
- Page 13 Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Attach the top panel 9 to the assembled section of panels 4, 1, and 2 using hardware C and B. Step 10:...
- Page 14 Instruction Manual Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 To stabilize the body, Step 11: cabinet lock hardware H on the back of panels 8 and 7 in 10 places with the screw...
- Page 15 Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Assemble the hardware to cabinet doors 10 (x 2). Install hardware J to doors 10 (x 2) using hardware D. Then Step 12:...
- Page 16 Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Attach one of the doors 10 to panels 4 and 2 using hardware D. Step 13:...
- Page 17 Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Tips: Adjust the door up and down by loosening and tightening the screws in the vertical position. Adjust the door front and back with the left screw in the horizontal position.
- Page 18 Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Connect panels 11 and 12. Slide assembled section (panels 11 and 12) into the empty compartment on the Step 13: bottom right side.
- Page 19 Please save this manual for future reference. Product Name: 35" Tall 2-Door Rattan Light Oak Finish Wood Wine and Storage Cabinet SKU #: WHIF1832 Step 14: For additional stability, secure the cabinet to the wall using the restraint kit included.
