LuxenHome WHIF1827 Instruction Manual

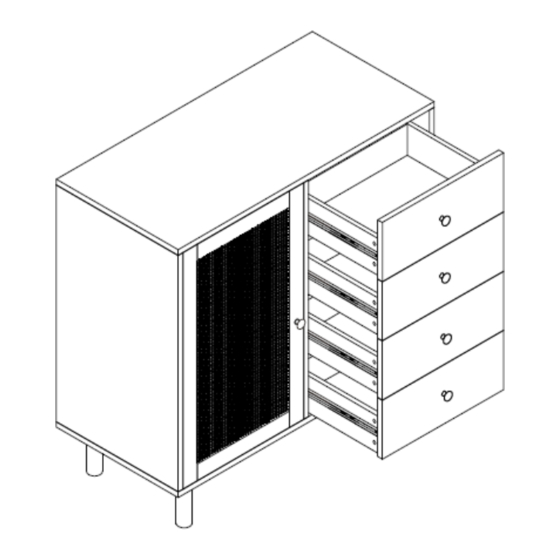

White oak finish wood and rattan 1-door 4-drawer storage cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual
Product Name:
SKU #:
Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of
safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from the packaging inside the carton to ensure there are no missing or damaged parts. Do not attempt to
assemble or use the product if any parts are missing or damaged.
CARTON CONTENTS:
Hardware –
White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet
WHIF1827
Please save this manual for future reference.
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the WHIF1827 and is the answer not in the manual?

Questions and answers

Related Manuals for LuxenHome WHIF1827

Summary of Contents for LuxenHome WHIF1827

  • Page 1 Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Thank you for purchasing this LuxenHöme product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
  • Page 2 Please save this manual for future reference. Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Panels – Tools required for assembly: Philips screwdriver and flathead screwdriver (if using power tools, use with care).
  • Page 3 Instruction Manual Please save this manual for future reference. Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Assembly Illustration:...
  • Page 4 Please save this manual for future reference. Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 ASSEMBLY INSTRUCTIONS: Step 1: Screw hardware B into panel 4. Extend hardware E and attach it to panel 4 using hardware D.
  • Page 5 Please save this manual for future reference. Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Step 2: Screw hardware B into panel 3. Extend hardware E and attach it to panel 3 using hardware D.
  • Page 6 Instruction Manual Please save this manual for future reference. Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Step 3: Connect panel 15 to panels 2 and 4 using hardware A, B, and C.
  • Page 7 Please save this manual for future reference. Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Step 4: Connect panel 12 to panels 3 and 4 with hardware A and C. Attached hardware Q to panel 4 using screw hardware...
  • Page 8 Please save this manual for future reference. Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Step 5: Connect panel 5 to the assembled section of panels 2, 3, and 4 using hardware C and G.
  • Page 9 Instruction Manual Please save this manual for future reference. Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Step 6: Attach legs 14 to the bottom of panel 5.
  • Page 10 Please save this manual for future reference. Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Step 7: Carefully flip the cabinet right side up. Slide the back panels 13 into the grooves of panels 2, 4, and 3.
  • Page 11 White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Step 8: Screw hardware B into panel 1. Attach hardware O to panel 1 using hardware M and N. Connect panel 1 to the assembled panels 2, 4, and 3 using hardware C and A.
  • Page 12 Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Install hardware K on Door 6 using hardware. Attach the door 6 to the left side (panel 2) using hardware I Step 9: and J.
  • Page 13 Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Tips: Adjust the door up and down by loosening and tightening the screws in the vertical position. Adjust the door front and back with the left screw in the horizontal position.
  • Page 14 Instruction Manual Please save this manual for future reference. Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 To stabilize the body, Step 10: cabinet lock hardware R on the back panel in 12 places with the screw in...
  • Page 15 Instruction Manual Please save this manual for future reference. Product Name: White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Step 11: For additional stability, secure the cabinet to the wall using the restraint kit included.
  • Page 16 White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Step 12: Assemble the drawers: Connect panel 12 to panels 8 and 9 using hardware L. Slide panel 11 into the grooves of panels 8 and 9 until it is fixed into the groove of panel 10. Attach panel 7 to assembled sections of 8 and 9 using hardware...
  • Page 17 White Oak Finish Wood and Rattan 1-Door 4-Drawer Storage Cabinet SKU #: WHIF1827 Step 13: Attach drawer to hardware E (drawer rails) using hardware F. Warning: DO NOT sit or stand on the cabinet as this may damage the product and cause serious bodily injury.
