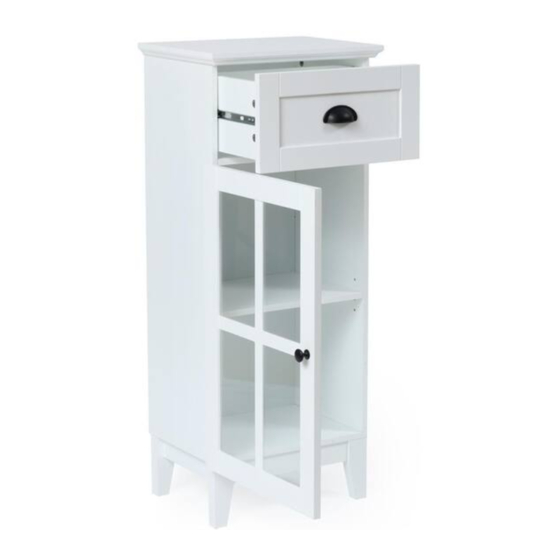

White MDF Wood Slim Bathroom Storage Cabinet and End Table
Product Name:
SKU #:
WHIF1839
Thank you for purchasing this Luxen H
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.
Hardware:
1 ×14
2 ×14
7 ×2
8 ×9
13 ×10
14 ×8
M3*14
19 ×1
20 ×1
Tools required for assembly: Philips screwdriver and Flathead Screwdriver (if using power tools, use with care)
ome
product. This product has been manufactured with the highest
3 ×10
9 ×1
M4*35
15 ×2
21 ×4
0:45
Please save this manual for future reference.
4 ×1
5 ×1
10 ×1
11 ×1
M4*12
16 ×1
17 ×4
Instruction Manual
6 ×16
M4*18
M3*12
12 ×4
18 ×8
M4*10
M4*50
Advertisement
Related Manuals for LuxenHome WHIF1839
Summary of Contents for LuxenHome WHIF1839
- Page 1 Please save this manual for future reference. White MDF Wood Slim Bathroom Storage Cabinet and End Table Product Name: SKU #: WHIF1839 Thank you for purchasing this Luxen H product. This product has been manufactured with the highest standards of safety and quality.
- Page 2 Instruction Manual Please save this manual for future reference. White MDF Wood Slim Bathroom Storage Cabinet and End Table Product Name: SKU #: WHIF1839 Panels:...
- Page 3 Instruction Manual Please save this manual for future reference. White MDF Wood Slim Bathroom Storage Cabinet and End Table Product Name: WHIF1839 SKU #: Make sure the pins are installed correctly as shown with the “check mark” below: 9 ×1 Below shows how the pins are used to assemble the panels together.
- Page 4 Instruction Manual Please save this manual for future reference. Product Name: White MDF Wood Slim Bathroom Storage Cabinet and End Table WHIF1839 SKU #: Step 2 Screw cam bolts (1) to side panel B & C as shown. Fix slider (15) onto side panel B & C with screws (6 ),Please screw in the correct holes as shown.
- Page 5 White MDF Wood Slim Bathroom Storage Cabinet and End Table Product Name: SKU #: WHIF1839 Step 3 Insert wood plugs (3) to Upper bar D, Assemble D to side panel B & C, then Insert cam locks (2) and �ghten.
- Page 6 White MDF Wood Slim Bathroom Storage Cabinet and End Table Product Name: SKU #: WHIF1839 Step 4 Screw cam bolts (1) to Legs H as shown. Assemble Legs H to lower bars I , then Insert cam locks (2) and �ghten.
- Page 7 Please save this manual for future reference. White MDF Wood Slim Bathroom Storage Cabinet and End Table Product Name: SKU #: WHIF1839 Step 5 1 ×4 Fix bo�om base to unit with screws (18) as shown. Fix Hanger bracket (11) onto top panel A with screw (10). Screw cam bolts (1) to A.
- Page 8 Please save this manual for future reference. White MDF Wood Slim Bathroom Storage Cabinet and End Table Product Name: SKU #: WHIF1839 Step 6 2 ×4 Insert back panel G align with groove. Insert wood plugs (3) to side panels B & C, Assemble top panel A to unit,then Insert cam locks (2) and �ghten.
- Page 9 Please save this manual for future reference. White MDF Wood Slim Bathroom Storage Cabinet and End Table Product Name: SKU #: WHIF1839 Step 7 Assemble the hinges (7) to door O with screws (6), Fix handle (4) to O with bolt (5). 4 ×1 Fix magnet plate (16) to O with screws (6).
- Page 10 Please save this manual for future reference. White MDF Wood Slim Bathroom Storage Cabinet and End Table Product Name: SKU #: WHIF1839 Step 8 Screw cam bolts (1) to drawer front panel J. 1 ×4 Fix handle (19) to drawer front panel J with bolts (17).
- Page 11 Please save this manual for future reference. White MDF Wood Slim Bathroom Storage Cabinet and End Table Product Name: SKU #: WHIF1839 Step 9 Insert back panel bu�ons (14) to unit with screws (13) as shown. 13 ×8 14 ×8...
- Page 12 Please save this manual for future reference. White MDF Wood Slim Bathroom Storage Cabinet and End Table Product Name: SKU #: WHIF1839 Step 10 Draw a loca�on hole on Wall. Drill a hole on the wall to input wall plugs (20) , 8 ×1 Fix the cabinet to wall with screws (8) as shown.
