Kimball Office NARRATE Assembly Instructions

NARRATE
™
Frames, Connector

Tools Required

•
Cordless Drill/Driver
•
3/16" Allen Bit, #2 Phillips Bit
•
Tape Measure

Installation

Note: a Cross Line Laser Level is recommended to provide fast-
er and more accurate installations. In the event a Cross Line La-
ser Level is not available, a large hand level can be used.
Note: Electrical Jumpers that go through Connectors must
be installed BEFORE the Vertical Connector Trim is ap-
plied. Failure to do so will result in partial dis-assembly later
during the installation for Jumper Insertion.
1. Locate the high spot on the floor in area where frames are to
be assembled. Frame assembly should start at a directional
connector (L, T, X, V, Y).

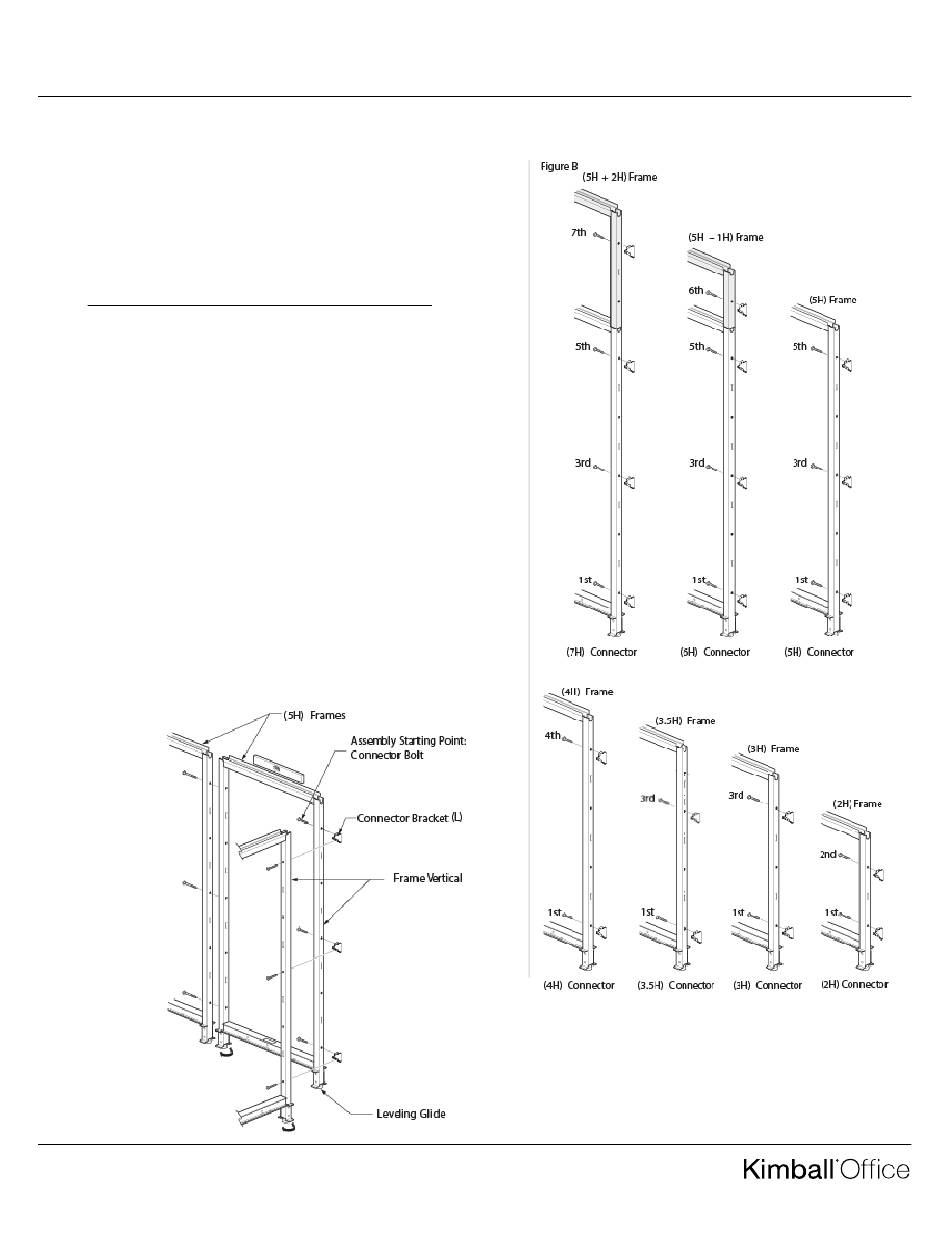

2. Using 2" connector bolts connect frames to connector brack-
ets at the location shown in figure A and B. Top Bracket
should be located at the highest position possible and the
remaining brackets at the lowest position possible.
3. Level assembly of frames and connectors in all directions,
included across perpendicular frames.
4. Connect additional frames to assembly using 2 1/4" frame-
to-frame alignment bolts in the locations shown. (Figure B).
Level each frame, ensuring that each glide is touching the
floor.
Figure A
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part 2997016,B
Figure A
•
Level
•
Pry Bar (for
leveling)
Assembly Instructions
1
