Kimball Office Xsite Assembly Instructions

Xsite ®
Frames, Connectors,
and 3" Extender
Tools Required
Cordless Drill/Driver
I
3 ⁄ " Allen Bit
I
1 6
Tape Measure
I
Installation
Frame:
1. Locate the high spot of the floor in area where frames are to
be assembled. Frame assembly should start at a directional
connector (L, T, X, V, Y).
2. Using 2" connector/end trim bolts connect frames to connector
using the number of bolts shown. (Figures A & B).
3. Level assembly of frames and connector.
4. Connect additional frames to assembly using 2
alignment bolts in the locations shown. (Figure B). Level
each frame, ensuring that each glide is touching the floor.

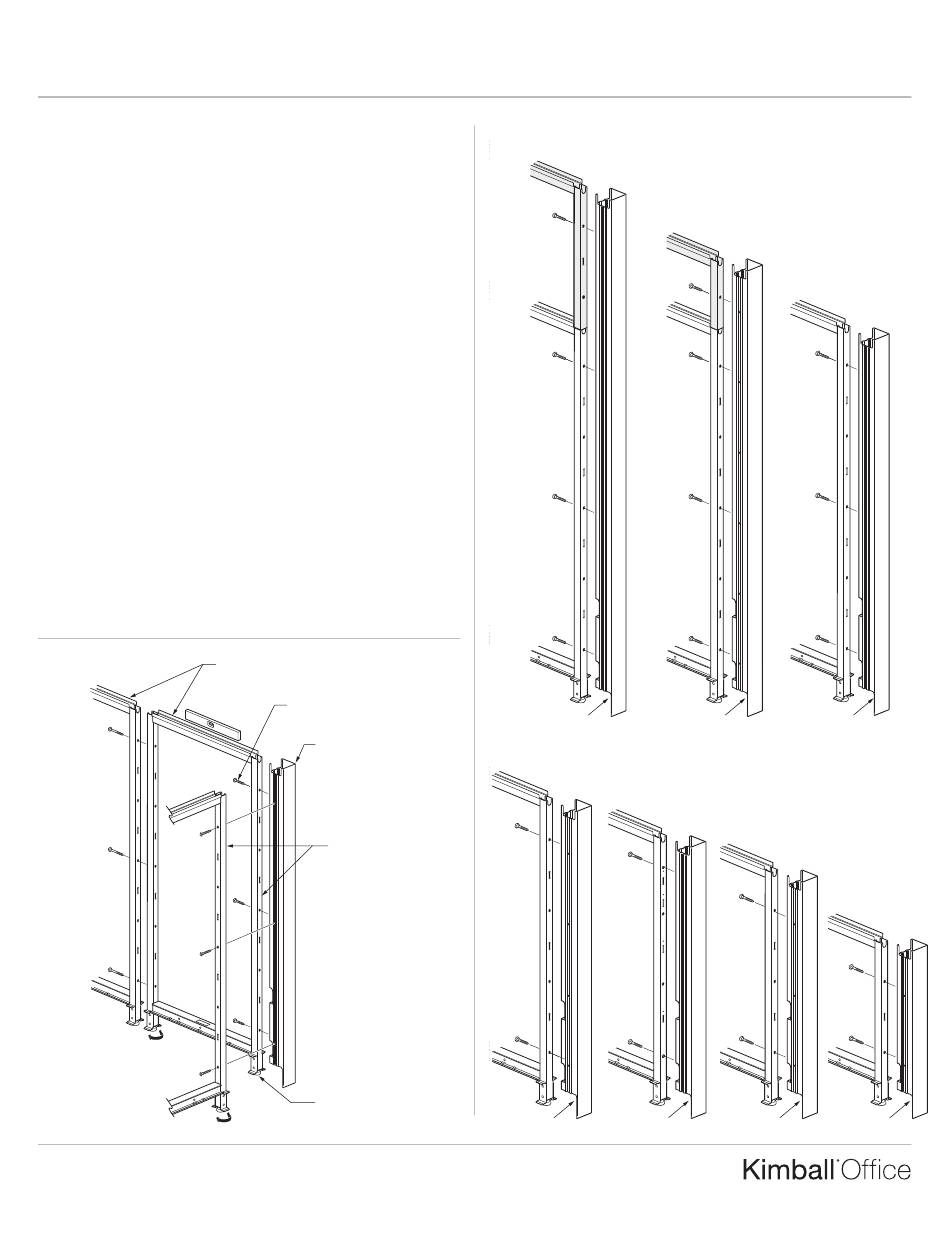

Figure A
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Service.
Part No. 2014839 Revision B-10
Level
I
Pry Bar (for leveling)
I
3 ⁄ " frame-to-frame
4
(5H) Frames
Assembly Starting Point:
Connector Bolt
(5H) Connector (L)
Frame Vertical
Leveling Glide
Figure B
(5H + 2H) Frame
7th
(5H + 1H) Frame
6th
5th
3rd
1st
(7H) Connector (6H) Connector
(4H) Frame
(3.5H) Frame
4th
4th
1st
1st
(4H) Connector (3.5H) Connector
Assembly Instructions
Page 1 of 2
(5H) Frame
5th 5th
3rd 3rd
1st 1st
(5H) Connector
(3H) Frame
3rd
(2H) Frame
2nd
1st 1st
(3H) Connector (2H) Connector
