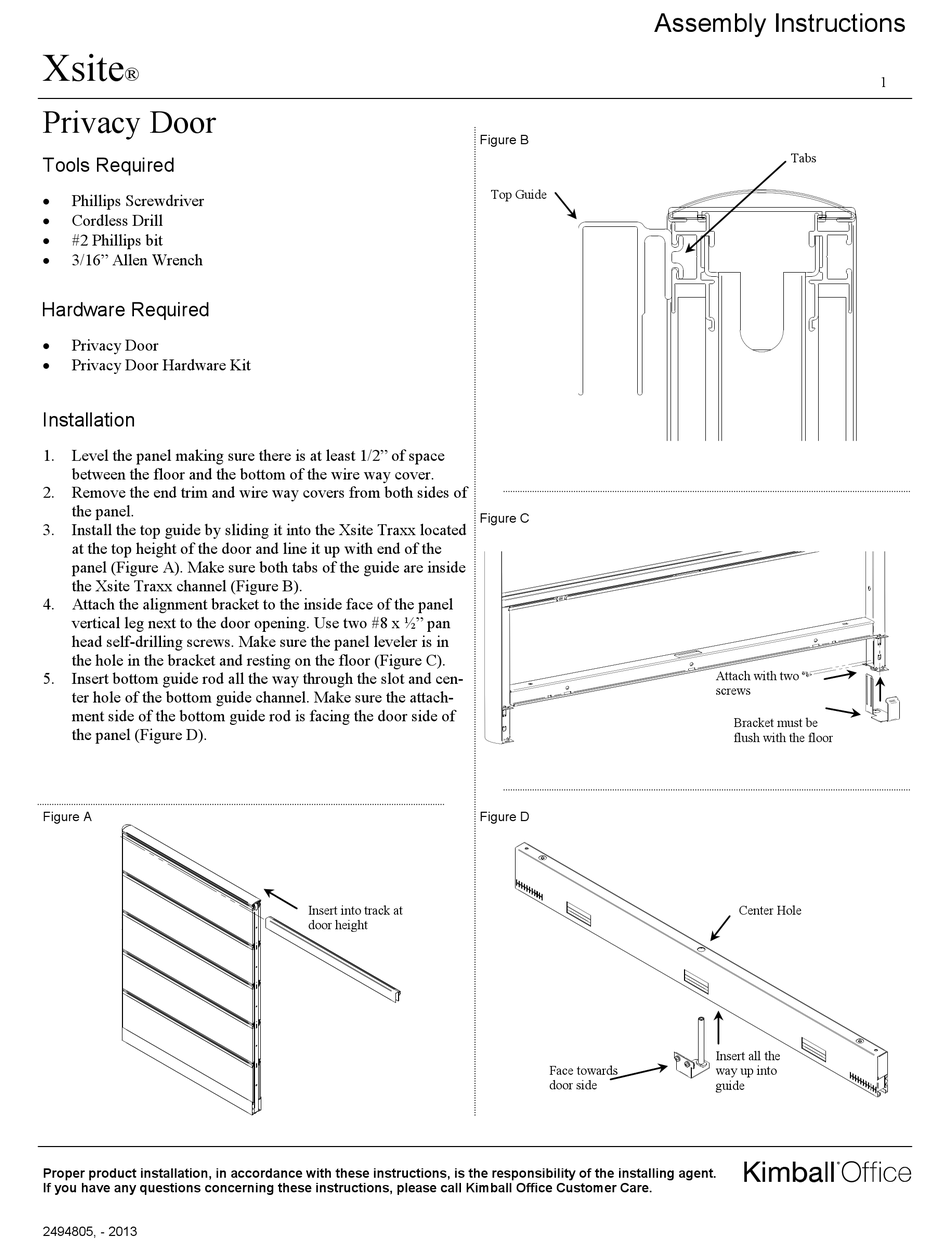

Kimball Office Xsite Privacy Door Assembly Instructions

Xsite
®
Privacy Door
Tools Required

Phillips Screwdriver

Cordless Drill

#2 Phillips bit

3/16" Allen Wrench
Hardware Required

Privacy Door

Privacy Door Hardware Kit
Installation
1. Level the panel making sure there is at least 1/2" of space
between the floor and the bottom of the wire way cover.
2. Remove the end trim and wire way covers from both sides of
the panel.
3. Install the top guide by sliding it into the Xsite Traxx located
at the top height of the door and line it up with end of the
panel (Figure A). Make sure both tabs of the guide are inside
the Xsite Traxx channel (Figure B).
4. Attach the alignment bracket to the inside face of the panel
vertical leg next to the door opening. Use two #8 x ½" pan
head self-drilling screws. Make sure the panel leveler is in
the hole in the bracket and resting on the floor (Figure C).
5. Insert bottom guide rod all the way through the slot and cen-
ter hole of the bottom guide channel. Make sure the attach-
ment side of the bottom guide rod is facing the door side of
the panel (Figure D).
Figure A
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
2494805, - 2013
Figure B
Figure C
Figure D
Insert into track at
door height
Assembly Instructions
Top Guide
Face towards
door side
1
Tabs
Attach with two
screws
Bracket must be
flush with the floor
Center Hole
Insert all the
way up into
guide
