Kimball Office Guide Lectern Assembly Instructions

Guide
™
Guide Lectern Assembly

Tools Required

•
Drill Tape Measure
• Allen Wrench Set #2 Phillips Head Bit Drive
• 1/8" Drill Bit
Hardware Required for Guide Lectern with Metal
Pedestals
(1) – Guide Lectern X-Blade Base (54K2028CFXMP)
(1) – Podium Surface (54K1916WS*)
(1) – Podium Column (54K1202PCP)
(1) – Lectern Pedestal (TFL)
(2) – 3/8-16 x 1.5" PH Hex Machine Screws
(20) – #10-0.75" PHP Wood Screws

Installation

1. Place the TFL pedestal and place upside-down on a non-
marring surface.

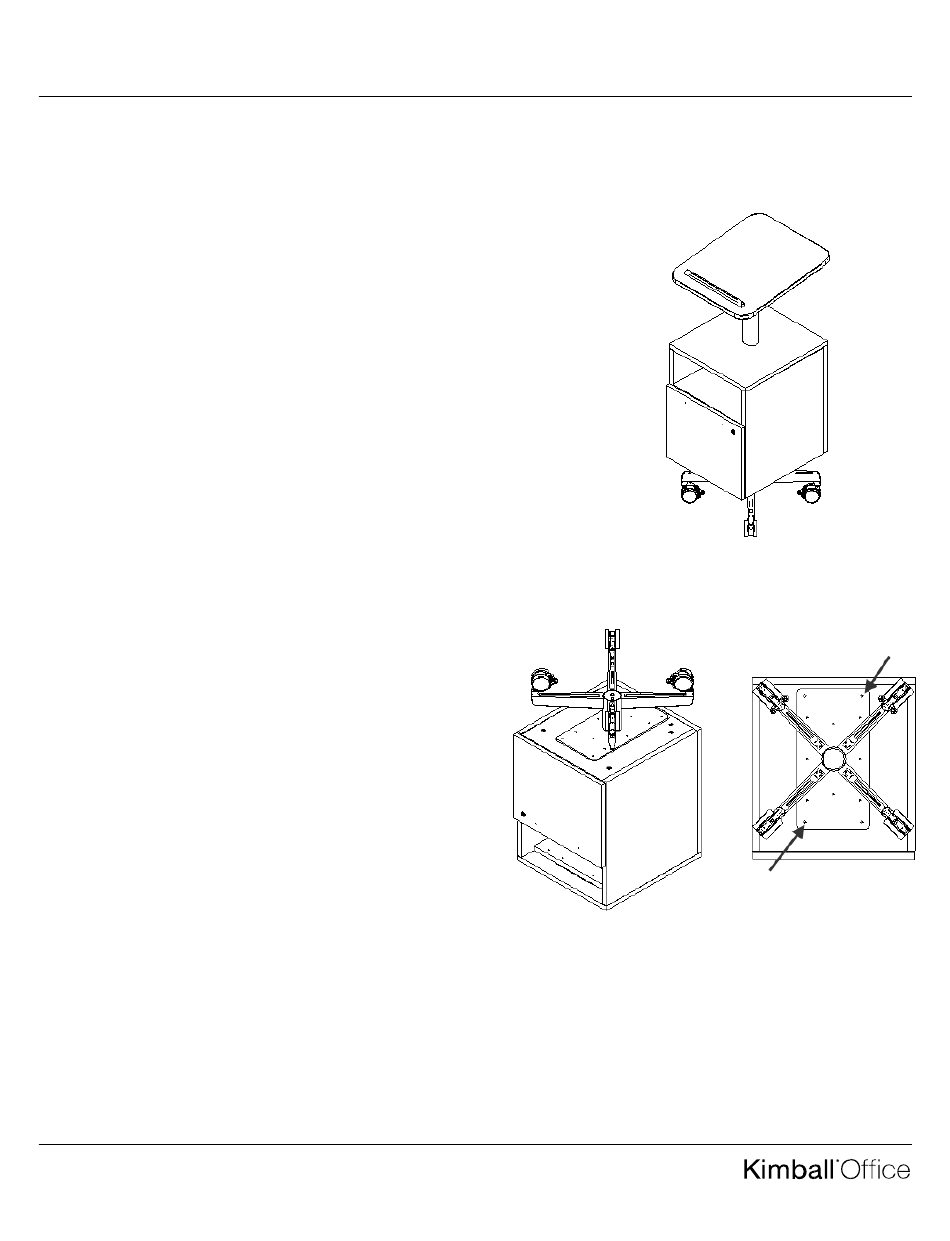

2. Place the Guide Lectern X-Blade Base upside-down,
aligning the two pre-machined holes with two (2) of the
corner holes in the X-Blade Base as seen in Figure 1.
Drive 2 #10-0.75 PHP Wood Screws into the pre-machined
holes and then drive #10-0.75 PHP Wood Screws through
the remaining holes on the X-Blade Base into the underside
of the pedestal.
3. Place the Podium surface upside-down on a non-marring
surface, then place the Podium Column upside-down on the
backside of the Podium surface and center it as seen in
Figure 2 on the next page.
4. Pre-drill the holes, as seen fit, to a depth of a few
millimeters, and drive eight (8) #10-0.75" PHP Wood
Screws through the holes in the Podium Column plate, into
the Podium surface.
Proper product installation, in accordance with these instructions, is the responsibility of the installing agent.
If you have any questions concerning these instructions, please call Kimball Office Customer Care.
Part 2827016, Revision -
(TFL Hinged Door/Open File Pedestal)
Assembly Instructions
Figure 1
1
