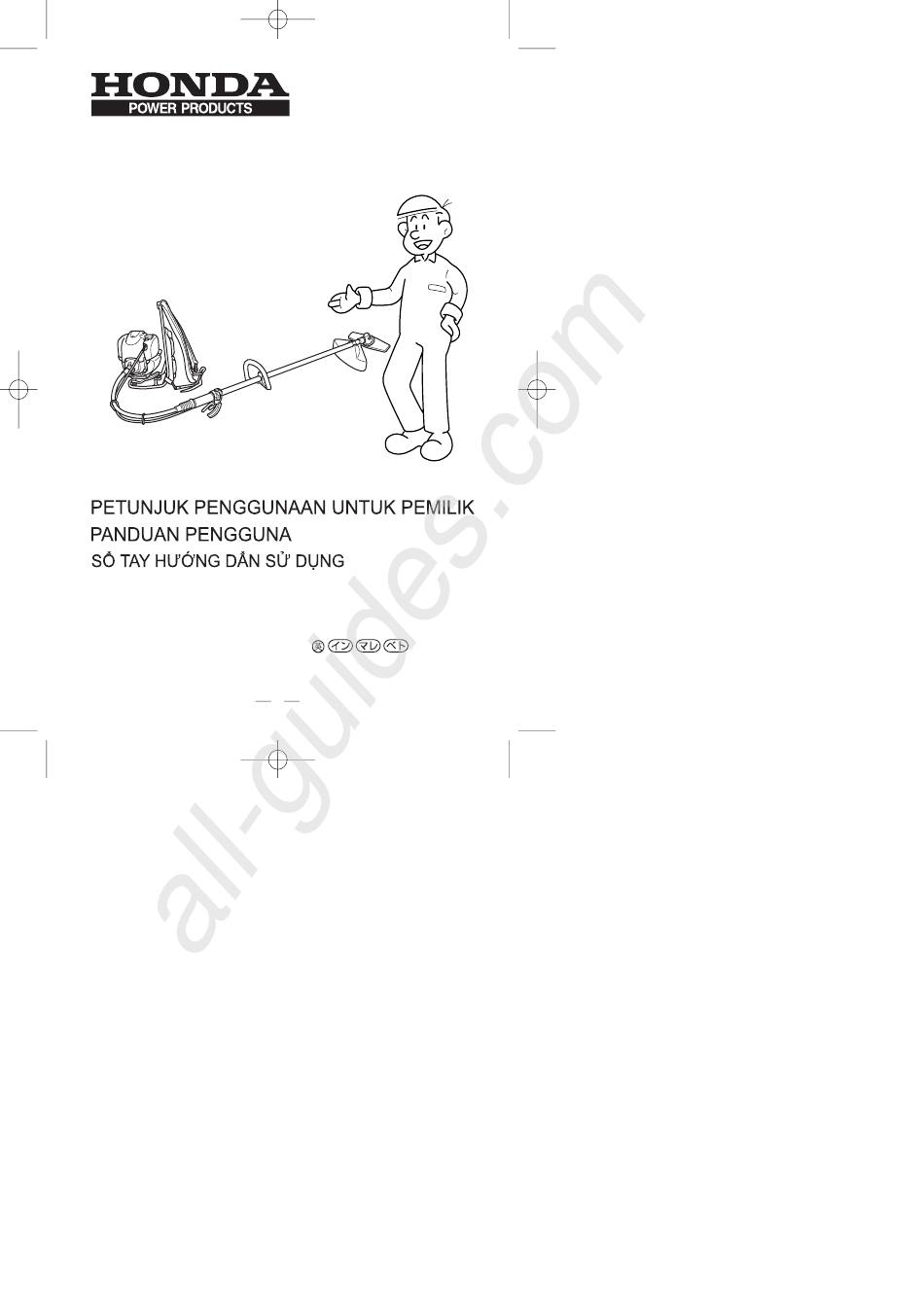

*UMR435T(4MVL5600)-1_honyaku
BRUSH CUTTER
UMR435T
OWNER´S MANUAL
© Honda Motor Co., Ltd. 2004
© Honda Motor Co., Ltd. 2006
4MVL5600
00X4M-VL5-6000
7/7/06 10:03
Page 1
All manuals and user guides at all-guides.com
2006.07
PRINTED IN THAILAND
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UMR435T and is the answer not in the manual?

Questions and answers

Related Manuals for Honda UMR435T

Summary of Contents for Honda UMR435T

  • Page 1 *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:03 Page 1 All manuals and user guides at all-guides.com BRUSH CUTTER UMR435T OWNER´S MANUAL © Honda Motor Co., Ltd. 2004 © Honda Motor Co., Ltd. 2006 4MVL5600 2006.07 00X4M-VL5-6000 PRINTED IN THAILAND...

  • Page 2: General Safety

    *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:03 Page 2 All manuals and user guides at all-guides.com 1. GENERAL SAFETY SEGURIDAD GENERAL DO NOT USE INSIDE HOUSE KEEP AWAY FROM FLAMMABLE MATERIALS MORE than 1 m (3 ft)

  • Page 3: Stop Engine

    *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:03 Page 3 All manuals and user guides at all-guides.com NO SMOKING STOP ENGINE DO NOT SPILL (Fuel tank capacity 0.65L) REMOVE SCATTERED OBJECTS...
  • Page 4 *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:03 Page 4 All manuals and user guides at all-guides.com WEAR EYE PROTECTION AND PROTECTIVE DEVICES 1. GOGGLES 2. FACE SHIELD 3. HELMET 4. EAR MUFFS 5. CLOTHES (LONG SLEEVE) 6. ARM COVER 9. LEG PROTECTOR 7. GLOVES 8.
  • Page 5 *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:03 Page 5 All manuals and user guides at all-guides.com DO NOT OPERATE IF THERE ARE ANY BREAKAGES, CRACKS AND BENDS AND BOLT LOOSEN DO NOT OPERATE WITHOUT DEFLECTOR BEFORE STARTING ENGINE, CHECK THAT BLADE IS RAISED OFF GROUND.
  • Page 6 *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:03 Page 6 All manuals and user guides at all-guides.com DO NOT RELEASE BOTH SIDES OF SHOULDER HARNESS AT ONCE WHEN USING THE QUICK RELEASE IN AN EMERGENCY. KEEP PEOPLE AND ANIMALS AWAY 15 m (50 ft) 15 m...

  • Page 7: Pre-Operation Check

    *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:03 Page 7 All manuals and user guides at all-guides.com 2. PRE-OPERATION CHECK OIL LEVEL CAUTION: Be sure to check the engine on a level sur- face with the engine stopped. 1. Check the oil level on a level surface.

  • Page 8: Fuel Level

    *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:04 Page 8 All manuals and user guides at all-guides.com 2. Fill the oil to the edge of the oil filler neck. (Oil capacity 0.1L) 4-STROKE MOTOR OIL SAE 30, 40, 10W-30 API SF, SG SAE 30, 40, 10W-30 API SF, SG...
  • Page 9 *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:04 Page 9 All manuals and user guides at all-guides.com Upper level (Fuel tank capacity 0.65L) Never use an oil/gasoline mixture or dirty gasoline. Do not use gasoline that contains more than 10% ethanol. Never use gasoline containing more than 5% methanol.

  • Page 10: Air Cleaner

    *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:04 Page 10 All manuals and user guides at all-guides.com AIR CLEANER 1. Check for dirt in the air cleaner element. 2. If the element is dirty, clean it. Wash Soak → Squeeze → → →...
  • Page 11 *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:04 Page 11 All manuals and user guides at all-guides.com A: THROTTLE CABLE B: ADJUSTING NUT FREE PLAY 0.5 – 2.5 mm 0.5 – 2.5 mm 450 mm 0.5 – 2.5 mm (17.7 in) 0.5 – 2.5 mm 1.
  • Page 12 *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:04 Page 12 All manuals and user guides at all-guides.com BLADE 1. Check the blade mounting nut for loosen. Tighten the nut, if necessary. 2. Check the blade for crack, nicks, bend and wear. Replace it, if necessary.
  • Page 13 *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:04 Page 13 All manuals and user guides at all-guides.com 2. Check the deflector for damage. Replace it, if necessary. 3. Keep the deflector position & direction same as picture. RETIGHTENING BOLTS AND NUTS 1. Check for loose bolts and nuts.

  • Page 14: Starting The Engine

    *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:04 Page 14 All manuals and user guides at all-guides.com QUICK RELEASE UNIT 1. Push the release button and check whether the shoulder harness is released. 2. Secure the quick release unit. 3. STARTING THE ENGINE Check that blade does not touch ground etc. before engine start.
  • Page 15 *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:04 Page 15 All manuals and user guides at all-guides.com 1. Turn the engine swtch to the “START” position. 2. Turn the choke lever to the close position, if neces- sary. 3. Press the priming pump several times until fuel stays in a priming pump.

  • Page 16: Stopping The Engine

    *UMR435T(4MVL5600)-1_honyaku 7/7/06 10:04 Page 16 All manuals and user guides at all-guides.com 4. Pull the starter grip lightly until you feel resistance, then pull briskly. Return the starter grip gently. 5. Turn the choke lever to the open position. 4. STOPPING THE ENGINE...

  • Page 17: Operation

    *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 17 All manuals and user guides at all-guides.com 2. Turn the engine switch to the “STOP” position. 5. OPERATION 1. Put the harness on your shoulder with the hand which you will operate the throttle trigger and put the remaining harness on your shoulder with another hand.
  • Page 18 *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 18 All manuals and user guides at all-guides.com 2. Hold the handle and grip as shown. 3. Pull the throttle trigger at the desired position. A: You can control the rotation speed. B: You can further increase the rotation speed from the speed obtained...
  • Page 19 *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 19 All manuals and user guides at all-guides.com 4. If you want to change the maximum rotation speed obtained by pulling A, loosen the 1 lock nut and adjust the 2 adjustment knob then re-tighten the 1 lock nut.

  • Page 20: Maintenance Schedule

    *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 20 All manuals and user guides at all-guides.com 6. MAINTENANCE MAINTENANCE SCHEDULE Check Change Clean Check-Readjust Grease Replace if necessary.
  • Page 21 *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 21 All manuals and user guides at all-guides.com First...

  • Page 22: Oil Change

    *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 22 All manuals and user guides at all-guides.com (1) These items should be serviced by a authorized Honda dealer. (2) These consumption parts should be replace even a short period if it is necessary. OIL CHANGE 1.

  • Page 23: Spark Plug

    *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 23 All manuals and user guides at all-guides.com 3. Fill the oil to the edge of the oil filler neck. SPARK PLUG 1. Remove the plug. 2. Clean the deposit.
  • Page 24 *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 24 All manuals and user guides at all-guides.com 3. Measure the clearance. 0.6 - 0.7 mm (0.024 - 0.028 in) NGK: CMR5H FUEL FILTER SERVICE and FUEL TANK CLEANING 1. Remove the fuel filler cap. 2. Drain the fuel by tilting the engine.

  • Page 25: Cooling Fin

    *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 25 All manuals and user guides at all-guides.com 3. Pull out the fuel filter and clean it gently. 4. Remove water and dirt stood in the fuel tank by rinsing its inside. COOLING FIN 1. Check the cooling fin of its dirt...

  • Page 26: Blade Replacement

    *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 26 All manuals and user guides at all-guides.com FUEL TUBE 1. Check the fuel tube and the fuel return tube of its deterioration. BLADE REPLACEMENT 1 NUT (Left-hand thread) TORQUE: 24 N·m * Use genuine parts.
  • Page 27 All manuals and user guides at all-guides.com CHANGE TO ENGINE MOUNTING DIRECTION This brush cutter is able to change engine mounting direction. See the set-up instructions or consult your authorized Honda dealer. 1 Left hand setting 2 Right hand setting...
  • Page 28 *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 28 All manuals and user guides at all-guides.com 7. STORAGE 1. Drain the fuel from the fuel tank. 2. Press the priming pump several times and drain the fuel from the fuel tank again. 3. Remove the oil filler cap and drain the oil.
  • Page 29 *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 29 All manuals and user guides at all-guides.com 4. Fill the oil to the edge of the oil filler neck. 5. Store the brush cutter in the clean area.

  • Page 30: Troubleshooting

    *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 30 All manuals and user guides at all-guides.com 8. TROUBLESHOOTING ENGINE NOT START 1. Check fuel from the outside of the fuel tank. 2. Check a fuel in the priming pump by pressing the priming pump sev- eral times.
  • Page 31 *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:05 Page 31 All manuals and user guides at all-guides.com Remove the plug. Clean, gap or replace spark plug. Bersihkanlah sela-selanya dan gantilah busi tersebut. Bersihkan ruang atau gantikan palam pencucuh.
  • Page 32 *UMR435T(4MVL5600)-2_honyaku 7/7/06 10:06 Page 32 All manuals and user guides at all-guides.com BRUSH CUTTER VIBRATES ABNORMALLY 1. Stop the engine immediately. 2. Check the blade(s) and blade mounting nut. (see page 26)
