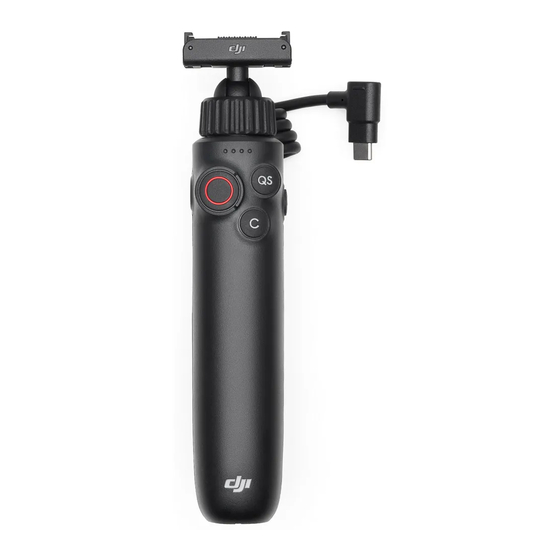

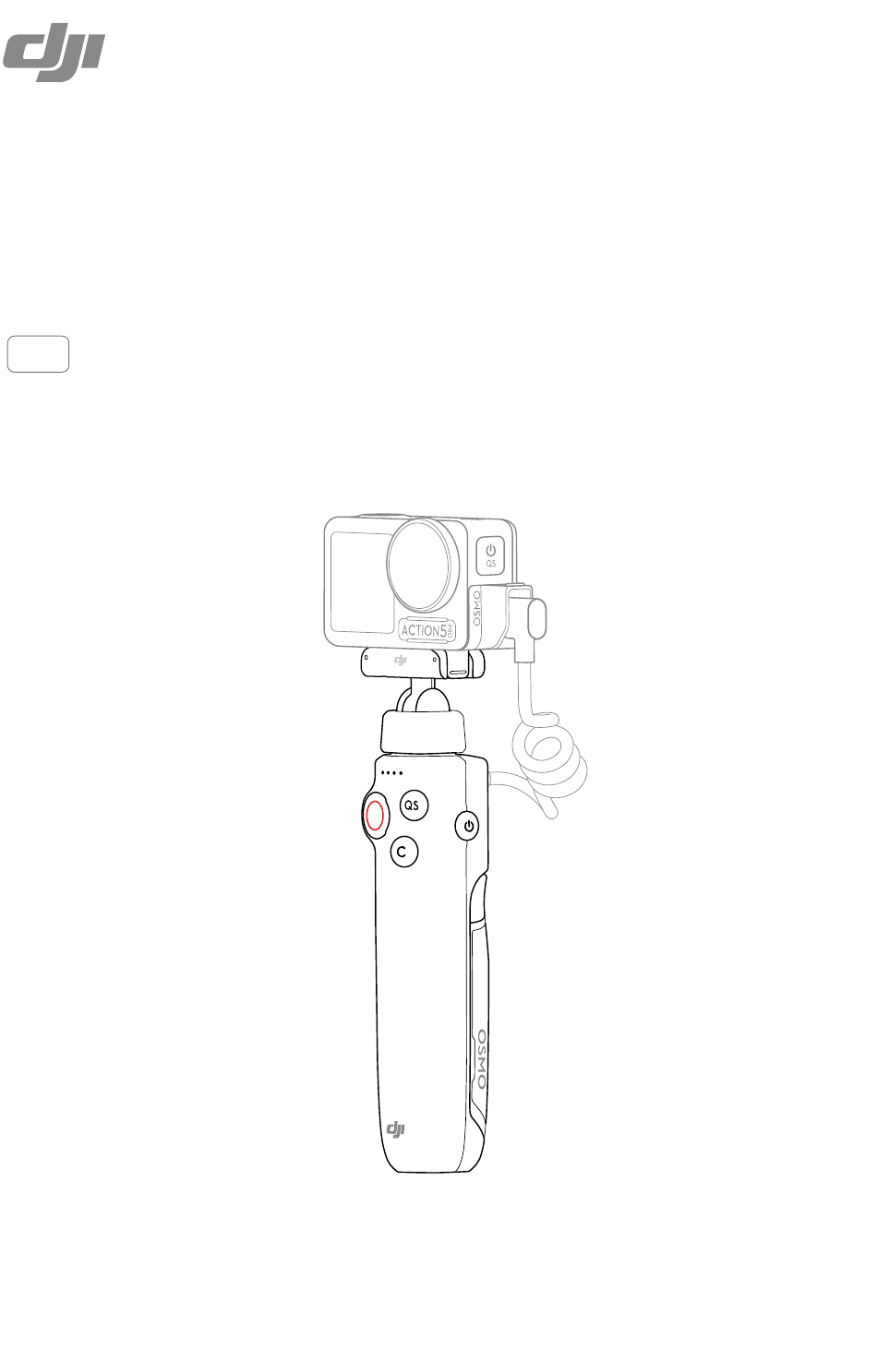

- Page 1 Osmo Action Multifunctional Charging Handle User Guide v1.0 2024.09...
- Page 2 This document is copyrighted by DJI with all rights reserved. Unless otherwise authorized by DJI, you are not eligible to use or allow others to use the document or any part of the document by reproducing, transferring or selling the document. Only refer to this document and the content thereof as instructions to operate DJI UAVs.
-
Page 3: Table Of Contents
Osmo Action Multifunctional Charging Handle User Guide Contents Product Profile Overview Button Features Using the Product Charging the Camera Charging the Charging Handle Microphone Connection Warnings Status LED Appendix Updating Firmware Specifications © 2024 DJI All Rights Reserved. -
Page 4: Product Profile
Osmo Action Multifunctional Charging Handle User Guide Product Profile 1.1 Overview 1. Magnetic Ball-Joint Quick-Release 8. USB-C Port Protective Cover Adapter Mount 9. 3.5mm TRS Microphone Input 2. Status LED 10. USB-C Charging Port 3. Shutter/Record Button 11. Foldable Tripod 4. - Page 5 Osmo Action Multifunctional Charging Handle User Guide Quick Switch Button When the charging handle is connected to the camera, the follow- ing operations can be performed: • Press and hold: Power off the camera. • Press once: Power on the camera or switch between shooting modes.
-
Page 6: Using The Product
Osmo Action Multifunctional Charging Handle User Guide Using the Product 2.1 Charging the Camera © 2024 DJI All Rights Reserved. - Page 7 Osmo Action Multifunctional Charging Handle User Guide • The camera can only be charged after the charging handle is powered on. • The charging handle will automatically shut down within 1 minute when the charging handle is not connected to the camera and is not being charged.
-
Page 8: Charging The Charging Handle
Osmo Action Multifunctional Charging Handle User Guide 2.2 Charging the Charging Handle Open the USB-C protective cover on the back of the product, connect the product to the charger via the USB-C port. The status LEDs will flash and display the battery level during the charging process. -
Page 9: Warnings
Osmo Action Multifunctional Charging Handle User Guide 2.4 Warnings • The product is not waterproof. DO NOT place it in water. Use the charging port protector, and make sure the USB-C port on the back of the product is firmly closed. - Page 10 Osmo Action Multifunctional Charging Handle User Guide Blinking Pattern Battery Level 31-50% 10-30% The charging handle is charging the camera (while the charging handle is not being charged) 76-99% 51-75% 31-50% 10-30% < 10% When all LEDs flash simultaneously at a frequency of 3 times per second, the charging handle is currently in a high-temperature or low-temperature environment and cannot be used temporarily.
-
Page 11: Appendix
3.2 Specifications Model OSMO-AF-457 Campatible Action Camera Supported DJI devices will be updated continuously. Visit the corresponding product page on DJI Store for a com- plete list. Compatible DJI Charger DJI 30W USB-C Charger / DJI 65W Portable Charger Voltage 3.6 V... - Page 12 This content is subject to change without prior notice. Download the latest version from https://www.dji.com/osmo-action-5-pro/downloads If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. DJI is a trademark of DJI. OSMO is a trademark of DJI OSMO.
