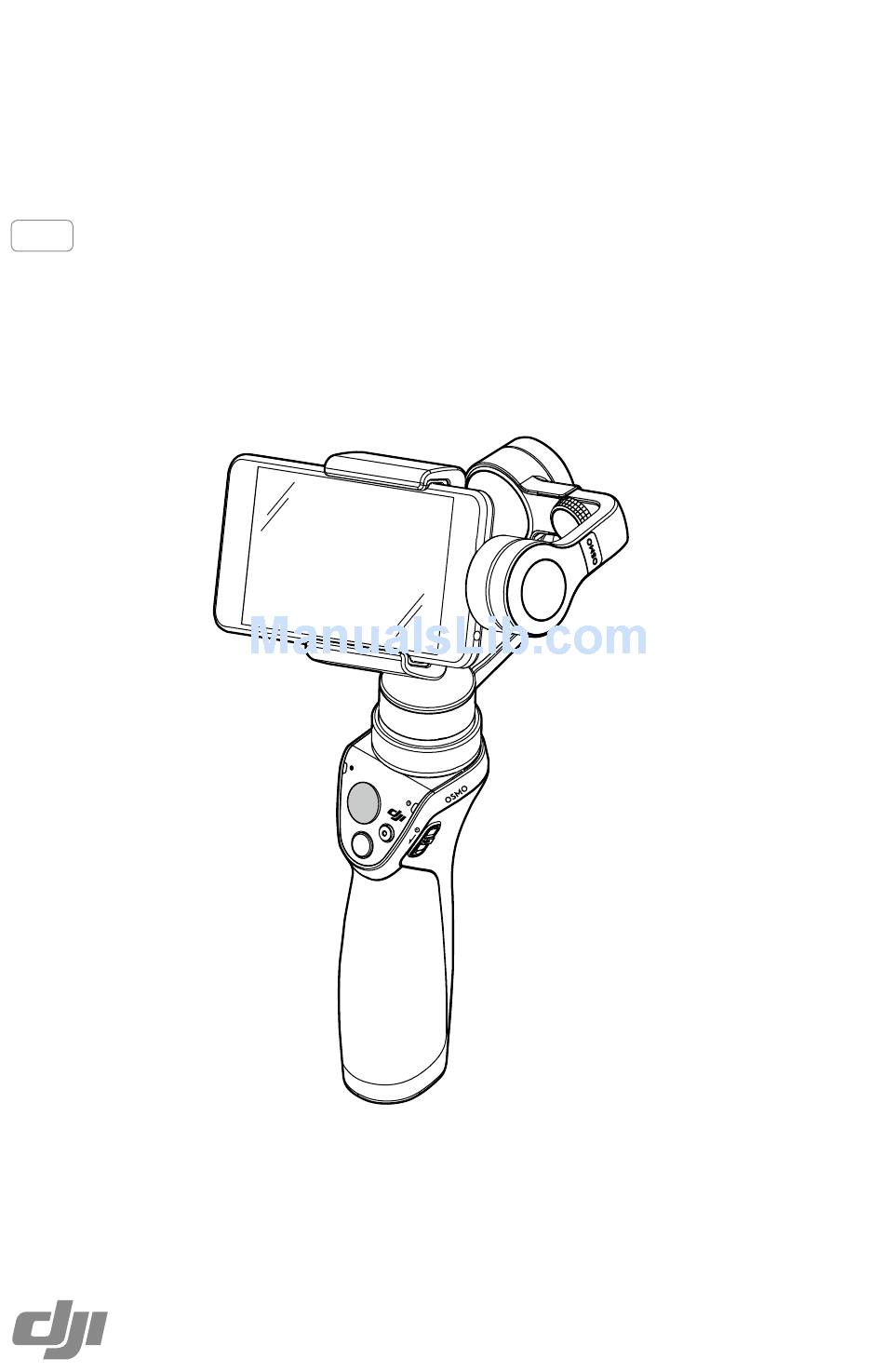

dji OSMO MOBILE User Manual
Hide thumbs Also See for OSMO MOBILE:

Advertisement

OSMO MOBILE
User Manual
V1.2
2017.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSMO MOBILE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for dji OSMO MOBILE

  • Page 1 OSMO MOBILE User Manual V1.2 2017.01...
  • Page 2: Using This Manual

    Legend Important Tips Install the DJI GO App Search for ‘DJI GO’ on the App Store or Google Play and install the app on your mobile device. DJI GO supports iOS 8.0 (or later) or Android 4.4 (or later). ©...
  • Page 3: Table Of Contents

    Getting Started Intelligent Battery Mount and Balance the Mobile Phone Optional Accessories Using the Osmo Mobile Controls and Operations Operation Modes DJI GO App Download Connecting to the DJI GO App Key Pages Upgrading the Firmware How to Upgrade Using the Zenmuse M1 gimbal with Osmo Handle Install the Zenmuse M1 Notes Specifications © 2017 DJI All Rights Reserved.
  • Page 4: Introduction

    Finer operations can be done with the joystick, and the phone can be instantly positioned by hand. The DJI Rosette Mount on the side of the handle supports a number of accessories, including an Extension Rod, a Tripod, and various mounts for specialized filmmaking applications.
  • Page 5: Getting Started

    Getting Started Intelligent Battery The 980 mAh Intelligent Battery can power the Osmo Mobile for about 4.5 hours. Intelligent Battery Functions Battery Balancing Balances the voltage of each cell during charging. Overcurrent Protection Stops charging if the charging current is too large.
  • Page 6 Osmo Mobile User Manual Inserting the Battery Slide the locking switch at the base of the Osmo Mobile to open the battery cover. Insert the battery and lock the battery cover. Charging To charge the Osmo Mobile, connect the USB adapter (not included) to the charging port using the provided power cable.
  • Page 7: Mount And Balance The Mobile Phone

    Osmo Mobile User Manual Mount and Balance the Mobile Phone 1. With the Osmo Mobile powered off, loosen the Holder Lock Knob, place the mobile phone in the mobile phone holder and tighten the knob to secure its position. 2. The system is balanced if the mobile phone remains level when released, balanced only by the gimbal.
  • Page 8: Optional Accessories

    Osmo Mobile User Manual Optional Accessories DJI provides various optional accessories for the Osmo Mobile. Osmo Base Provides a stable platform for your Osmo to stand upright. Universal Mount Used to mount external devices such as a flashlight. Extension Rod Good for taking group selfies, overhead shots or reaching into small spaces.
  • Page 9: Using The Osmo Mobile

    All of the buttons and controls are described below. [1] Power Switch To turn on/off the Osmo Mobile, pull the power switch down and hold for 1.5 seconds. With the Osmo Mobile powered on, pull the power switch and then release quickly will cause the Osmo Mobile to go in or out of sleep mode.
  • Page 10 Self-timer Blinks Green for each shot Burst shooting Blinks Red slowly Recording video [6] System Status Indicator Indicates the status of the Osmo Mobile. Refer to the table below for details. System Status Indicator © 2017 DJI All Rights Reserved.
  • Page 11 Switching cameras during video recording will stop the recording. Hold down the trigger and push the joystick up and down to zoom. This function is available in the DJI GO app metering mode and when using your phone's rear camera only.
  • Page 12: Operation Modes

    Upright Mode can be used without any user input. In this mode, quickly tap the trigger twice to center the mobile phone. Underslung Mode Holding the Osmo Mobile upside down will cause it to enter Underslung Mode, in which the mobile phone can easily capture images from a lower position. ©...
  • Page 13 Flashlight Mode, pushing the joystick up and down will tilt the gimbal, pushing the joystick left and right will have no effect. Portrait Mode Rotate the Osmo Mobile 90 degrees to the left or right to go from Upright Mode to Portrait Mode. ActiveTrack is disabled when using Portrait Mode. ©...
  • Page 14: Dji Go App

    DJI GO 3. Lanuch DJI GO app. If you are using the Osmo Mobile for the first time, follow the on- screen instructions to activate it. You will need to log in to your DJI account through an Internet connection.
  • Page 15: Key Pages

    Tripod Mode locks the gimbal motor for greater stability. Tripod Mode is recommended when shooting a timelapse with the Osmo Mobile placed on a stable surface. If you are holding the Osmo Mobile, disable Tripod Mode to allow the gimbal to allow it to stabilize.
  • Page 16 Auto Calibration Reduces drift caused by nearby magnetic interference or human error. Do not touch the gimbal and hold the Osmo Mobile still and upright during calibration. Joystick Control Direction Tilt and pan axis can be controlled simultaneously by setting the Joystick control direction to Free.
  • Page 17 3. Skypixel View and share the photos and videos here. 4. Me If you already have a DJI account, you will be able to participate in forum discussions, and visit DJI online store here. © 2017 DJI All Rights Reserved.
  • Page 18: Upgrading The Firmware

    How to Upgrade Connect the Osmo Mobile to your mobile device and then launch the DJI GO app. You will be reminded if a new firmware upgrade is available. To start upgrading, connect your mobile device to the internet and follow the on-screen instructions.
  • Page 19: Notes

    Osmo Mobile User Manual Notes The Zenmuse M1's operations and functions are the same as the Osmo Mobile, except other Osmo accessories such as Osmo Pro/RAW Z-Axis and Gimbal Extension can be used with the Osmo Handle. Pay attention to the following items when using the Zenmuse M1 gimbal with the Osmo Handle.
  • Page 20: Specifications

    Intelligent Battery Model HB01-522365 Type LiPo Capacity 980 mAh Energy 10.8 Wh Voltage 11.1 V Charging Temperature 5° to 40° C (41° to 104° F) Operating Temperature 0° to 40° C (32° to 104° F) © 2017 DJI All Rights Reserved.
  • Page 21: 2017 Dji All Rights Reserved

    This content is subject to change. Download the latest version from www.dji.com/product/osmo-mobile If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. OSMO is a trademark of DJI. Copyright © 2017 DJI All Rights Reserved.
