Osmo Mobile 4 Quick Start Guide

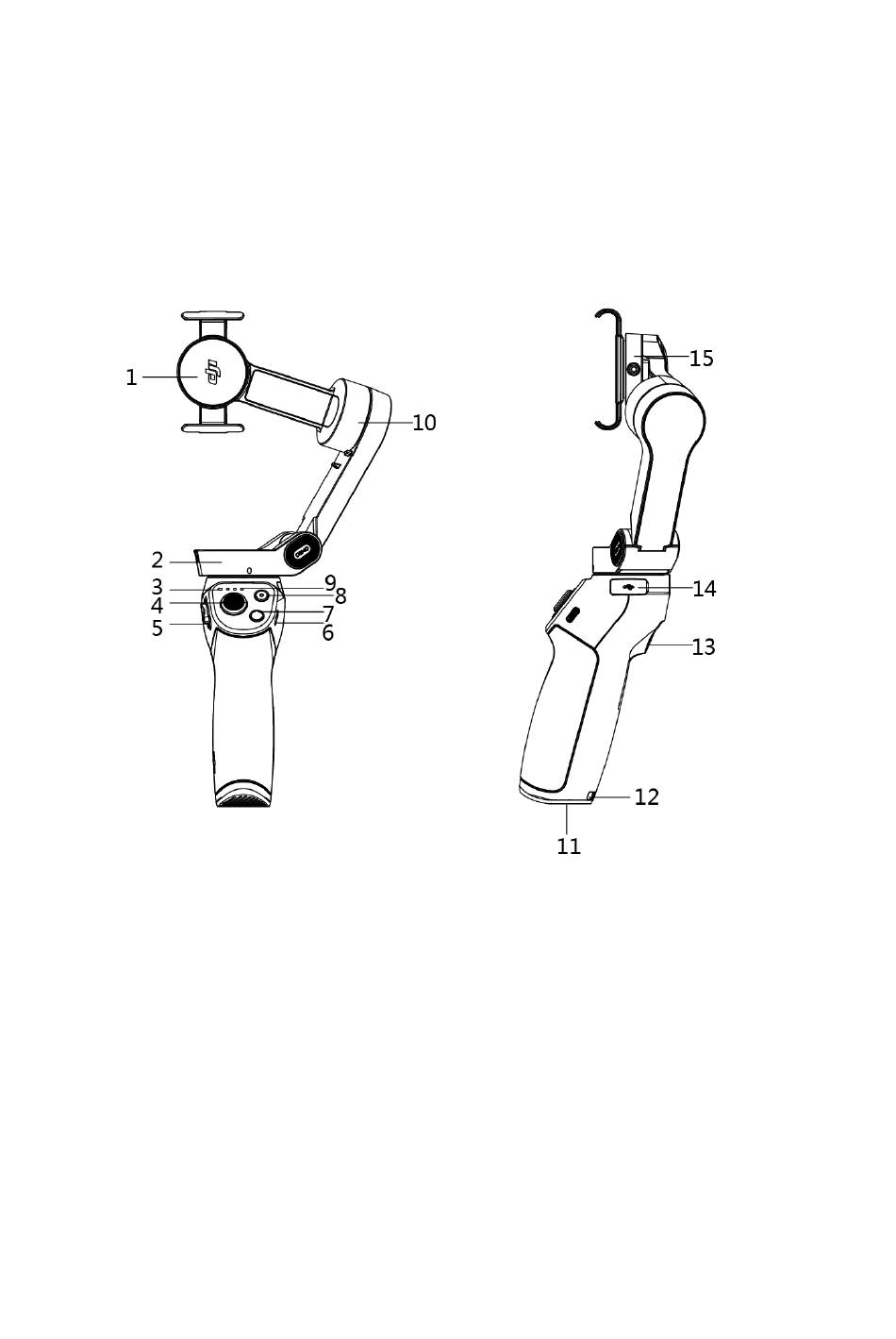

Overview
1. Magnetic Phone Clamp
2. Pan Motor
3. Status LED
4. Joystick
5. Zoom Slider
6. Power Port (USB-C)
7. M Button
8. Shutter Button
9. Battery Level LEDs
10. Tilt Motor
11. 1/4" Screw Hole
12. Lanyard Hole
13. Trigger
14. USB-A Port
15. Roll Motor

Advertisement

loading
Need help?

Need help?

Do you have a question about the Osmo Mobile 4 and is the answer not in the manual?

Questions and answers

Related Manuals for dji Osmo Mobile 4

Summary of Contents for dji Osmo Mobile 4

  • Page 1 Osmo Mobile 4 Quick Start Guide Overview 1. Magnetic Phone Clamp 2. Pan Motor 3. Status LED 4. Joystick 5. Zoom Slider 6. Power Port (USB-C) 7. M Button 8. Shutter Button 9. Battery Level LEDs 10. Tilt Motor 11. 1/4” Screw Hole 12.
  • Page 2 Connect your mobile phone to the USB-A port. If Osmo Mobile 4 is powered on, the mobile phone will begin to charge. If Osmo Mobile 4 is powered off, press the M button once to start charging. Attaching the Phone 1.

  • Page 3: Operation

    Osmo Mobile 4. 3. Unfold Osmo Mobile 4 and press and hold the M button to power on. Operation Use the onboard buttons to control Osmo Mobile 4. Note that DJI Mimo is required to control the camera. M Button...
  • Page 4 Press once: check battery level. Press and hold: power on. When Powered on Press once: switch between photo and video mode. Press twice: switch between landscape and portrait mode. Press and hold until it beeps once: enter or exit standby mode. Press and hold until it beeps twice: power off.

  • Page 5: Specifications

    Press once, and then press and hold: enter Sport mode. Release to exit Sport mode. DJI Mimo App Activate Osmo Mobile 4 through DJI Mimo to control the phone cameras and use Gesture Control, ActiveTrack, Story mode, and more features.

  • Page 6: Compliance Information

    7.72 inch Thickness:6.9-10 mm Width: 62-88 Mode Bluetooth Low Energy 5.0 ≤4 dbm Transmitter Power（EIRP） Operation Frequency 2.400-2.4835 GHz Battery Type 18650 Li-ion Capacity 2450 mAh Energy 17.64 Wh Voltage 7.2 V Charging Temperature 5° to 40° C Operating Temperature 0°...
  • Page 7 This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End user must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
  • Page 8 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信； 經發現有干擾現象時， 應改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功 率射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 EU Compliance Statement: SZ DJI Osmo Technology Co., Ltd. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU. A copy of the EU Declaration of Conformity is available online at www.dji.com/euro-compliance...
  • Page 9 Indirizzo di contatto UE: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Germany Déclaration de conformité UE : Par la présente, SZ DJI Osmo Technology Co., Ltd. déclare que cet appareil est conforme aux principales exigences et autres clauses pertinentes de la directive européenne 2014/53/EU...
  • Page 10 Yhteystiedot EU:ssa: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Germany RÁITEAS Comhlí onta an AE: Dearbhaí onn SZ DJI Osmo Technology Co., Ltd. leis seo go bhfuil an gléas seo de réir na gceanglas riachtanach agus na bhforálacha ábhartha eile sa Treoir 2014/53/AE.
  • Page 11 Kontaktadress EU: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Tyskland Yfirlýsing um fylgni við reglur ESB: SZ DJI Osmo Technology Co., Ltd. lýsir hér með yfir að þetta tæ ki hlí ti mikilvæ gum kröfum og öðrum viðeigandi ákvæ ðum tilskipunar 2014/53/ESB.
  • Page 12 collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to these collecting points or to similar collection points. With this little personal effort, you contribute to recycle valuable raw materials and the treatment of toxic substances.
  • Page 13 bijdrage aan de recycling van waardevolle grondstoffen en de verwerking van giftige stoffen. Eliminação ecológica Os aparelhos elétricos antigos não podem ser eliminados juntamente com os materiais residuais. Têm de ser eliminados separadamente. A eliminação no ponto de recolha público através de entidades particulares é gratuita. É da responsabilidade do proprietário de aparelhos antigos levá-los a estes pontos de recolha ou a pontos de recolha semelhantes.
  • Page 14 toorme ringlussevõtule ja mürgiste ainete töötlemisele. Utilizavimas nekenkiant aplinkai Senų elektrinių prietaisų negalima išmesti kartu su buitinėmis atliekomis; juos būtina utilizuoti atskirai. Tokių prietaisų utilizavimas per komunalinius atliekų surinkimo punktus yra nemokamas. Elektrinių prietaisų savininkai utilizuojamus prietaisus privalo priduoti į atitinkamus arba analogiškus atliekų...
  • Page 15 Okolju prijazno odlaganje Starih električnih aparatov ne smete odvreči skupaj z ostanki odpadkov, temveč ločeno. Odlaganje na komunalnem zbirnem mestu je za fizične osebe brezplačno. Lastnik starih naprav je odgovoren, da jih pripelje do teh ali podobnih zbirnih mest. S tako malo osebnega truda prispevate k recikliranju dragocenih surovin in obdelavi strupenih snovi.
  • Page 16 Ekki má farga gömlum raftæ kjum með úrgangsleifum, heldur þarf að farga þeim sérstaklega. Förgun á almennum söfnunarstöðum er ókeypis fyrir einstaklinga. Eigandi gamalla tæ kja ber ábyrgð á að koma með tæ kin á þessa söfnunarstaði eða á svipaða söfnunarstaði. Með þessu litla persónulega átaki stuðlar þú...
