OSMO MOBILE 2
User Manual
v1.0
2018.02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSMO MOBILE 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for dji OSMO MOBILE 2

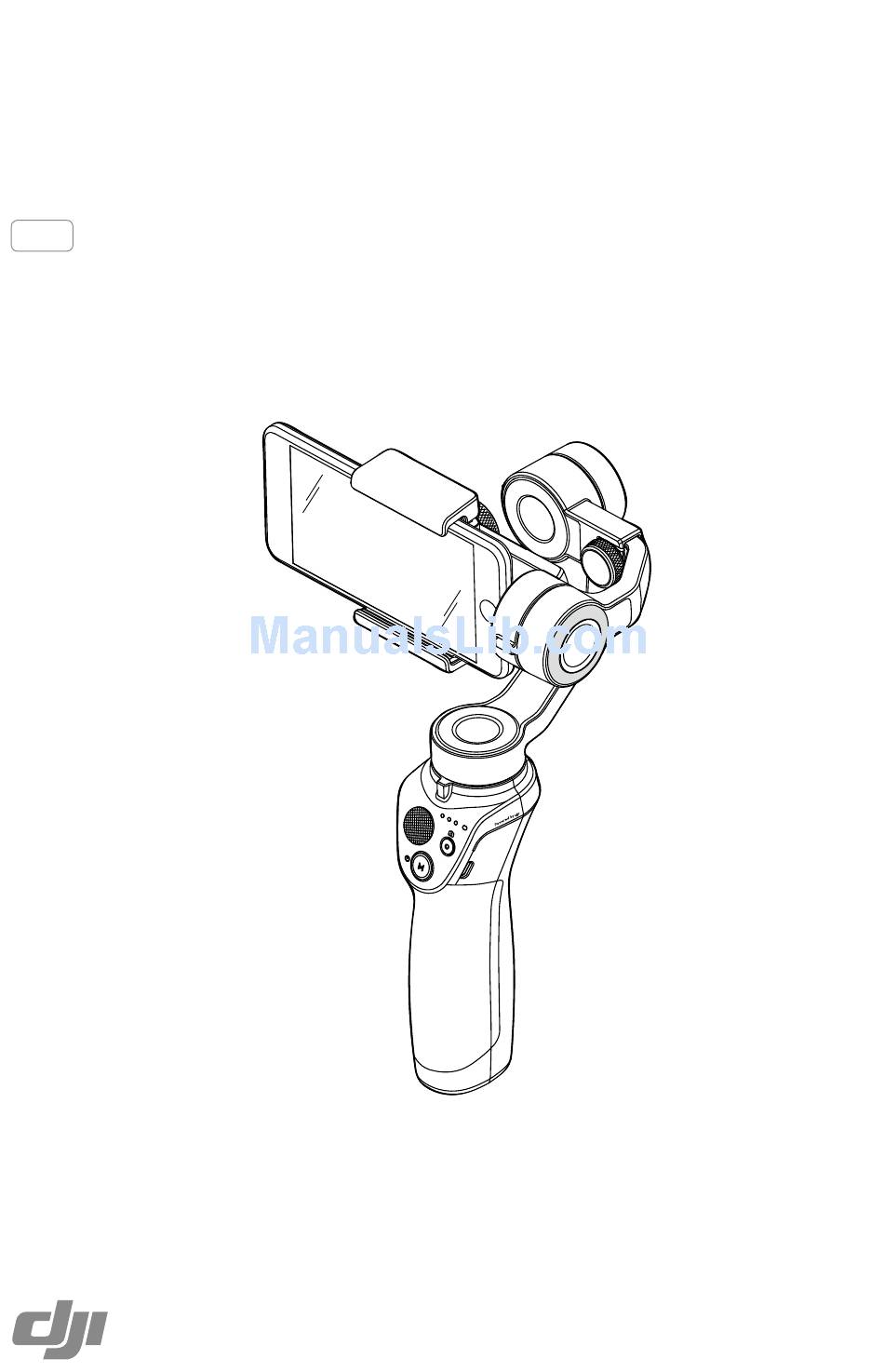

  • Page 1 OSMO MOBILE 2 User Manual v1.0 2018.02...
  • Page 2: Using This Manual

    Hints and Tips Download the DJI GO App Scan the QR code to the right or search for ‘DJI GO’ on the App Store or Google Play. The Android version of DJI GO is compatible with Android v4.4 and later. The iOS version of DJI GO is compatible with iOS v10.0 and later.
  • Page 3: Table Of Contents

    Contents Using this Manual Legend Download the DJI GO App Introduction Charging the Osmo Mobile 2 Mounting and Balancing a Mobile Phone Mounting the Mobile Phone Horizontally Mounting the Mobile Phone Vertically Using the Osmo Mobile 2 Controls and Operations...
  • Page 4: Introduction

    A mobile phone can be mounted to the Osmo Mobile 2 either horizontally or vertically. It is easy to use and in Follow mode allows you to position your phone by hand. Features such as ActiveTrack, Timelapse, and Pano are available through the DJI GO app.
  • Page 5: Charging The Osmo Mobile 2

    Charging the Osmo Mobile 2 To charge the Osmo Mobile 2, connect a USB adapter (not included) to the Charging port using the provided power cable. During charging the battery level indicators blink to indicate the current battery level. The battery is fully charged when the battery level indicators turn solid white.
  • Page 6 Adjustable Arm. The roll axis is balanced if the mobile phone remains level when released. Left Right If the roll axis tilts to the left, pull out the arm until the roll axis remains level. © 2018 DJI All Rights Reserved.
  • Page 7: Mounting The Mobile Phone Vertically

    Hold the Osmo Mobile 2 horizontally and adjust the position of the phone (in the holder) to balance the tilt axis. The tilt axis is balanced if the mobile phone remains level when released.
  • Page 8: Using The Osmo Mobile 2

    1. Power/Mode Button Press and hold the Power/Mode button for 1.5 seconds to power the Osmo Mobile 2 on/off. With the Osmo Mobile 2 powered off, press the Power/Mode button once to check the battery level.
  • Page 9 2. Battery Level Indicators With the Osmo Mobile 2 powered off, press the Power/Mode button once to check the battery level. Battery Level Indicators : LED is on. : LED is blinking. : LED is off. LED1 LED2 LED3 Battery Level*...
  • Page 10 Connect the USB port to your mobile phone using a standard Micro USB cable. If the Osmo Mobile 2 is powered on charging will start. If the Osmo Mobile 2 is powered off press the Power/Mode button once to start charging.
  • Page 11: Operation Modes

    Upright mode can be used without any user input. In this mode, press the Power/Mode button twice quickly to center the mobile phone. Underslung Mode Holding the Osmo Mobile 2 upside down will cause it to enter Underslung mode, in which the mobile phone can easily capture images from a lower position. ©...
  • Page 12 Portrait Mode Rotate the Osmo Mobile 2 90 degrees to the left or right to go from Upright mode to Portrait mode. ActiveTrack is disabled when using Portrait mode.
  • Page 13: Dji Go App

    DJI GO 3. Lanuch the DJI GO app. If you are using the Osmo Mobile 2 for the first time, follow the on-screen instructions to activate it. You will need to log in to your DJI account through an Internet connection.
  • Page 14: Key Pages

    Key Pages Equipment > Camera 1. Connection Status Indicates the status of the connection between the DJI GO app and the Osmo Mobile 2. 2. Photo/Video Switch Slide to switch between photo and video modes. 3. Photo/Video Modes Current Photo Mode Single shot, 2s, 5s, or 10s intervals, or HDR (not available on some Android mobile devices).
  • Page 15 Auto Calibration Reduces drift caused by nearby magnetic interference or human error. Do not touch the gimbal and hold the Osmo Mobile 2 still and upright during calibration. With a mobile phone mounted vertically auto calibration is not supported. Joystick Control Direction Tilt and pan axis can be controlled simultaneously by setting the Joystick control direction to Free.
  • Page 16 Once you log in with a DJI account you are be able to conveniently upload and share your creations. The saved photos and videos can be uploaded to Skypixel (www.skypixel.com) and shared on social networks such as Facebook, Twitter, WeChat Moments, and Sina Weibo.
  • Page 17: Updating The Firmware

    Ensure that the battery has at least 30% charge before starting an update. Connect the Osmo Mobile 2 to your mobile device and then launch the DJI GO app. You will be reminded if a new firmware update is available. To start updating, connect your mobile device to the Internet and follow the on-screen instructions.
  • Page 18: Specifications

    < 1 dBm Battery Type 18650 LiPo Capacity 2600 mAh Energy 18 Wh Voltage 7.2 V Charging Temperature 41° to 104° F (5° to 40° C) Operating Temperature 32° to 104° F (0° to 40° C) © 2018 DJI All Rights Reserved.
  • Page 19 This content is subject to change. Download the latest version from https://www.dji.com/osmo-mobile-2 If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. OSMO is a trademark of DJI. Copyright © 2018 DJI All Rights Reserved.
