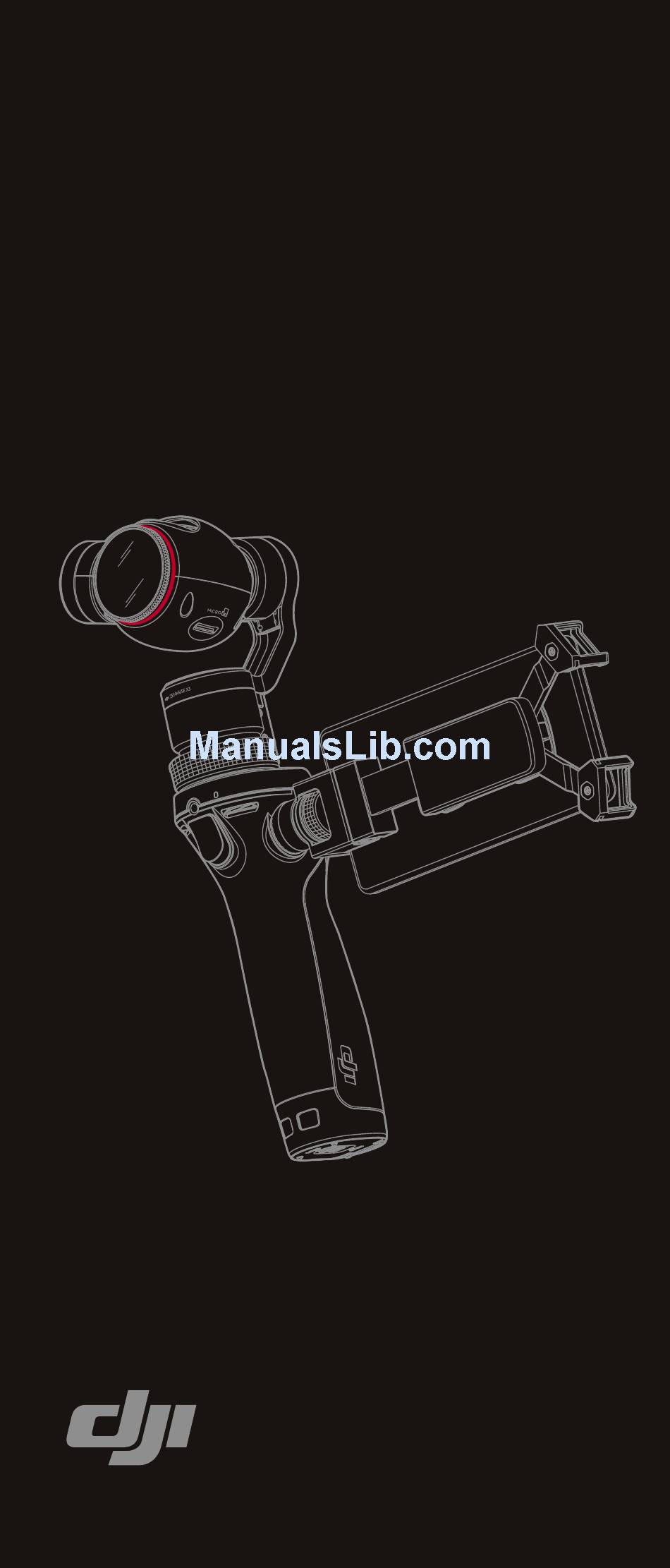

- Page 1 OSMO Quick Start Guide V1.0...
-
Page 2: Product Overview And Parts
Overview The Osmo is a professional handheld gimbal that combines mobility and stability in one device. Its camera shoots sharp 12MP still photos and stable video at up to 4K. Your mobile device can be mounted on the side of the handle and display a live feed through the high-speed WiFi video link. - Page 3 15 Air Vents 16 UV Filter 17 Micro SD Card Slot 18 Battery Cover 19 Lanyard Hole 20 Rosette Mount 21 Trigger 22 External Microphone Input 23 Built-in Microphone...
-
Page 4: Specifications
Specifications Handle ● Dimensions 2.4×1.9×6.4 inches ( 61.8×48.2×161.5 mm ) Weight ( including battery ) 201 g Gimbal ● Model Zenmuse X3 Weight 221 g Output Power (with camera) Static: 9 W; Dynamic: 11 W Angular Vibration Range ±0.03° Mount Detachable Tilt: - 35°... -
Page 5: Optional Accessories
14° to 122° F ( -10° to 50° C ) Operating Temperature Battery Charger ● SOY015A - 1260120 Model 100 - 240 V; 50/60 Hz Input Output 12.6 V; 1.2 A Optional Accessories Tripod Extension Rod Vehicle Mount Bike Mount Visit the DJI Online Store for more information: http://store.dji.com... -
Page 6: Install Dji Go App
1. Install the DJI GO App Search for ‘DJI GO’ on the App Store or Google Play, and install the app on your mobile device. DJI GO supports iOS 8.0 (or later) ● or Android 4.1.2 (or later). 2. Prepare the Battery Fully charge the battery for the first time to activate. - Page 7 3. Mount your Mobile Device Unfold the arms Adjust the pads Place one end Place the other end Pull outwards Rotate to desired angle Ensure your mobile device is fully seated. ●...
-
Page 8: Unlock
Turn on your mobile's WiFi and OSMO_XXXXXX connect to 12341234 Default password: OSMO_XXXXXX Launch the app and tap DJI GO Enter Camera View. Activate the Osmo if you are using it for the first time. This requires an internet connection. Internet... -
Page 9: Controls
Mode. SmoothTrack Mode is enabled automatically ● to smooth out jerky movements. The Osmo will beep slowly if the gimbal is ● locked after it is turned on. This means the camera is working normally but the gimbal is shut off. - Page 10 OSMO www.dji.com...
