Summary of Contents for Electrolux Professional Compass Pro EED-618

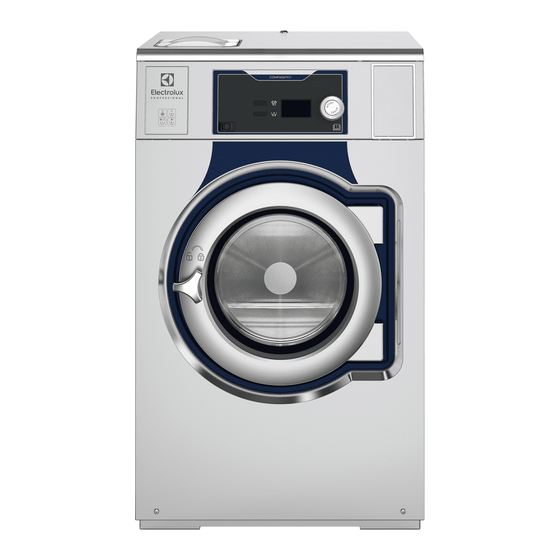

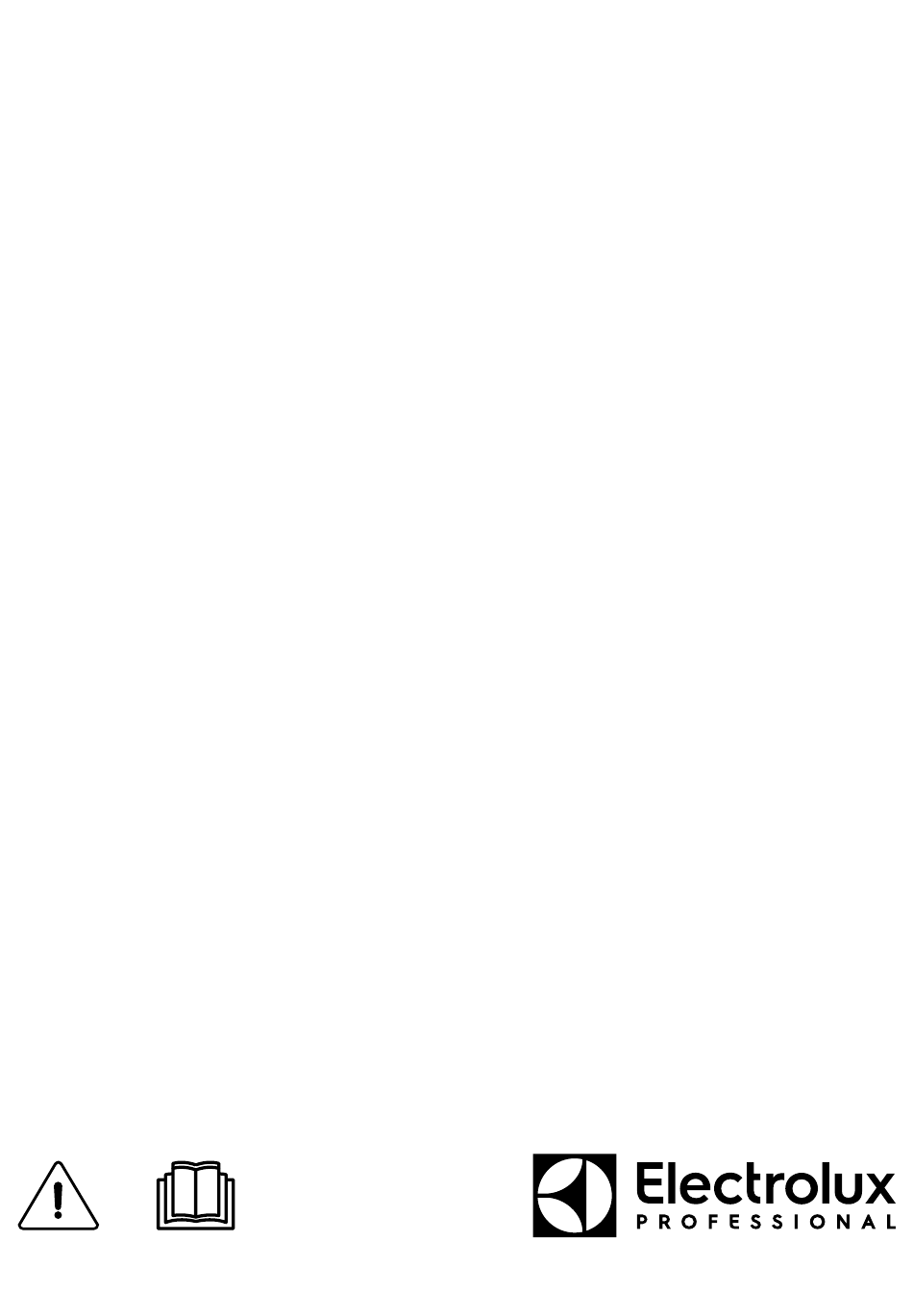

- Page 1 User Manual Washer extractor EED–618, EED–620, EED–625, EED–630, EED–645, EED–665, EED–685 Compass Pro Type W3..438917939/US 2024.05.02...
- Page 3 Safety WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF YOUR MACHINE. MAKE CERTAIN TO KEEP THIS MANUAL IN A SECURE PLACE FOR FUTURE REFERENCE. PLEASE ENTER THE FOLLOWING INFORMATION AS IT APPEARS ON THE MACHINE(S) DATA PLATE(S).
-
Page 4: Important Safety Instructions
Safety IMPORTANT SAFETY INSTRUCTIONS WARNING - To reduce the risk of fire, electric shock, or injury to persons when using your appliance, including the following: 1. Read all instructions before using the appliance. 2. This machine must be securely bolted to an uncovered concrete floor. 3. - Page 5 Safety NOTICE TO: OWNERS, OPERATORS AND DEALERS IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY. TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLOWING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS. Prior to operation of the machine, check to make certain that all operating instructions and warning signs are affixed to the machine and legible.
-
Page 6: Notice To Installer
Improper fastening of this machine to its foundation, inferior foundation materials, an undersized foundation, the use of fabricated steel bases not provided by Electrolux Professional or its approved supplier(s), the use of an improper type, number, or size of mounting bolts, or failure to use proper hardware on mounting bolts may result in damage to the machine that will not be covered by the manufacturer's warranty. -
Page 7: Table Of Contents
Contents Contents 1 Safety Precautions ..........................9 General safety information......................9 Commercial use only........................9 Copyright ..........................10 Symbols..........................10 2 Warranty terms and exclusions......................11 3 Program description ..........................12 General...........................12 Program description .........................12 Option buttons .........................13 4 Handling ............................14 Load ............................14 Detergent ..........................14 How to start the machine ......................16 4.3.1 OPL ..........................16 4.3.2 Coin operated machines ....................17 Additional functions........................18... -
Page 9: Safety Precautions
User Manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • Only use detergent intended for water-wash of textiles. Never use dry cleaning agents. •... -
Page 10: Copyright
User Manual 1.3 Copyright This manual is intended solely for consultation by the operator and can only be given to third parties with the permis- sion of Electrolux Professional AB company. 1.4 Symbols Caution Caution, high voltage Read the instructions before using the machine... -
Page 11: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 12: Program Description
User Manual 3 Program description 3.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended — different segments use different programs. It is recommended to follow the care labelling of the garment as far as possible. 3.2 Program description The following table shows some examples of available programs: Program... -
Page 13: Option Buttons
User Manual 3.3 Option buttons The following table shows the available options and a short description of those: Option button Description HEAVY SOIL Long wash for heavy soiled textiles. One rinse is added. EXTRA RINSE... -
Page 14: Handling
User Manual 4 Handling 4.1 Load Load the goods into the machine according to recommendations and close the door. Recommended maximum load EED-618 8 kg / 18 lbs EED-620 9 kg / 20 lbs EED-625 11 kg / 25 lbs EED-630 14 kg / 30 lbs EED-645... - Page 15 User Manual Note! Make sure no detergent spills out on the floor causing risk of slipping and falling. Note! If bleach is used, be careful when handling liquid bleach. Take care when opening the detergent container and when filling the compartment with liquid bleach. Avoid splashing due to the risk of getting liquid bleach in your eyes.
-
Page 16: How To Start The Machine
User Manual 4.3 How to start the machine This manual cover different types of machine models. Check the panel on your machine and follow the description for your type of machine. 4.3.1 Select program by turning the control knob. Example of programs COLD AWS WARM AWS HOT AWS... -
Page 17: Coin Operated Machines
User Manual 4.3.2 Coin operated machines Select program by turning the control knob. It is also possible to select options. Note! Some programs do not allow options. Example of programs Options COLD HEAVY SOIL WARM QUICK WASH DELICATE EXTRA RINSE Insert correct amount of coins to start the machine. -
Page 18: Additional Functions
User Manual 4.4 Additional functions There is a menu with additional functions available for selection after start. When pressing the control knob / start but- ton (on machines without control knob) the menu will appear on the display. Select from the menu by turning the control knob / pressing the temperature button/-s and press the control knob / start button to activate. -
Page 19: When Program Has Ended
User Manual Auto restarts Select AUTO RESTARTS and activate. Set the number of automatic restarts that the machine will perform of the selected program. Press the control knob / start button to confirm the settings. 4.5 When program has ended Leave the door open when ready. -
Page 20: Timer
User Manual 5 Timer The timer is used to start a part of the program (for example the last rinse of the udder cloth program) after pause on a pre-set time. The time can be set for all days or for selected days. To program the timer you need to activate the machines service mode. -
Page 21: Error Codes
User Manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 11:1 NO WATER Water level acknowledgement not reached in time. -
Page 22: Maintenance
User Manual 7 Maintenance 7.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Note! Lack of maintenance may deteriorate the performance of the machine and may cause damage to components. -
Page 23: Drain
User Manual 7.5 Drain At regular basis, check the drain connection, joints in the drain pipe etc and remove any lint and dust. Clean with for example a small brush. When remounting, make sure the connections are tight. fig.6998A Note! Contact qualified service personnel to perform maintenance on the internal drain and hoses once a year. -
Page 24: Cleaning The Mop Elements
User Manual 7.7 Cleaning the mop elements (Only valid for mop machines). At regular basis, check the mop elements and clean if necessary. In the inner drum, there is one or two core covers to the heating elements depending on the size of the machine. The front cover is located directly above the drain and the other is in front of the element retainer. -
Page 25: Disposal Information
User Manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 28 www.electroluxprofessional.com...
