Summary of Contents for Electrolux Professional Clean Room WB6 70

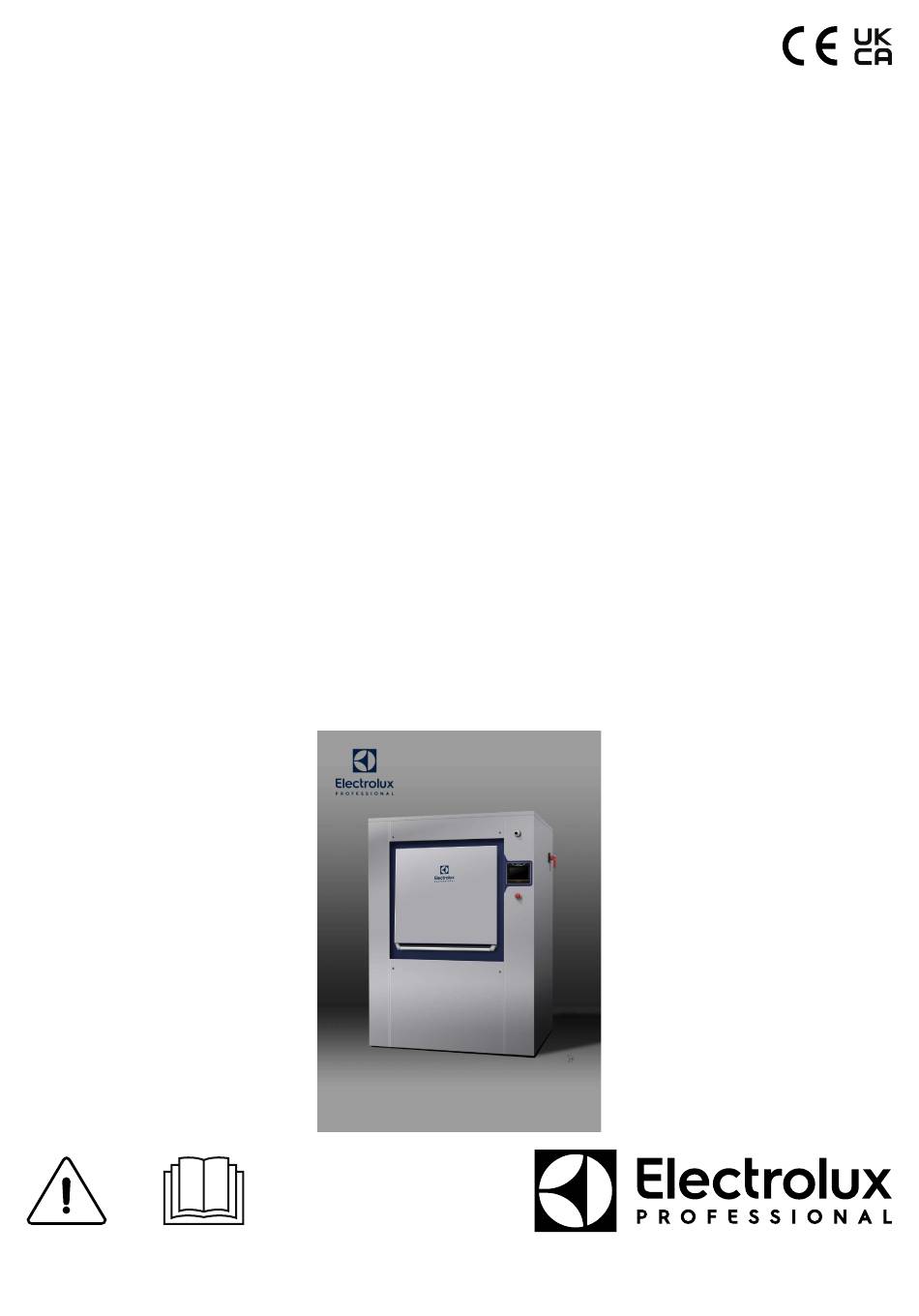

- Page 1 Installation manual Washer-extractors WB6 70- WB6 90 – WB6 110 Clean Room 01201228/EN original instructions...
-
Page 3: Table Of Contents
Contents Contents 1 Safety precautions..........................5 Symbols..........................11 Personal protection equipment....................12 Preliminary instructions ......................12 Data plate explanation......................14 Warranty terms and exclusions ....................17 2 Environmental information .........................19 3 Locking and tagging procedure......................20 4 Handling ............................21 Lifting with a fork-lift truck ......................21 Lifting with handlings straps ......................21 5 Packing-Weight..........................22 Packing...........................22 Weight ............................23... - Page 4 Contents The manufacturer reserves the right to make changes to design and component specifications.
-
Page 5: Safety Precautions
Installation manual 1 Safety precautions CAUTION READ THIS ENTIRE MANUAL BEFORE USAGE This machine should be installed in conformance to the health and safety regulations, and only used in a sufficiently aerated area. Check the instructions before installing or using the machine. - Page 6 Installation manual CAUTION Before any use, to retire all the parts needed to install the machine put in the drum , please follow these actions 1. connect compressed air. 2. Remove the side housing cabinet. 3. Push on the orange button of the D9/D10 distribution unit in the electric cabinet. (see drawing below) 4.
- Page 7 Installation manual CAUTION Users must have learnt how the machine operates. This device must not be installed in places accessible to the public. The machine is only intended for water-wash use. Do not allow minors to use the machine. Do not hose down the machine with water. Only use detergent intended for water-wash of textiles Never use dry cleaning agents.
- Page 8 Installation manual IMPORTANT The identification plate is located on the right side near the main switch. Never use the main switch as an emergency stop. Use it only when the machine does not work in progress. Instead of that, use the emergency stop buttons in both sides of the machine.
- Page 9 Installation manual The machines comply with the European Directive EMC (Electromagnetic Compatibil- ity). They have been tested in laboratory and approved as such. It is so prohibited to add wires or nonshielded electric cables in the cabinets, strands or cables' troughs. Considering that the volume of the outer drum is superior to 150 litres, the standard kept for the electric part is the IN 60204.
- Page 10 Installation manual THINK OF THE ENVIRONMENT! The use and handling of chemical products such as detergent, chlorine, acids, desca- ling agents, etc may create hazards for health and environment ; the following precau- tions should be taken: • Do not breathe the dusts or steam; •...
-
Page 11: Symbols
Installation manual 1.1 Symbols Caution. Caution, presence of dangerous current. Read the instructions before using the machine. -
Page 12: Personal Protection Equipment
Installation manual 1.2 Personal protection equipment Given below is a summary table of the Personal Protection Equipment (PPE) to be used during the various phases of the machine’s service life. Phase Protection Safety Gloves Glasses Ear protectors Mask Safety helmet garments footwear Transport... - Page 13 Installation manual WARNING Risk of the upper door being raised quickly on loading WARNING After the installation, Send back the commissionning form ,signed document, to Elec- troluxProfessional to validate the warrantly of the product.
-
Page 14: Data Plate Explanation
Installation manual 1.4 Data plate explanation In this chapter, you will find the explanation of the different data input on the data plate of your product. • Commercial name : Usual name of your product ( i.e. WB6–70). • Type : Type of your product (you have the same on the Declaration of Conformity CE if delivered with CE certification). -
Page 15: Electric Heating
Installation manual Electric heating : • P.Max : maximum power installed of your product • Power of the motorization in kW and its isolation class (F) . • Heating power in W . - Page 16 Installation manual Steam heating : Left side • P.Max : maximum power installed of your product • Power of the motorization in kW and its isolation class (F) . • Heating power in W . Right side • P.Maxi. (kPa) maximum pressure For additional information, do not hesitate to consult with our quality department.
-
Page 17: Warranty Terms And Exclusions
Installation manual 1.5 Warranty terms and exclusions If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and subject to the product being installed and used for the purposes as designed, and as described within the appropriate equipment documentation. Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with user and maintenance documentation made available in paper or electronic format. - Page 18 Installation manual Check on website the list of authorized customer care.
-
Page 19: Environmental Information
Installation manual 2 Environmental information Concerned by providing the end user with useful and necessary environmental information, we wish to precise: • Data about energetic consumptions, wastes (atmospheric and liquid) and sound level are indicated in the para- graph «Technical characteristics». •... -
Page 20: Locking And Tagging Procedure
Installation manual 3 Locking and tagging procedure A red insert at the beginning of this instruction handbook schematically shows the locking and tagging procedure de- scribed below. If you wish, you can detach this insert and display it close to the machine to remind maintenance per- sonnel of the safety instructions. -
Page 21: Handling
Installation manual 4 Handling Important It is obligatory that all these operations are undertaken by handling specialists. Before any handling, check that the four transport locks fitted are still in place and well-tightened. To do so, remove the side casings and check presence of four locks (B) and the down casings for the four locks (A). Caution To handle the machine, you must imperatively reassemble the transport bridles and dis engage the load cells (proceed in reverse order or “remove of the transport locks fitted”... -
Page 22: Packing-Weight
Installation manual Caution Make sure to place the straps correctly to avoid any bending of parts of the machine. Caution In order to avoid any bending of casings, you should never climb and stand on top of the machine. 5 Packing-Weight 5.1 Packing Packing dimensions in mm/in Size A... -
Page 23: Weight
Installation manual 5.2 Weight Weight in kg/lb (machine + crate)* Electrical heating Steam/ Thermal fluid heating Washer extractor type WB6 70 2900 / 6395 2900 / 6395 Washer extractor type WB6 90 3100 / 6836 3100 / 6836 Washer extractor type WB6 110 3280 / 7233 3280 / 7233 * Precise weight depends on accessories fitted. -
Page 24: Connections Wb6 Pullman Clean Room
Installation manual 6.2 Connections WB6 Pullman Clean room: Water Units WB6–70 WB6–90 WB6–110 Water valves connection mm-BSP DN32–1”1/4″ DN32–1”1/4″ DN32–1”1/4″ Capacity at 250 kPa l/min Functioning limits for water valve 50–300 50–300 50–300 Water consumption for a wash program 1149 Drain Units WB6–70... -
Page 25: Dimensions - Wb6-70 , Wb6-90, Wb6-110 Clean Room
Installation manual Heating Units WB6–70 WB6–90 WB6–110 Installed heating power, electric heating Electric consumption for a standardized cycle, electric 11.62 14.67 17.71 heating Electric consumption for a standardized cycle, indirect 1.86 steam heating Floor load Units WB6–70 WB6–90 WB6–110 Max transmitted floor load 3600 4100 4450... -
Page 26: Sound Levels
Installation manual Description Description Number Number Control panel Main switch to connect main cable Loading door Electric cable Unloading door Liquid detergents connection Bath inlet (water connection + detergents) Rubber plate Indirect steam inlet Waste water collector Compressed air inlet Indirect steam return Connectivity 7a et 7b... - Page 27 Installation manual According to test code EN50571 : 2013 anex CC,the sound power level at extraction and during washing are accord- ing to the table: Airbone noise emitted by the machine (values established from measurements made on machine at points A,B,C, and D) Weighted sound Washer 700 (Without insulation)
-
Page 28: Working Place Lighting
Installation manual 8 Working place lighting The lighting should be designed so as to avoid eye strain for the operator ; it should be uniform without any glare, and should be sufficient to detect any hazards. The average lighting value on the working place recommended by the clothing industry for inspecting linen is 500 lux. Whenever possible, the working place should be illuminated by daylight. -
Page 29: Mechanical Installation
Installation manual 10 Mechanical installation Depending on its destination, the washer extractor is delivered bare or may be placed on a transport pallet and/or packed with plastic film. In some cases, it may be delivered in a crate, or in maritime packing (wood box). 10.1 Unpacking Take off the plastic film or remove the four wood socles with a spanner.. -
Page 30: Instructions For Securing The Machine On The Ground
Installation manual Moving machines sealed with the shock absorber plates • Moving machines sealed with the shock absorber plates 10.4 Instructions for securing the machine on the ground Caution Only for machines without weighing equipment. Place the machine on a perfectly even surface and horizontal. Control this using a water level (see drawing). - Page 31 Installation manual Mark out the drill holes for the securing dowels and drill them so as to insert the 4 dowels , they will secure the ma- chine to the floor. Put the machine in position and secure it with the dowels without tighten. Bolsters: G Water level: N...
-
Page 32: Setting The Shock Apsorber Plates
Installation manual 10.5 Setting the shock apsorber plates Place each plate (G) at its respective location (see drawing) and heave successively each bearing of the machine. Verify the levels and place if necessary the wedges (C) between the absorber plate and the soles to stabilize the machine. -
Page 33: Barrier Partition
Installation manual Keep the transport locks fitted with their screws and bolts to be able to assemble them again in case you would need to lift the machine. Important Never handling the machine without the transport locks. 12 Barrier partition Leave at least 1 m (40") (according to the recommendation in standard EN 60204) between the machine, a wall or any other machine at the sides. - Page 34 Installation manual • The barrier partition (O) shall be built before the installation of the machine. • Centre and align the washer-extractor with the frame (P) 60x100mm (2x4”) maximum (provided by customer).. • Place the rubber seal (R) inside the aluminium extruded section (S). •...
-
Page 35: Drain Connection
Installation manual 13 Drain connection The machine's exhaust sleeve outside diameter is of 110 mm (4.33″). It is located underneath the machine. The waste water collector diameter 200 mm (7.87″) (manufactured by customer) should have a 3 cm/m (3 %) slope and resist to a temperature of 90 °C (194 °F). -
Page 36: Connection Of External Water Supply
Installation manual Barrier washer 14.1 Connection of external water supply Electrical installation must be carried out by an authorized personnel All external equipment which is connected to the machine must be CE/EMC approved and connected using an approved shielded cable. Connect the electrical control of the water inlet valve on the J238 terminal of the A2 I/O card in the electric cabinet of the machine. -
Page 37: Liquid Detergents Connection
Installation manual 15 Liquid detergents connection The machine is equiped with a connection for the use of external liquid detergents. If you do not use the detergent box, please use the cap delivered with the machine in oder to avoid vapour from steaming out through the opening of the bow downpipe. -
Page 38: Connection Scheme Of Liquid Detergents
Installation manual 15.1 Connection scheme of liquid detergents We advise you to use one of the two systems shown hereby to connect your liquid detergents. Single inlet dose controller with a compulsory rinsing device. 3 way valve Retention tank Pump Scoops + Rinsing Liquid detergents Water... -
Page 39: Electrical Liquid Detergents' Connection
Installation manual 15.2 Electrical liquid detergents' connection Electrical installation must be carried out by an authorized personnel. The two IO22 cards allows to connect from 1 to 16 electrovalves of liquid detergents. The cards are situated on the middle of the electric box. Carry the connection cables by the partition crossing and the cable through of the machine. -
Page 40: Indirect Steam Heating
Installation manual 16 Indirect steam heating Steam and condensate connections The washer extractor is fitted with 2 DN 20 flanges, 2 mating flanges DN 20 and 2 seals for the indirect steam heating. Steam connection The customer must install a line purge, a manually closing valve with handwheel lockable in off position (do not use a 1/4 turn valve) and a filter on the supply side of the washer-extractor. - Page 41 Installation manual D1443...
-
Page 42: Air Vent Connection For Clean Room Installation
Installation manual 17.1 Air vent connection for clean room installation The air vent of the outer drum opens on the top of the machines. You may connect according to one of the 2 alterna- tives we recommend below. It is important that the machine is put at atmospheric pressure as the levelling of water depends on it. Alternative 1 : Pressurized HEPA (High Efficiency Particulate Air) filtered air When the machine drains water, clean air must go in... - Page 43 Installation manual When the machine fills with water, dirty air goes out and must trapped in the HEPA filter. The type of HEPA to be used must be so that it works both ways and traps the particles inside. It must not release the particles when the machine drains water.
-
Page 44: Note About The A.c. Power
Installation manual 18 Note about the A.C. power According to the EN 60204-1:2018 standard, the machine is provided for A.C. supplies corresponding to the ex- tracted characteristics below : 4.3.2 A.C. supplies Voltage: Steady state voltage: from 0.9 to 1.1 of nominal voltage. Frequency: from 0.99 to 1.01 of nominal frequency continuously. - Page 45 Installation manual 35 °C 1.08 40 °C 1.00 45 °C 0.91 50 °C 0.82 55 °C 0.71 60 °C 0.58 Table 3 (correction factors for different cable insulating materials) Insulating material Max. Working tempera- Correction factor ture range 70°C (158 °F) 1.00 Natural or Synthetic Rubber 760°C (140 °F...
-
Page 46: Electricity Power Supply
Installation manual Table 4 (B2, C and correction factors for cable grouping) Number of cables Seated in Cable Duct Wall fixing or Cable trough Cable tray 1.00 1.00 1.00 0.80 0.85 0.87 0.65 0.75 0.78 0.57 0.72 0.75 0.50 0.70 0.73 The total current included for using Table 1 should be the maximum rated current for the machine divided by the product of the different correction factors. - Page 47 Installation manual The use of power electronics (converter or filter for example) may lead to unexpected release of breakers with 30 mA differential current device. Therefore a Type B residual differential protection system with reinforced immunity of 300 mA in accordance with standard NFC 15100 must be used for our washing machines.
-
Page 48: Compressed Air Connection
Installation manual Caution In case of a machine with integrated weighing, you must use a flexible power supply cable to connect the machine. Machine Connection cable Heating Supply Voltage Rated Intensity Rated Power Protection type section 4 x 35 mm² / AWG Electric 400 V / 3 / 50–60 Hz 65.7 kW... -
Page 49: Compressed Air Standard Iso 8573-1
Installation manual • Consumption 50 l/h. Important To avoid too big head losses, the compressed air supply pipe should be bigger in diameter than the coupling di- ameter (DN 8 for example); in this case, put a 6/8-8/10 adapter. 21.1 Compressed air standard ISO 8573–1 This chapter explains the required by our product for the air compressed quality, from the standard EN ISO 8573-1. - Page 50 Installation manual Important To ensure the proper functioning of pneumatic devices (cylinders, distributors, clamps, silencers) of our products, the following air quality is recommended: Particles = class 7 Water = class 4 Oil = class 4 Recommended air quality class [7;4;4], this means that: For dust, we tolerate between 5 and 10 mg of dust per cubic meter of compressed air.
-
Page 51: Connectivity Of The Barrier Washer
Harness RS232 Fuse IOT x 1 NETWORK OVERVIEW : To be able to use Electrolux Professional provided Connectivity and Management Software Tools, ELS network should be established. The Machine wireless board is a part of ELS Network, it should be installed on each machine with Compass Pro or Clarus Vibe control system and it be connected to the CPU RS232 port via a quick connection port behind or on top of the machine. -
Page 52: Process To Follow With A Pre Equiped Washer Machine
Installation manual < _ < _ fig.X02831A 22.1 Process to follow with a pre equiped washer machine Barrier washing machine: Installing the kit on a pre-equipped barrier washing machine. The connectivity box must be installed on the upper part of the machine on the water inlet side (on a small cap) as shown in the instruction 438907725 To do this, follow the following procedure: 1/ Remove the 4 yellow self-adhesive pads for fixing the box. -
Page 53: Connectivity Of The Barrier Washer With After Sales Kit
Installation manual 22.2 Connectivity of the barrier washer with after sales kit 22.2.1 Contents of the kit fig.X03239 490625001 Plate adapter x 1 471836901 Screw M4x11 x 2 490625501 Drilling fixture (paper) x 1 762910205 Cable tie x 4 413327497 Harness RS232 Machine to IOT x 1 22.2.2 Required tools fig.X03515... -
Page 54: 3Procedure To Follow To Connect The Barrier Washer With After Sales Kit
Installation manual 22.2.3 Procedure to follow to connect the barrier washer with after sales kit Caution Every barrier washer L6000 can be connectable to keep some datas of the production made by this product. Either the machine comes with the connectivity kit or you can order it to make your barrier washer connected. Process to install connectivity kit: Caution The pictures of this procedure show a WB6 Evolution with Compass Pro, it’s the same for the WB6 Hyvolution... -
Page 55: Function Checks And Settings At The First Use
Installation manual STEP 4 : Connect the cable to the RS232 Port of Compass Pro (loading side) STEP 5 : Put back the upper casings, STEP 6 : Connect the connectivity board to the wire . Please follow the instruction 438907725 STEP 7 : Place the cover of the connectivity board. - Page 56 Installation manual Magnetic detector for tank door safety Caution Before starting the appliance, please remove the bottom guard and check that the magnetic detector is correctly aligned. For barrier machines, repeat this step on the second door. Manual operation The procedure for operating the various machine functions manually is described in the chapter "Machine operation" under the heading "Manual operation".
- Page 57 Installation manual • Check the direction of rotation of motion motor fan . (see arrow stuck on the fan) Switch off the current and shift two phases on the main switch of the machine if the fan rotates in the wrong direction.
- Page 58 Installation manual Screen 3/8 : Select segment Screen 4/8 : Program layout setting...
- Page 59 Installation manual Screen 5/8 : Daylight saving Screen 6/8 : Set date...
- Page 60 Installation manual Screen 7/8 : Set time Screen 8/8 : Wizard complete to validate the previous settings.
- Page 61 Installation manual...
-
Page 62: Explanation Of Washing Symbols
Installation manual 24 Explanation of washing symbols (ISO 3758:2005 standard) To overcome language barriers, the following are symbols used internationally to give you guidance and recommen- dations when washing different textiles. 24.1 Washing The tub symbolizes washing. Max. washing temperature Symbols Mechanical action in °C ( °F) -
Page 63: Drying
Installation manual Symbols Explanation Bleaching allowed (chlorine or oxygen). Bleaching allowed (only oxygen). Do not bleach. 24.3 Drying The circle in a square symbolizes tumble drying. Symbols Explanation Can be put in a tumble dryer. Normal temperature. Can be put in a tumble dryer. Lower temperature. - Page 64 Installation manual Mild dry cleaning with solvent of hydrocarbon. Do not dry clean. Normal water cleaning. Mild water cleaning. Very mild water cleaning.
-
Page 65: Conversion Of Measurement Units
Installation manual 25 Conversion of measurement units This following is a list of correspondences of the main frequency used units, to avoid the need to use measurement unit conversion table. 1 bar = 100 000 Pa British thermal unit 1 Btu = 1 055.06 J 1 bar = 1.019 7 kg/cm²... - Page 68 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
