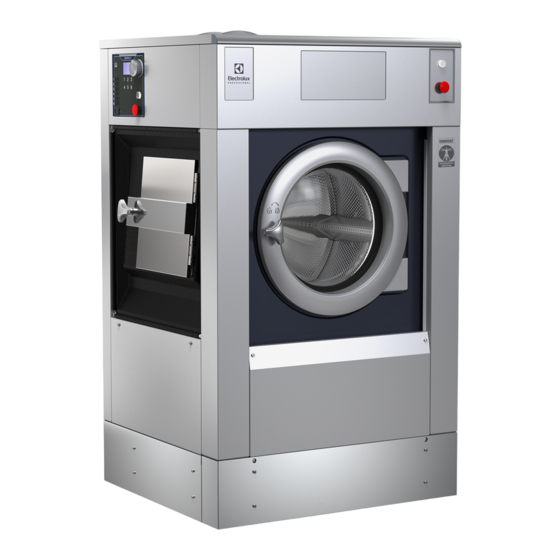

- Page 1 User manual Washer extractor WB6–13, WB6–18 Compass Pro Type W3... 438917990/EN Original instructions 2022.08.15...
-
Page 3: Table Of Contents
Contents Contents 1 Safety Precautions ..........................5 General safety information......................6 Commercial use only........................6 Symbols............................6 2 Warranty terms and exclusions......................7 3 Program description ..........................8 General.............................8 Program description ........................8 4 Handling .............................9 Load ............................9 4.1.1 Maximum load........................10 Detergent ..........................11 How to start the machine ......................11 Additional functions........................13 When program has ended ......................14 5 Timer..............................15... -
Page 5: Safety Precautions
User manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • Only use detergent intended for water-wash of textiles. Never use dry cleaning agents. •... -
Page 6: General Safety Information
User manual and breakfast type environments, areas for communal use in blocks of flats or in launderettes. 1.1 General safety information The machine is only intended for water-wash use. Do not hose down the machine with water. In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma- chine should be placed in room temperature for 24 hours before being used for the first time. -
Page 7: Warranty Terms And Exclusions
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. -
Page 8: Program Description
User manual 3 Program description 3.1 General The machine is equipped with a number of programs adapted to the range of use to which the machine is intended — different segments use different programs. The following program description is a short description of some exam- ples of programs that can be used. -
Page 9: Handling
User manual 4 Handling 4.1 Load Open the dirty side loading door. The dirty side loading door can only be opened if the clean side unloading door is closed and locked. Press the locking arm so that the inner drum can be rotated. Rotate the inner drum until the door in the inner drum is facing the opening of the dirty side loading door. -
Page 10: Maximum Load
Check that the locker is properly operating by pressing the safety latch alone. It must be free and the doors do not open. 2. Push the doors inwards without pressing the safety latch If the inner doors open, the safety latch does not work: call your Electrolux Professional service representative. Note that the machine MUST NOT be used. -
Page 11: Detergent
User manual 4.2 Detergent Add the correct amount of detergent and softener according to recommendations. fig.7556 Softener, liquid. Main wash for liquid detergent. Pre-wash, powder or liquid detergent, if option “pre-wash” has been selected. Main wash for powder detergent. 4.3 How to start the machine... - Page 12 User manual Select program by turning the control knob or select program with the quick selection buttons (if some of the buttons are programmed with this function). It is also possible to select options (if some of the buttons are programmed with this function). Note! Some programs do not allow options.
-
Page 13: Additional Functions
User manual 4.4 Additional functions There is a menu with additional functions available for selection after start. When pressing the control knob / start but- ton (on machines without control knob) the menu will appear on the display. Select from the menu by turning the control knob / pressing the temperature button/-s and press the control knob / start button to activate. -
Page 14: When Program Has Ended
User manual Auto restarts Select AUTO RESTARTS and activate. Set the number of automatic restarts that the machine will perform of the selected program. Press the control knob / start button to confirm the settings. 4.5 When program has ended When a program has finished, the indicating lamp on the clean side will show when the clean side unloading door can be opened. -
Page 15: Timer
User manual 5 Timer The timer is used to start a part of the program (for example the last rinse of the udder cloth program) after pause on a pre-set time. The time can be set for all days or for selected days. To program the timer you need to activate the machines service mode. -
Page 16: Error Codes
User manual 6 Error codes A fault in the program or in the machine is indicated by an error code on the display. Some of these error codes can be solved easily without contacting service personnel. Error Text Cause/Action code 11:1 NO WATER Water level acknowledgement not reached in time. -
Page 17: Maintenance
User manual 7 Maintenance 7.1 General It is the responsibility of the owner of the machine/the laundry manager to make sure that maintenance is periodically performed. Note! Lack of maintenance may deteriorate the performance of the machine and may cause damage to components. -
Page 18: Drain
User manual 7.6 Drain At regular basis, check the drain connection, joints in the drain pipe etc and remove any lint and dust. Clean with for example a small brush. When remounting, make sure the connections are tight. fig.6998A Note! Contact qualified service personnel to perform maintenance on the internal drain and hoses once a year. -
Page 19: Disposal Information
User manual 8 Disposal information 8.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g. - Page 20 Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
