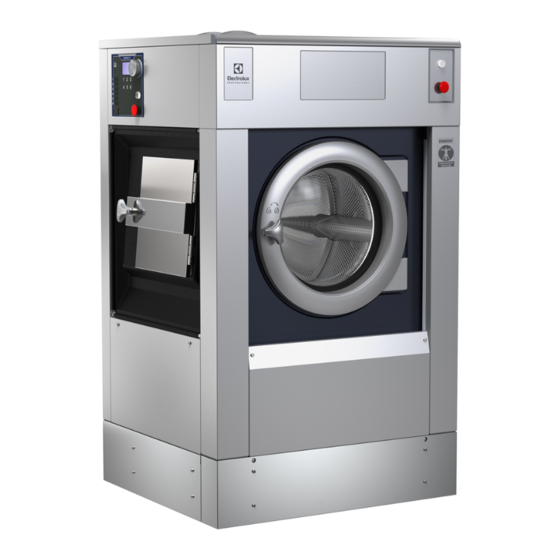

Installation manual 1 Safety Precautions • Servicing shall be carried out only by authorized personnel. • Only authorized spare parts, accessories and consumables shall be used. • Only use detergent intended for water-wash of textiles. Never use dry cleaning agents. •...
Installation manual and breakfast type environments, areas for communal use in blocks of flats or in launderettes. 1.1 General safety information The machine is only intended for water-wash use. Do not hose down the machine with water. In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma- chine should be placed in room temperature for 24 hours before being used for the first time.
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec- tronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time.
Installation manual 3 Technical data 3.1 Drawing fig.6813E Operating panel Detergent container Liquid detergent supply Electrical connection Cold water Hot water Cold/hot water Steam connection Drain Door opening, loading side: WB6–13: 280 x 280 mm, WB6–18: 320 x 280 mm Door opening, unloading side: WB6–13: ⌀...
Installation manual 3.2 Barrier partition The barrier partition (3) shall be built before the installation of the machine. Centre and align the machine with the barrier partition (3). Mount the rubber seal (2) in the aluminium section (1). Fasten the aluminium section (1) with screws in the barrier partition (3). If machines are to be installed in an existing wall thicker than 100 mm please contact authorized service personnel.
Installation manual 3.3 Technical data WB6–13 WB6–18 Weight, net Drum volume litres Drum diameter Drum speed during wash Drum speed during extraction G-factor, max. Heating: Electricity Heating: Steam Heating: Hot water Frequency of the dynamic force 15.2 14.3 Floor load at max extraction 3.4±0.5 2.9±1.0 A-weighted emission sound pressure level at working...
Installation manual 4 Setup 4.1 Unpacking Note! Two persons are recommended for the unpacking. Remove the side panels. Remove the transport supports. Save the transport supports if the machine needs to be moved in the future. Note! Once the transport supports have been removed, handle the machine carefully to avoid damage to the sus- pension components.
Installation manual 4.2 Unpacking for machines delivered on a base The machine is delivered complete with expander bolts, supporting feet etc. The machine is delivered bolted onto the transport pallet and packed in a crate or box. The machine is also delivered with cover panels that shall be used when the machine is delivered on a base. The cover panels and all additional equipment are placed at the rear of the machine (A).
Page 13
Installation manual Remove the front and rear panel. Remove the bolts between the machine and pallet. There is one to the right in the front of the machine and another diagonally opposed to it, at the back of the machine. fig.7651 Mount the supporting feet.
Page 14
Installation manual Mount the cover panels Mount the screws and the plastic rings (delivered in a plastic bag) on the panels before mounting them on the machine. fig.W00218 The screws on the side panels (A) shall not be tightened all the way in. Make sure the machine is in level before mounting the front cover panel.
Page 15
Installation manual The holes on the rear cover panel shall be placed on the screws (A) on the side cover panels and downwards in the holes. Tighten the screws. fig.6940 Place the machine on its final position.
Installation manual 4.3 Recycling instruction for packaging fig.X02422 Fig. Description Code Type Wrapping film LDPE 4 Plastics Screw FE 40 Steel Packaging FOR 50 Wood Pallet FOR 50 Wood Screw FE 40 Steel Washer FE 40 Steel Plastic bag PET 1 Plastics...
Installation manual 4.4 Siting Install the machine close to a floor drain or open drain. We strongly recommend to drain under the machine for hygiene and safety reasons. Make sure the drain connection is tight. Otherwise the warm steam from the drainage water can damage the components The machine should be positioned so that there is plenty of room for working, both for the user and service personnel.
Installation manual 4.5 Mechanical installation If the machine is not to be mounted on a base the machine must be fastened to the floor. The table shows the correct drilling points. Mark and drill two holes (⌀ 10 mm) about 50 mm deep in the positions shown. fig.6943 WB6–13 Standard...
Installation manual 5 Water connection All water intake connections to the machine should be fitted with manual shut-off valves and filters, to facilitate instal- lation and servicing. Water pipes and hoses should be flushed clean before installation. The machine shall be connected with new water hoses. Re-used water hoses must not be used. Hoses are to be of an approved type and grade and comply with IEC 61770.
Installation manual 6 Connection of external dosing systems 6.1 Connection of the hoses The machine is prepared for connection of external dosing systems or water re-use systems etc. The connections are closed at delivery. Open any of the connections that shall be used by drilling a hole where the hoses shall be connected.
Installation manual 6.2.1 Machine with connectors Connect the external dosing system to connections A and B on the machine. Connect the signal cable to B and the power supply to A. For Efficient dosing system the cables are delivered with the machine. Connect the power supply cable to the machine A and the other end of the cable together with the cable from Effi- cient Dosing in a connection box or with plug and receptacle.
Installation manual 6.2.2 Machine without connectors Connect the external dosing system to the I/O board, which is located to the right of the incoming power supply. The I/O board has edge connectors for connecting external dosing systems. Edge connectors on the I/O board can be loosened for connecting cables. fig.6572 11 = N 18 = Program run...
Installation manual 6.2.3 Outputs Connect the power supply (e.g. 24V DC) for the external liquid supplies to 9 and 10. If an internal power supply (from the machine) is being used, it can be taken from 1 (N) and connected to 9 and from 2 (L) and connected to 10. Max load on the outputs 0.5 A.
Installation manual Compartment 1 Pre-wash Compartment 2, 4 Main wash Compartment 3 Last rinse Signal 1 Pre-wash Signal 2 Main wash Signal 3 Softener, last rinse Signal 5 Bleach, whitening 6.2.4 Inputs The signal level can be 5-24V DC/AC or 100- 240V AC. For 5-24V, the signal reference is connected to 3 and for 100-240V to 4.
Installation manual 7 Drain connection Connect a 75 mm pipe or rubber hose to the machine’s drain pipe, ensuring a downward flow from the machine. Avoid sharp bends which may prevent proper draining. Two ways of drain are available for the machines: Drain under the machine (A) or drain behind the machine (B). Drain under the machine Drain behind the machine ⌀...
Installation manual 8 Electrical connection 8.1 Electrical installation The electrical installation may only be carried out by qualified personnel. Machines with frequency-controlled motors can be incompatible with certain types of earth leakage circuit break- er. It is important to know that the machines are designed to provide a high level of personal safety, which is why items of external equipment such as earth leakage circuit breakers are not necessary but is recommended.
Installation manual 8.3 Machine connection 8.3.1 Single-phase connection Connect the earth and other two wires as shown. 1NAC 8.3.2 Three-phase connection Connect the earth, neutral and phase wires as shown. L2 L3 3N AC...
Installation manual 8.4 Functions for I/O-cards The electrical schematic can be one of the following: 8.4.1 Outputs for detergent signals and inputs for pause signals, "empty" signal (2D) fig.6314B...
Installation manual 9 Steam connection Inlet pipes connected to the machine must be equipped with a manual shut-off valve to facilitate installation and servicing. The connection hose must be of type ISO/1307- 1983 or equivalent. Connection size at filter:DN 15 (BSP 1/2"). Demount the top panel (A).
Page 30
Installation manual Mount the hose with wires between steam valve and machine. Connect wires in the steam valve. Connect ground cable to the terminal ground connection. Connect the ”HEAT” cable connector to the ”HEAT” terminal on the I/O board. ”HEAT” fig.6604 Steam pressure required: •...
Installation manual 10 At first power up When the installation is complete and the power is connected for the first time you will be forced to make the following settings. When one setting is ready you will automatically enter the next one. •...
Installation manual 11 Function check May only be carried out by qualified personnel. A function check must be made when the installation is finished and before the machine can be ready to be used. Open the manual water valves. Start a program. •...
Installation manual 12 Disposal information 12.1 Disposal of appliance at end of life Before disposing of the machine, make sure to carefully check its physical condition, and in particular any parts of the structure that can give or break during scrapping. The machine’s parts must be disposed of in a differentiated way, according to their different characteristics (e.g.
Page 36
Electrolux Professional AB 341 80 Ljungby, Sweden www.electroluxprofessional.com...
