DELUXE55 Tweed Recreation

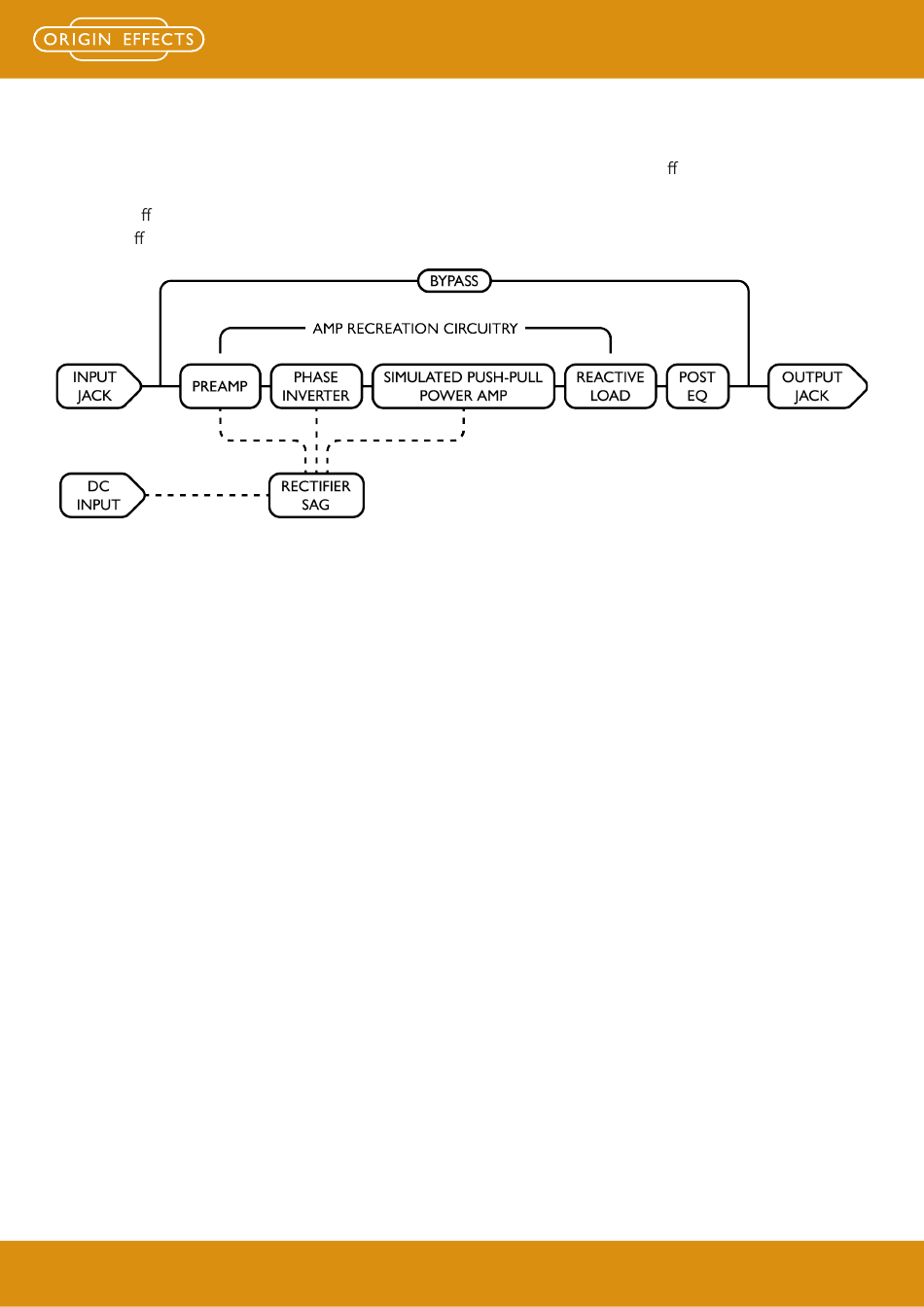

DELUXE55 Internal Signal Flow Diagram:
What goes into an Amp Recreation pedal? The diagram below shows how the di erent parts of the Tweed
Deluxe amp have been recreated in the DELUXE55. For example, all the parts of the circuit that recreate valve
stages are a ected by simulated rectifier sag. The POST EQ is separate from the Amp Recreation circuitry and
does not a ect the character of the overdrive.
9
