Summary of Contents for Origin Effects DCX BOOST

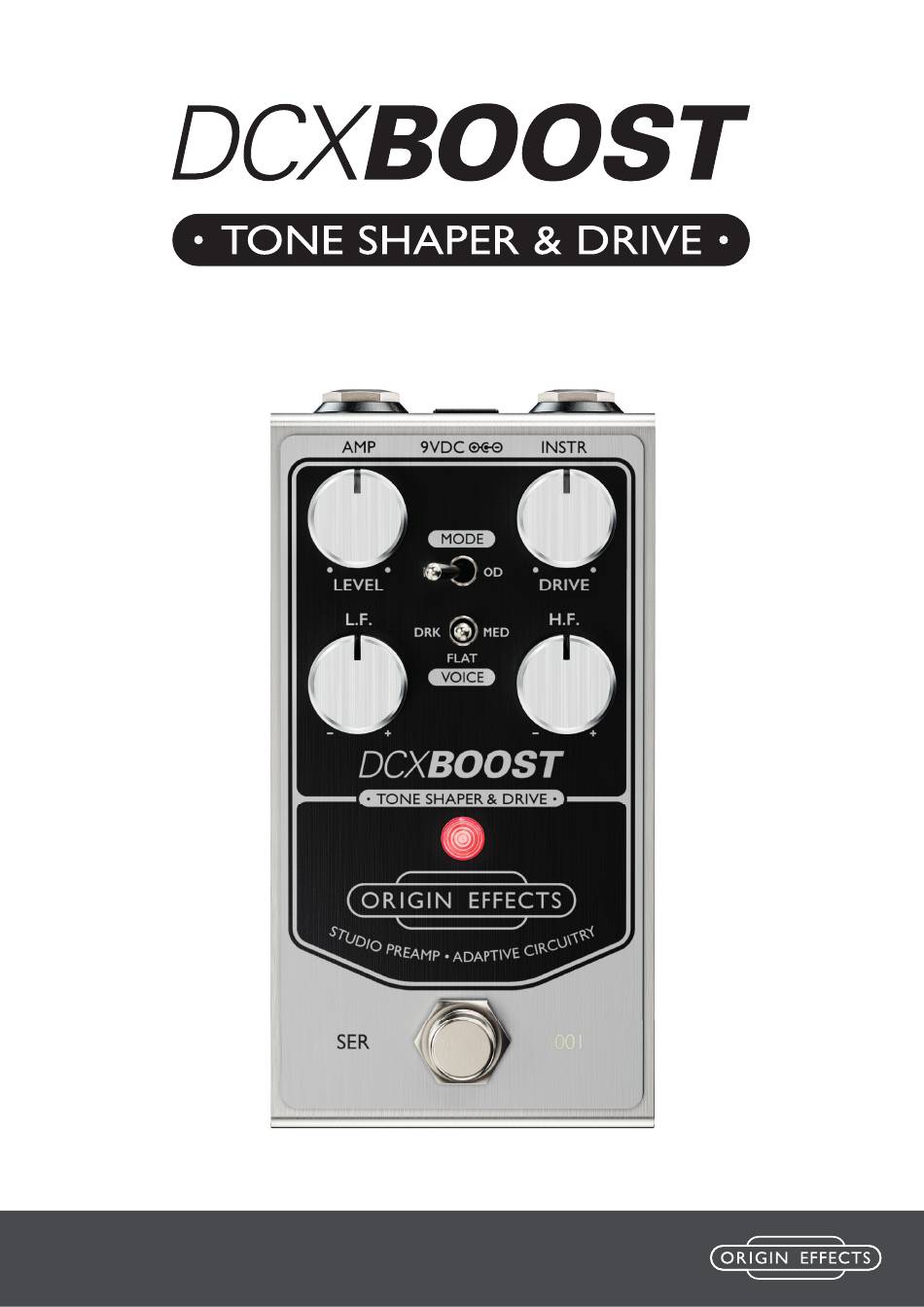

- Page 1 OWNER’S MANUAL Version 3...
- Page 2 ORIGIN EFFECTS is a trademark of Origin Effects Limited and is a registered trademark in the United States, United Kingdom, China and the EU. The ORIGIN EFFECTS Totem Device is a trade mark of Origin Effects Limited and is a registered trademark in the United States, China and United Kingdom.
-
Page 3: Table Of Contents
DCX Boost Contents Safety Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Safety Instructions . -
Page 4: Safety Notices
DCX Boost Safety Notices: General Information: This document contains important information for the safe operation of the product. Read and follow the safety instructions and all other guidance. Our products and documentation are subject to a process of con- tinuous development. They are therefore subject to change. Please refer to the latest version of the docu- mentation, which is available on our website https://origineff ects.com/manuals/... -
Page 5: Safety Instructions
DCX Boost Safety Instructions: Intended use: This device is intended for use as eff ects pedal for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is considered to be improp- er and may result in personal injury or property damage. -

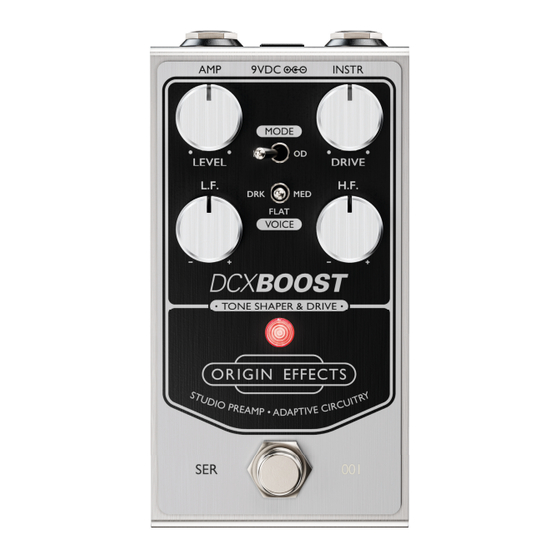

Page 6: Introducing The Dcx Boost
The DCX Boost can be used as clean boost or a subtle tone shaper, all the way to a rich, saturated overdrive, reminiscent of a retro recording console with its input gain cranked. Thanks to meticulously developed circuitry, all these tones are delivered with studio-grade clarity and precision. -
Page 7: Connecting The Dcx Boost
EQ MODE: The lower gain setting. This ranges from clean boost and direct-to-console tones to subtle overdrive, with a very flat and neutral frequency response. In EQ mode, the DCX Boost’s Adaptive Circuitry progressively applies a gentle treble roll-off which becomes more pronounced as the pedal begins to overdrive. - Page 8 EQ CONTROLS: The DCX Boost’s EQ controls give precise control over bass and treble at frequencies specifically chosen for electric guitar. These controls have been specially designed to deliver powerful EQ shaping, without sacrificing low-end clarity or overemphasising upper harmonics.
-
Page 9: Sample Settings
DCX Boost Sample Settings CLEAN AND TIGHT BRIGHT CRUNCH The perfect clean boost. Setting the DRIVE low Beef up your rhythm sound with this low-gain keeps this tone clean, while high output level setting. This gritty overdrive tone cleans up pushes the front of your amp. -
Page 10: Appendix A: Physical Specification
DCX Boost Appendix A: Physical Specification Measurement Unboxed Boxed Weight 500g (18oz) 570g (20oz) Length 124mm (4.8”) 135mm (5.3”) Depth 64mm (2.5”) 90mm (3.5”) Height 58mm (2.3”) 85mm (3.3”) Appendix B: Performance Specification Measurement Value Input impedance 1M Ω Output impedance 1k Ω... -
Page 11: Appendix D: Enviromental Information
DCX Boost Appendix D: Enviromental information The crossed out wheely bin symbol indicates this product is classifi ed as Waste Electrical and Electronic Equipment (WEEE) in the European Union and should not be discarded with household waste. Other territories may vary. Contact your local authority or Origin Eff ects for more information. -
Page 12: Appendix F: Warranty
This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin Effects dealer or directly from Origin Effects. All returns or servicing should be arranged through the original dealer. Proof of original ownership may be required in the form of a purchase receipt.
