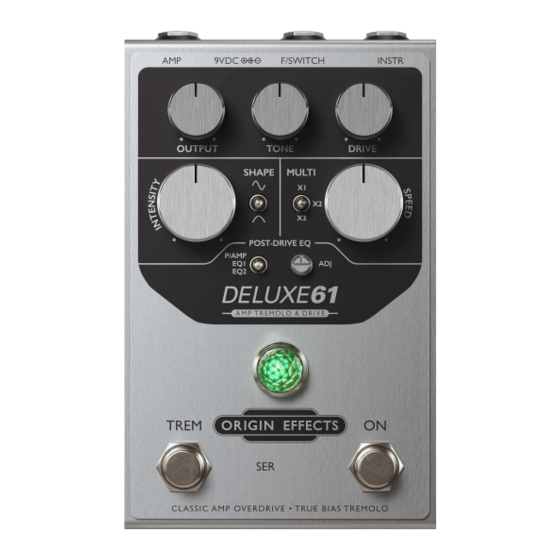

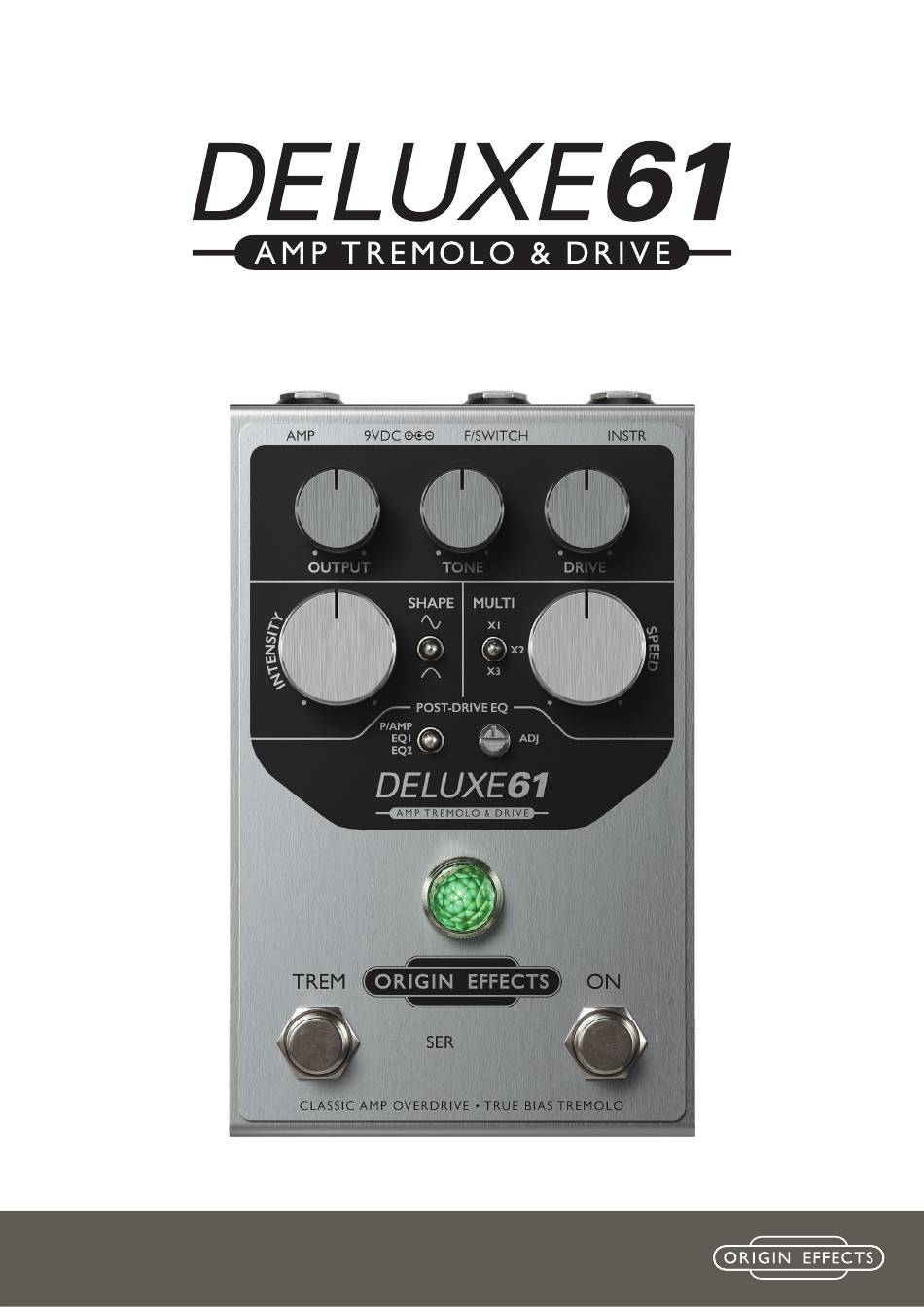

  • Page 1 OWNER’S MANUAL Version 2...
  • Page 2 ORIGIN EFFECTS is a trademark of Origin E ects Limited and is a registered trademark in the United States, United Kingdom, China and the EU. The ORIGIN EFFECTS Totem Device is a trade mark of Origin E ects Limited and is a registered trademark in the United States, China and United Kingdom.

  • Page 3: Table Of Contents

    Connecting the DELUXE61 ........

  • Page 4: Safety Notices

    DELUXE61 Safety Notices: General Information: This document contains important information for the safe operation of the product. Read and follow the safety instructions and all other guidance. Our products and documentation are subject to a process of con- tinuous development. They are therefore subject to change. Please refer to the latest version of the docu- mentation, which is available on our website https://origine ects.com/manuals/...

  • Page 5: Safety Instructions

    DELUXE61 Safety Instructions: Intended use: This device is intended for use as e ects pedal for sound processing of signals from musical instruments with electromagnetic pickups. Any other use or use under other operating conditions is considered to be improp- er and may result in personal injury or property damage.

  • Page 6: Introducing The Deluxe61

    With our powerful Post-Drive EQ, the warm cleans and gritty overdrive of the DELUXE61 will always sound their best, whether it’s plugged into an amp, a flat power amp or direct to a recording interface or PA.

  • Page 7: Connecting The Deluxe61

    DELUXE61 Connecting the DELUXE61 9VDC: Connect a 9VDC 2.1mm centre-negative mains power adaptor (minimum 100mA). NOTICE! Damage to device if powered incorrectly! This product is designed to be powered from a 9VDC, >100mA power supply with 2.1mm centre-negative barrel connector. Use of an incorrectly rated power supply could result in damage to the pedal and the power supply.

  • Page 8: Main Controls

    DELUXE61 Main Controls ON (footswitch): Turns the pedal on and o . When the pedal is engaged, the LED will illuminate. When the tremolo is active, the LED will flash green (at the tremolo speed). When the tremolo is bypassed, the LED will light up red.
  • Page 9 The POST -DRIVE EQ ensures compatibility with a wide range of amplifiers. Instead of altering your amp or its tone controls to suit the DELUXE61, set your amp for the desired clean sound then use the EQ controls to tailor the pedal’s output accordingly.
  • Page 10 Setting Your POST -DRIVE EQ Use the tables below to help you set up the DELUXE61 for the first time with a new guitar amplifier or flat-response device. Working through Steps 1 and 2 allows you to “set-and-forget” the POST-DRIVE EQ controls and move on to having fun dialling in your ideal tone with the main controls.

  • Page 11: Sample Settings

    Deluxe Drive Classic Tremolo Pure Texas blues rock overdrive. Pushing up the The DELUXE61 cleans up nicely, just like an amp! DRIVE control introduces a harmonically rich, In order to achieve a clean tremolo setting, dial driven tone that’s almost fuzz-like. Recreate that back the DRIVE control and compensate for any ‘cranked combo’...

  • Page 12: Appendix A: Physical Specification

    DELUXE61 Appendix A: Physical Specification Measurement Unboxed Boxed Weight 870g (30.7oz) 973g (34.3oz) Length 147mm (5.7”) 160mm (6.2”) Depth 93mm (3.6”) 115mm (4.5”) Height 60mm (2.3”) 95mm (3.7”) Appendix B: Performance Specification Measurement Value 1M Ω Input impedance 1k Ω...

  • Page 13: Appendix D: Enviromental Information

    DELUXE61 Appendix D: Enviromental information The crossed out wheely bin symbol indicates this product is classifi ed as Waste Electrical and Electronic Equipment (WEEE) in the European Union and should not be discarded with household waste. Other territories may vary. Contact your local authority or Origin E ects for more information.

  • Page 14: Appendix F: Warranty

    DELUXE61 Appendix F: Warranty This product is covered by a 2-year manufacturer’s warranty from the date of purchase. This applies only to original purchasers who have bought their product from an authorised Origin E ects dealer or directly from Origin E ects.
