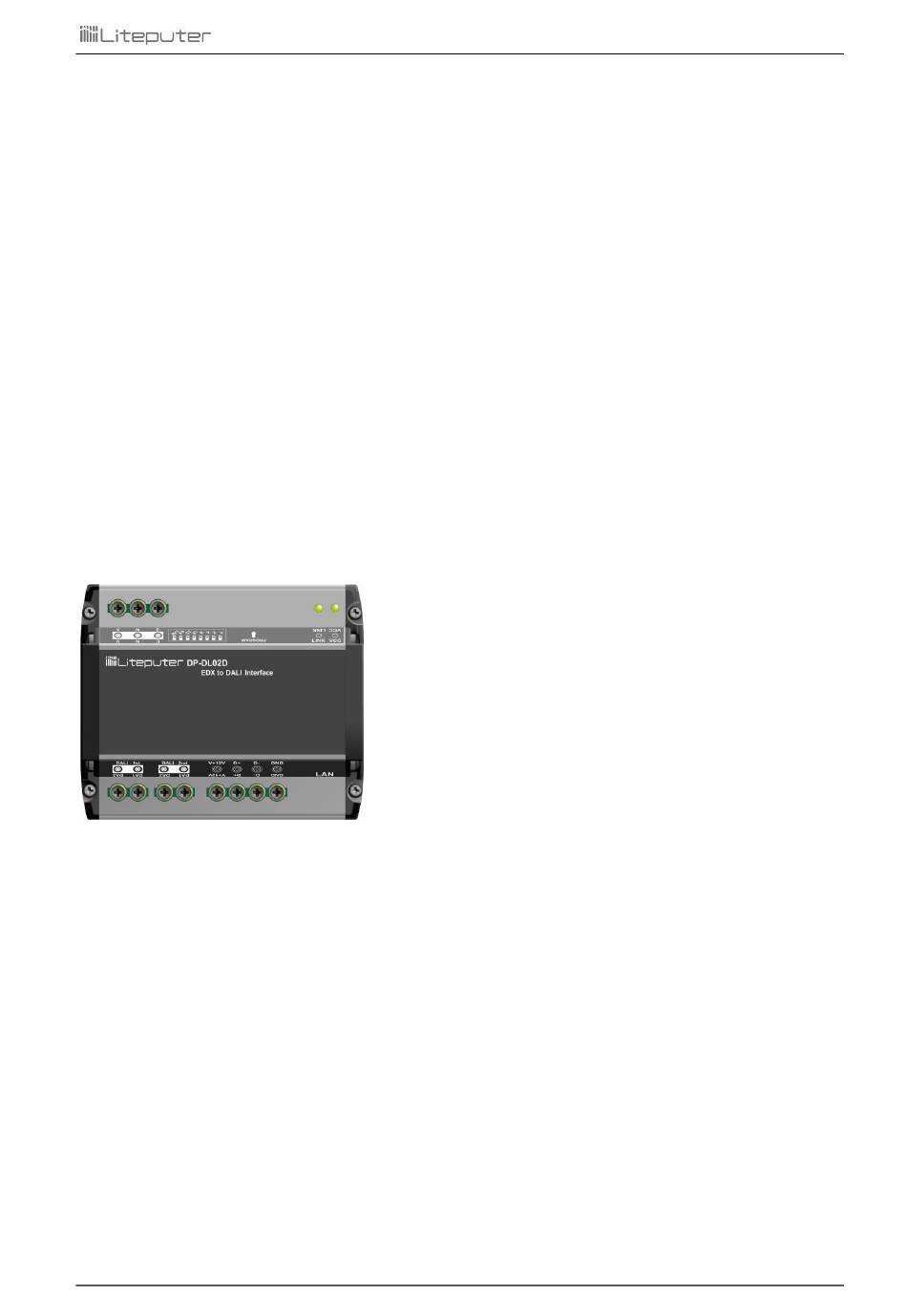

- Page 1 User Manual DP-DL02D EDX/DMX to DALI Interface DP-DL02D [EUM-C]...
-
Page 2: Table Of Contents
3.5 DALI D ............................ 14 EVICE ETTING 3.6 DALI S ..............................16 CENE 3.7 DALI S ..........................17 CENE DVANCED 3.8 DMX- -DALI P ........................... 19 ATCH 3.9 EDX- -DALI P ............................. 21 ATCH LIMITED WARRANTY ............................22 DP-DL02D [EUM-C]... -
Page 3: Introduction
3. Control up to 64 x 2 DALI ballasts/drivers (DALI universe x 2) 1.2 Specifications Power Input: AC 100 – 240V Protocol:DALI, EDX, DMX-512 Dimension:108(W)*90(H)*62(D)mm Weight: 350g 1.3 I/O 1. AC Input 2. DALI Output #1 3. DALI Output #2 4. EDX Port 5. LAN 6. DIP Switch DP-DL02D [EUM-C]... -
Page 4: About Edx/Dmx-512 Wiring
1.4 About EDX/DMX-512 Wiring The digital signal wiring is basically the same as RS-485 wiring. If you are not familiar with RS-485 wiring,please http://www.liteputer.com.tw/tech_guide.asp check EDX/DMX-512 wiring guide on Lite-Puter’s website: DP-DL02D [EUM-C]... -
Page 5: System Diagram
1.5 System Diagram 1.5.1 EDX to DALI System DP-DL02D [EUM-C]... -
Page 6: Dmx-512 To Dali System
1.5.2 DMX-512 to DALI System DP-DL02D [EUM-C]... -
Page 7: Operation
By enabling DMX-512 to DALI broadcasting feature, the DMX channel number which convert to DALI command is determined by DIP 1-7. The number configuration is based on BCD code. Each switch on DIP switch represents as following figure. For example, if you want to convert the level of DMX channel 1 to DALI broadcasting: DP-DL02D [EUM-C]... - Page 8 1+ 4 = 5 For example, if you want to convert the level of DMX channel 10 to DALI broadcasting: 2 + 8 = 10 Please note that DMX-to-DALI patch is invalid if DALI broadcasting feature is enabled. DP-DL02D [EUM-C]...
-
Page 9: Edx To Dali Gui (Edx-2-Dali)
3 EDX to DALI GUI (EDX-2-DALI) “EDX-2-DALI” is an application to configure DP-DL02D. Please download EDX-2-DALI app on Liteputer’s website: https://www.liteputer.com.tw/download-app-en/ 3.1 Install EDX-2-DALI Install “EDX-2-DALI” application in Windows 3.2 Connect to EDX to Ethernet Interface Run the application DP-DL02D [EUM-C]... - Page 10 If DP-DL02D is on the network, it will show in the list. Click “Add” to add it. If the IP address of DP-DL02D is not valid (for example, your local IP are 192.168.0.xxx, but IP address of DP-DL02D is 192.168.3.xxx), you might click “config” button to change the IP. Otherwise, you cannot connect to DP-DL02D even though you are able to see it in the list.
- Page 11 Once DP-DL02D is in the gateway list, click it to connect to DP-DL02D If DP-DL02D is connected, the main menu shows: DP-DL02D [EUM-C]...
-
Page 12: Dali Address Setting
Once searching process is done, you are able to see all DALI devices in the list below: You can click “ON/OFF” to turn ON/OFF the DALI device. Or click “TEST” to keep turning on/off of a DALI device. Click “CONFIG” to change the short address of the DALI device. DP-DL02D [EUM-C]... -
Page 13: Dali Command
3.4 DALI Command Click “DALI Command” in the main menu to enter You’re able to send DALI dimming commands directly to the DALI bus DP-DL02D [EUM-C]... -
Page 14: Dali Device Setting
3.5 DALI Device Setting Click “DALI Device Setting” in the main menu to enter It is possible to configure the parameters of a DALI device here. Click “READ” to read the parameters. Click “Save” icon to save to the corresponding parameter. DP-DL02D [EUM-C]... - Page 15 Please refer the table below for real fade time. Fade Time 0,707 s 1.000 s 1,414 s 2.000 s 2,828 s 4.000 s 5,657 s 8.000 s 11,314 s 16.000 s 22,627 s 32.000 s 45,255 s 64.000 s 90.510 s DP-DL02D [EUM-C]...
-
Page 16: Dali Scene
3.6 DALI Scene Click “DALI Scene” in the main menu to enter In this page, you’re able to configure the scenes of single DALI device. DP-DL02D [EUM-C]... -
Page 17: Dali Scene Advanced
“Only Display Short Addresses Found”. By unchecking “Only Display Short Address Found”, you can configure DALI scenes for DALI short 0-63 without searching at first. But it will take longer time to save scene to non-existing DALI devices. DP-DL02D [EUM-C]... - Page 18 Example: storing 100%, 75%, 50%, 25% to DALI short address 0-3 correspondingly: 1. Set the slider of DALI 0-3 to 100%, 75%, 50%, 15%: 2. Click “Write” to save the scenes: DP-DL02D [EUM-C]...
-
Page 19: Dmx-To-Dali Patch
Please note that DMX-to-DALI patch is invalid if DALI broadcasting feature is enabled. By default, DMX-512 address 01 is mapping to DALI short address 0, DMX-512 address 02 is mapping to DALI short address 1, and so on. You can change the mapping in this page. DP-DL02D [EUM-C]... - Page 20 Example: Make DALI short address 0,1,2 controlled by DMX-512 address1 Click “Write” to save the setting DP-DL02D [EUM-C]...
-
Page 21: Edx-To-Dali Patch
Example: Make DALI short address 0 patched to EDX zone 2/ channel 3 EDX’s zone2/ channel3 command will control DALI device with short address 0 EDX’s zone2 scene command will trigger the corresponding scene in DALI devices whose short address is 0. DP-DL02D [EUM-C]... -
Page 22: Limited Warranty
1. Lite-Puter is only responsible for the product itself. 2. Lite-Puter warrants to repair any manufacturing defects within one year of distribution date. 3. Lite-Puter does not offer on-site service. Should a defect appear in Lite-Puter’s product, please deliver the product to local distributors or Taiwan Headquarters.
