Summary of Contents for Lite-Puter DP-E500

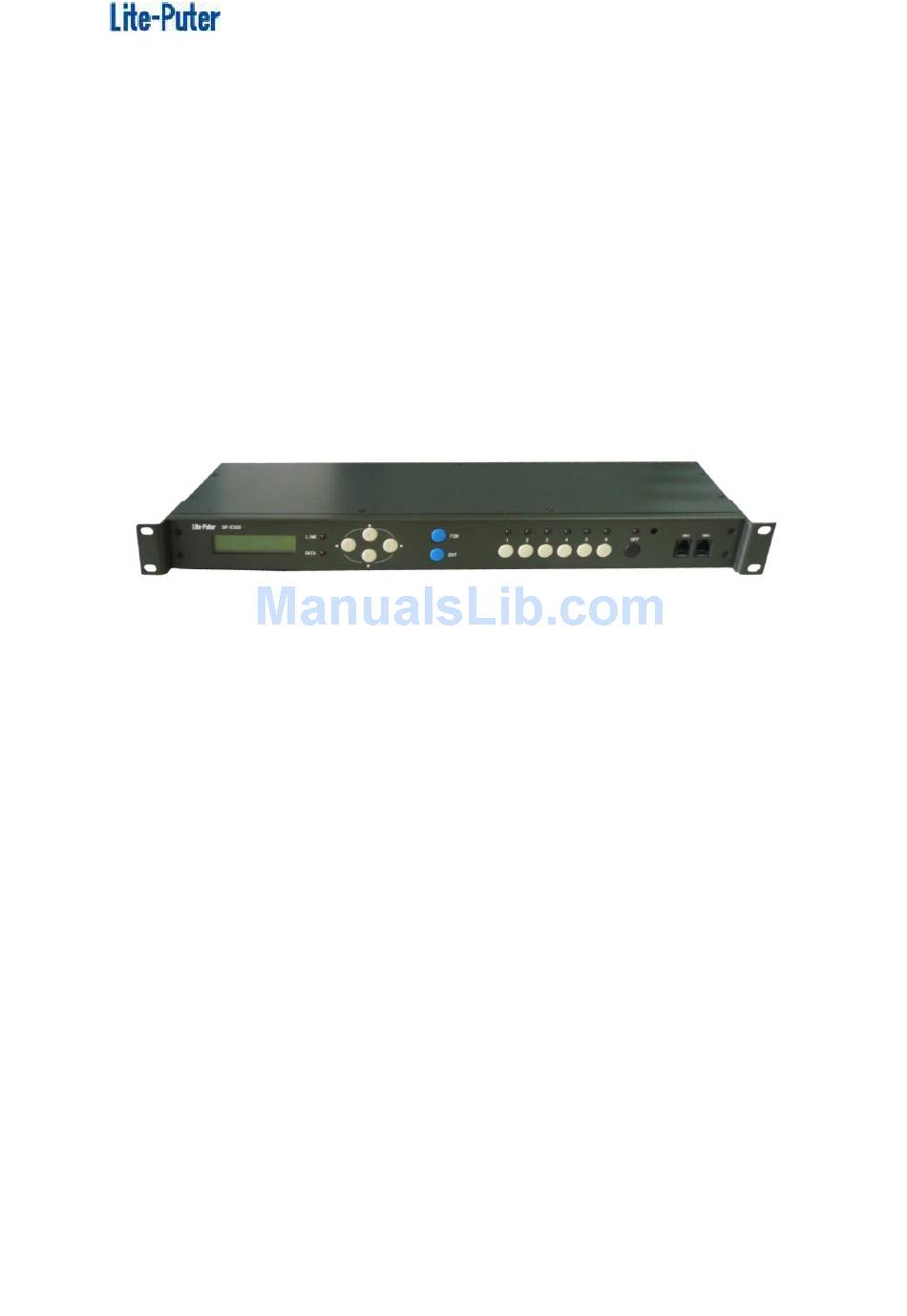

- Page 1 ISO 9001 CERTIFIED www.liteputer.com.tw DP-E500 Ethernet to DMX Interface 【User Manual】 Lite Puter Enterprise Co., Ltd. Website: www.liteputer.com.tw Email:sales@liteputer.com.tw Lite-Puter DP-E500[EUM-B]...
-
Page 2: Table Of Contents
2-2-6 Other ....................28 2-3 Work with Lighting Control Software ..........29 2-3-1 Main Menu Introduction ..............30 F1 SET IP ....................30 F2 SET MAC ................... 30 F3 MODIFY CLOCK ................30 F4 ABOUT ME ..................31 Lite-Puter DP-E500[EUM-B]... - Page 3 ISO 9001 CERTIFIED www.liteputer.com.tw 2-3-2 Memory Initialization ............... 31 2-3-3 Key Lock/Unlock ................31 2-3-4 Other ....................32 2-4 Control Software Shift ................ 32 Limited Warranty .................... 33 Lite-Puter DP-E500[EUM-B]...
-
Page 4: 1Introduction
Can be used as a controller. Connectable to PC and control software in PC can save the setting and copy the setting data. There are 4 control software can work with DP-E500 and it can automatically shift the function according to each control software. -
Page 5: Dimension
ISO 9001 CERTIFIED www.liteputer.com.tw 1-3 Dimension 1-4 Function LCD screen Link and data indicator Function button Number button and indicator IR receiver DMX port Ethernet port DMX port Power switch 10 AC power input Lite-Puter DP-E500[EUM-B]... -
Page 6: System Diagram
ISO 9001 CERTIFIED www.liteputer.com.tw 1-5 System Diagram Diagram 1（EDX） Ethernet Signal EDX Signal DP-E500 Control Panel EDX-610 IR Controller Lite-Puter DP-E500[EUM-B]... - Page 7 ISO 9001 CERTIFIED www.liteputer.com.tw Diagram 2（DMX） Ethernet Signal DP-E500 DMX Signal DX-1220 ………. Lite-Puter DP-E500[EUM-B]...
-
Page 8: Operation
2 Operation 2-1 Work with Home Lighting Control Software When DP-E500 work with Home Lighting software, its DMX1 port sent DMX-512 signal to the controller and DMX2 port receive the signal from the ECP control panel. The max. control channel quantity is 512. -
Page 9: Main Menu Introduction
STEP-5 After setting, press【ENT】and LCD displays, Blink Press【1】to save the setting to SC0001 or press【2】to quit. Notice: After DP-E500’s connecting with Home Lighting control software, the scene button on DP-E500 will have new meaning. 【OFF】is for SC1 【1】is for SC2 【2】is for SC3 and so on. -
Page 10: F2 Scene Fade
STEP-2 Press【▲】or【▼】to select on or off. STEP-3 After setting, press【ENT】to save or press【FCN】to quit. F4 TIMER EDIT STEP-1 On the main page, press 【FCN】to enter the main menu and press 【▲】or【▼】to select F4 TIMER EDIT. Press【ENT】to enter the function and Lite-Puter DP-E500[EUM-B]... - Page 11 Review the timer record to select one need to edit. Press 【 4】 and LCD displays, Blink Repeat STEP-2 and STEP-3 in add timer to do the following setting. Delete Timer Review the timer record to select one need to edit. Press 【 2】 and LCD displays, Lite-Puter DP-E500[EUM-B]...
-
Page 12: F5 Sch Edit
Notice: If the Schedule set as SCH000, it means there is no schedule will be executed. F5 SCH EDIT STEP-1 On the main page, press 【FCN】to enter the main menu and press 【▲】or【▼】to select F5 SCH EDIT. Press【ENT】to enter the function and LCD displays, Lite-Puter DP-E500[EUM-B]... -
Page 13: F6 Patch Edit
【▲】or【▼】to select F6 PATCH EDIT.Press【ENT】to enter the function and LCD displays, Blink STEP-2 Press 【▲】 or 【 ▼】 to select the PATCH no. then press 【1】 to continue or press【2】to exit. Press【1】and LCD displays, STEP-3 Press【▲】or【▼】to select the channel no. and press【◀】or【▶】 to select DMX address. Lite-Puter DP-E500[EUM-B]... -
Page 14: F7 Patch Load
【▼】to adjust the value. STEP-3 After setting, press【ENT】to save or press【FCN】to exit. F9 SET IP STEP-1 On the main page, press 【FCN】to enter the main menu and press 【▲】or【▼】to select F9 SET IP. Press【ENT】and LCD displays, Lite-Puter DP-E500[EUM-B]... -
Page 15: F10 Set Mac
Software version：V1.17 2-1-2 Memory Initialization STEP-1 After switching off, hold 【FCN】 and 【OFF】 at the same time then switch DP-E500 on till LCD displays, Press【1】to start the initialization or press【2】to skip. STEP-2 Press【1】to initializa the memory and LCD displays, then... -
Page 16: Key Lock/Unlock
2-1-4 Other A. When the DP-E500 is working alone, LCD displays, DP-E500’s IP address is 192.168.2.67. B. When the DP-E500 is working with the control software, LCD displays, PC’s IP address is 192.168.2.99. C. Press【FCN】to go back to the main page. -
Page 17: Work With Rgb Led Control Software
2-1 Work with RGB LED Control Software When DP-E500’s working with RGB LED control software, DP-E500 will receive Ethernet signal and its DMX1 & DMX 2 port will send DMX-512 signal to control the LED devices, the max. control channel quantity is 1024. -
Page 18: Main Menu
1. When the SEQ OFF and SEQ 001-SEQ 006 be recalled , the indicator of key【OFF】and 【1】-【6】will turn on; but when SEQ 007-SEQ 512 be recalled, there is no indicator sign. 2. On the main page, press 【OFF】and 【1】-【6】to recall SEQ OFF and SEQ 001-SEQ 006 directly. Lite-Puter DP-E500[EUM-B]... -
Page 19: F2 Modify Ch
【▲】or【▼】to select F2 MODIFY CH. Press【ENT】and LCD displays, STEP-2 Press【◀】or【▶】to select the channel no., and press【▲】or【▼】 to adjust the dimming value. STEP-3 After settting, press【ENT】to save or press【FCN】to exit. STEP-4 Press【ENT】and LCD displays, STEP-5 Press【▲】or【▼】to select the scene no.need to save to. Lite-Puter DP-E500[EUM-B]... -
Page 20: F3 Edit Scene
STEP-6 After setting, press【1】to save or press【2】to exit. F3 EDIT SCENE DP-E500 can save 512 scenes and scene no.is 0-512. If the scene is SC000, any dimming value change is started from 0%. If the scene is SC001-SC512, any dimming value change is started from the last setting. -
Page 21: F5 Edit Seq
STEP006 to STEP010 will be useless. Press 【▶】go back to STEP001 or press【◀】jump toSTEP005. STEP-4 After setting, press【ENT】to save or press【FCN】to exit. F6 SEQ CONFIG STEP-1 On the main page, press【FCN】to enter the main menu and press 【▲】or【▼】to select F6 SEQ CONFIG. Press【ENT】and LCD displays, Lite-Puter DP-E500[EUM-B]... -
Page 22: F7 Timer On/Off
FADE TIME and DELAY TIME’s meaning 0.1S 0.2S 0.3S 0.4S 0.5S 0.6S 0.7S 0.8S 0.9S ………. F7 TIMER ON/OFF STEP-1 On the main page, press【FCN】to enter the main menu and press 【▲】or【▼】to select F7 TIMER ON/OFF. Press【ENT】and LCD displays, Lite-Puter DP-E500[EUM-B]... -
Page 23: F8 Edit Timer
When the timer record is full, LCD will display, For example, SEQ 2 will be call out on 16:38 every Monday, Thursday and the mode is 1, fade time is 3s and delay time is 3s. After setting, LCD displays, Lite-Puter DP-E500[EUM-B]... - Page 24 When the DATE is ON, the DATE setting, MAY, 20 will be effective. The day is either Monday , Thursday or May, 20, the SEQ will be executed on time. For example, SEQ 2 will be call out on 16:38, May, 20 each year in mode 1 and LCD displays, Lite-Puter DP-E500[EUM-B]...
-
Page 25: F9 Edit Patch
【▲】or【▼】to select F9 EDIT PATCH. Press【ENT】and LCD displays, Blink STEP-2 Press 【▲】 or 【 ▼】 to select channel no. and press 【◀】 or 【 ▶】 to select DMX address. Channel 5 controls DMX address 1 STEP-3 After setting, press【ENT】to save or press【FCN】to exit. Lite-Puter DP-E500[EUM-B]... -
Page 26: F10 Edit Clock
STEP-1 On the main page, press【FCN】to enter the main menu and press 【▲】or【▼】to select F12 SET MAC. Press【ENT】and LCD displays, Blink STEP-2 Press【◀】or【▶】to select the byte and press【▲】or【▼】to adjust the value. STEP-3 After setting, press【ENT】to save or press【FCN】to exit. Lite-Puter DP-E500[EUM-B]... -
Page 27: F13 About Me
Work with RGB Led Control 图控 Software version: V1.18 2-2-2 IR Remote Control Can work with Lite-Puter’s IR remote controller. 2-2-3 Memory Initialization STEP-1 After switching off, hold 【FCN】 and 【OFF】 at the same time then switch DP-E500 on till LCD displays, Press【1】to start the initialization or press【2】to skip. -
Page 28: Other
2-2-6 Other A. When the DP-E500 is working alone, LCD displays, DP-E500’s IP address is 192.168.2.67. B. When the DP-E500 is working with the control software, LCD displays, PC’s IP address is 192.168.2.99. C. Press【FCN】to go back to the main page. -
Page 29: Work With Lighting Control Software
ISO 9001 CERTIFIED www.liteputer.com.tw 2-3 Work with Lighting Control Software When DP-E500 work with Lighting Control Software, it will send DMX and EDX signal to control the devices. System Diagram（Work with Lighting Control Software） Ethernet Signal DP-E500 EDX Signal Control Panel... -
Page 30: Main Menu Introduction
【▲】or【▼】to select F2 SET MAC. Press【ENT】and LCD displays, Blink STEP-2 Press【◀】or【▶】to select the byte and press【▲】or【▼】to adjust the value. STEP-3 After setting, press【ENT】to save or press【FCN】to exit. F3 MODIFY CLOCK STEP-1 On the main page, press【FCN】to enter the main menu and press Lite-Puter DP-E500[EUM-B]... -
Page 31: F4 About Me
Software version : V1.12 2-3-2 Memory Initialization STEP-1 After switching off, hold 【FCN】 and 【OFF】 at the same time then switch DP-E500 on till LCD displays, Press【1】to start the initialization or press【2】to skip. STEP-2 Press【1】to initializa the memory and LCD displays,... -
Page 32: Other
Lighting Control, Home-Lighting and RGB LED Control. Use can shift the control software by 1. When DP-E500 working with PC, it will shift to the right control software automatically. 2. Use the keys on the DP-E500. A. Work with Lighting Control Software STEP-1 Hold【FCN】and 【1】... -
Page 33: Limited Warranty
Lite-Puter control). c. The cost of installing, reinstalling, adjusting, repairing, or reprogramming the product. d. Other products or devices which are offered by Lite-Puter or not by Lite-Puter. 5. Lite-Puter does not warrant the product will operate without interruption or being free of error. - Page 34 Address: Building B5, No. 298, Lane 3509, Hongmei S. Road, Shanghai, China Zip Code: 201108 Tel: +86-21-54408210 Fax: +86-21-64978079 Shanghai Sales Center: Address: Room 701, Building Gem, No. 487, Tianlin Road, Shanghai, China Zip Code: 201103 Tel: +86-21-33674316/33674850 Fax: +86-21-33674013 Website: www.liteputer.com.cn E-mail: sales_china@liteputer.com.tw Lite-Puter DP-E500[EUM-B]...
