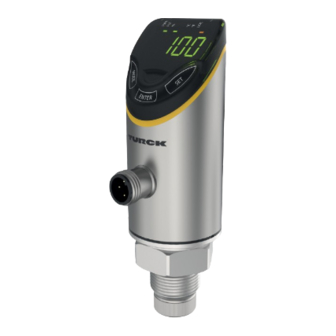

- Page 1 FS121-2UPN8-H1141 Flow Processing and Display Unit Instructions for Use...
-
Page 2: Table Of Contents
Installing ............................ 16 Connection ............................ 17 Wiring diagram...................... 17 Commissioning.......................... 18 Operation............................ 19 LEDs — operation ...................... 19 Displays........................... 19 V01.00 | 2024/04 | 2 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... - Page 3 12.1 Returning devices ...................... 32 13 Disposal.............................. 32 14 Technical data........................... 33 15 Turck branches — contact data .................... 35 V01.00 | 2024/04 | 3 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com...
-
Page 4: About These Instructions
If you have any suggestions for improving the design or if some information is missing in the document, please send your suggestions to techdoc@turck.com. V01.00 | 2024/04 | 4 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 5: Notes On The Product
Flow processing and display unit Quick Start Guide Turck service Turck supports you in your projects – from the initial analysis right through to the commission- ing of your application. The Turck product database at www.turck.com offers you several soft- ware tools for programming, configuring or commissioning, as well as data sheets and CAD files in many export formats. -
Page 6: For Your Safety
The product is designed according to state of the art technology. Residual hazards, however, still exist. Observe the following safety instructions and warnings in order to prevent danger to persons and property. Turck accepts no liability for damage caused by failure to observe these safety instructions. -
Page 7: Product Description
The greater the energy dissipation, the higher the flow speed or flow rate. V01.00 | 2024/04 | 7 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 8: Functions And Operating Modes
V01.00 | 2024/04 | 8 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 9: Output Functions - Switching Output
SP2 switch-off point. If the process value de- creases below the switch-off point SP2, the switching output becomes inactive. Switching state Process value Fig. 3: Two point mode V01.00 | 2024/04 | 9 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 10: Window Mode
> T ∆ Flow zu hoch ∆ Flow too high ∆t ∆t t [s] Fig. 5: DeltaFlow monitoring — schematic diagram V01.00 | 2024/04 | 10 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 11: Io-Link Mode
The auto detect function enables the device to automatically detect the pre-defined switching output behavior (PNP/NPN)when connected to an I/O module. The auto detect function is ac- tivated by default. V01.00 | 2024/04 | 11 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 12: Technical Accessories
Removable Label 4.6.2 Connectivity accessories In addition to the above connection cables, Turck also offers other cable types for specific ap- plications with the correct terminals for the device. More information on this is available from the Turck product database at www.turck.de/products... -
Page 13: Flow Sensors
G1/4 ø 7,3 M12 x 1 FCS-G1/2A4- 6870303 Flow sensor for liquids, immer- NA-H1141 sion sensor without integrated signal processor V01.00 | 2024/04 | 13 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... - Page 14 FCI-D10A4P- 6870629 Flow sensor for liquids, inline NA-H1141 sensor without integrated signal processor ø 9 G1/4 M12 x 1 V01.00 | 2024/04 | 14 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com...
- Page 15 6870631 Flow sensor for liquids, inline NA-H1141/ sensor without integrated signal processor M12 x 1 ø 35 M16 x 1,5 V01.00 | 2024/04 | 15 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com...
-
Page 16: Installing
„ If the connected sensor is replaced: Teach in new teach values. V01.00 | 2024/04 | 16 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 17: Connection
PNP/NPN 2 out 2 3 L– out 1: Flow, IO-Link out 2: Temperature Fig. 8: Pin assignment Fig. 9: FS…-2UPN8-H1141 wiring diagram V01.00 | 2024/04 | 17 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 18: Commissioning
Specify the cable length of the connected flow sensor (see fig. 6 and parameter CLEn). „ Perform MAX/MIN-Teach or Quick-Teach to adapt the sensor to application-specific con- ditions. V01.00 | 2024/04 | 18 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 19: Operation
Short circuit at output 2 SC12 Short circuit at both outputs WB 2 Wire break Prob No sensor present, sensor incorrectly connected or sensor faulty V01.00 | 2024/04 | 19 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... - Page 20 Value < -5 % of the set flow range in MAX/MIN-Teach, value < -55 % of the set switching point in Quick-Teach, media temperature less than the min. working temperature of the respective sensor V01.00 | 2024/04 | 20 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com...
-
Page 21: Setting And Parameterization
The auto detect function enables the device to automatically detect the pre-defined switching output behavior (PNP/NPN)when connected to an I/O module. The auto detect function is ac- tivated by default. V01.00 | 2024/04 | 21 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 22: Setting Via Touchpads
>3 s Current value AUTO Save value >3 s Current value OFF On Save value DOFF Fig. 11: OUT… submenu (FS…2UPN8) V01.00 | 2024/04 | 22 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... - Page 23 Parameter Setting CLEn PASS Process value Software version >3 s Current value FACT rEBO APPL UnDO Fig. 13: Extended functions submenu (EF) V01.00 | 2024/04 | 23 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com...
-
Page 24: Setting Parameter Values Via The Touchpads
LOC LED is yellow. The sensor is automatically locked if the touchpads of the device are not actuated for 1 min. V01.00 | 2024/04 | 24 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 25: Protecting The Sensor With A Password
Refer to the "Parameters in the DISP submenu" table for additional setting options Extended Functions submenu For additional setting options see the “Parameters in the EF submenu” table V01.00 | 2024/04 | 25 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 26: Parameters In The Out
Default: 0.0 s DOFF Switch-off delay 0…60 s in increments of 0.1 s (0 = delay time not activated) Default: 0.0 s V01.00 | 2024/04 | 26 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 27: Parameters In The Disp Submenu (Display)
Restart the device (warm start) APPL Reset the application-specific data UnDO Reset the parameters to previous settings (last device start) V01.00 | 2024/04 | 27 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 28: Quick-Teach
Press [SET] for 3 s until IEP briefly lights up green and the value 9 flashes green. The upper limit value for the flow speed is set. V01.00 | 2024/04 | 28 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... - Page 29 (Δ Flow active): too small value ok S > 3 s ISP is set Process value Fig. 17: MAX/MIN-Teach V01.00 | 2024/04 | 29 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com...
-
Page 30: Setting Via Io-Link
In SIO mode, the device operates in accordance with the most recent set- ting configured in IO-Link mode. V01.00 | 2024/04 | 30 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 31: Troubleshooting
If there are no faults, there is a device malfunction. In this case, decommission the device and replace it with a new device of the same type. V01.00 | 2024/04 | 31 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 32: Maintenance
Disposal The devices must be disposed of properly and do not belong in the domestic waste. V01.00 | 2024/04 | 32 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... -
Page 33: Technical Data
4 bits: 2 × 2 switching points Frame type Minimum cycle time 6 ms Function pin 4 IO-Link Function pin 2 Maximum cable length 20 m V01.00 | 2024/04 | 33 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com... - Page 34 4-digit 12-segment display, rotatable by 180°, red or green Switching state indication 2 × LEDs, yellow MTTF 120 years acc. to SN 29500 (Ed. 99) 40 °C V01.00 | 2024/04 | 34 Hans Turck GmbH & Co. KG | T +49 208 4952-0 | more@turck.com | www.turck.com...
-
Page 35: Turck Branches - Contact Data
