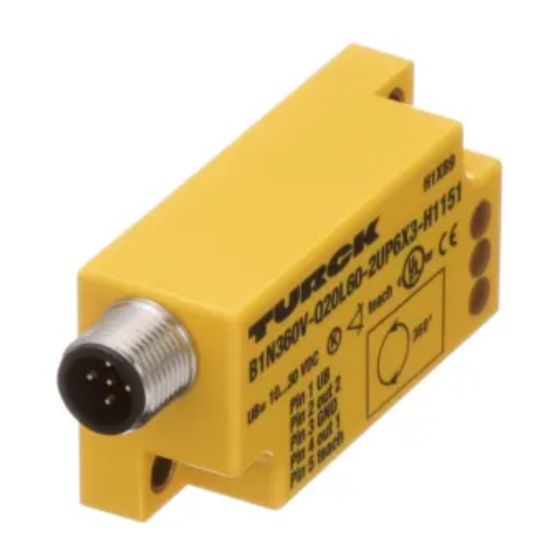

Inclinometer
With two programmable switchpoints
B1N360V-Q20L60-2UP6X3-H1151/3GD
Type designation
Ident no.
Measuring range
Mounting conditions
Repeat accuracy
Absolute accuracy (at 25 °C)
Temperature coefficient typical
Resolution
Ambient temperature
Operating voltage
Residual ripple
Residual current
Isolation test voltage
Output current
Response delay
Dropout delay
Short-circuit protection
Voltage drop at I
e
Wire breakage/Reverse polarity protection
Output function
Current consumption
Approval acc. to
Design
Dimensions
Housing material
Electrical connection
Vibration resistance
Shock resistance
Protection class
MTTF
Packaging unit
Power-on indication
Switching state
Included in delivery
1 / 5
Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
B1N360V-Q20L60-2UP6X3-H1151/3GD
1534112
0...360 °
Vertical
ð 0.2 % of full scale
+/- 0.5 °
0.03 °/K
ð 0.14 °
-30...+70 °C
For explosion hazardous areas see instruction
leaflet
10...30 VDC
ð 10 % U
ss
ð 0.1 mA
ð 0.5 kV
ð 500 mA
500 ms
350 ms
yes/ Thermal
ð 1 V
yes/ Complete
5-pin, NO/NC, 2 × PNP
Surge protection from +Ub to (Ub - 40V)
35 mA
ATEX declaration of conformity TURCK Ex-12003H
X
Rectangular,Q20L60
60 x 30 x 20 mm
Plastic, PC
Connectors, M12 × 1
55 Hz (1 mm)
30 g (11 ms)
IP68 / IP69K
399 years acc. to SN 29500 (Ed. 99) 40 °C
1
LED,Green
2 × LEDs, Yellow
Security clip SC-M12/3GD, SC-M12/3GD
ATEX category II 3 G, Ex zone 2
ATEX category II 3 D, Ex zone 22
Rectangular, height 20 mm
Plastic, PC
Indication of operating voltage and
switching state
Two programmable switching outputs
Switchpoints selectable in a range be-
tween 0° and 360°
DC 4-wire, 10...30 VDC
M12 x 1 male connector

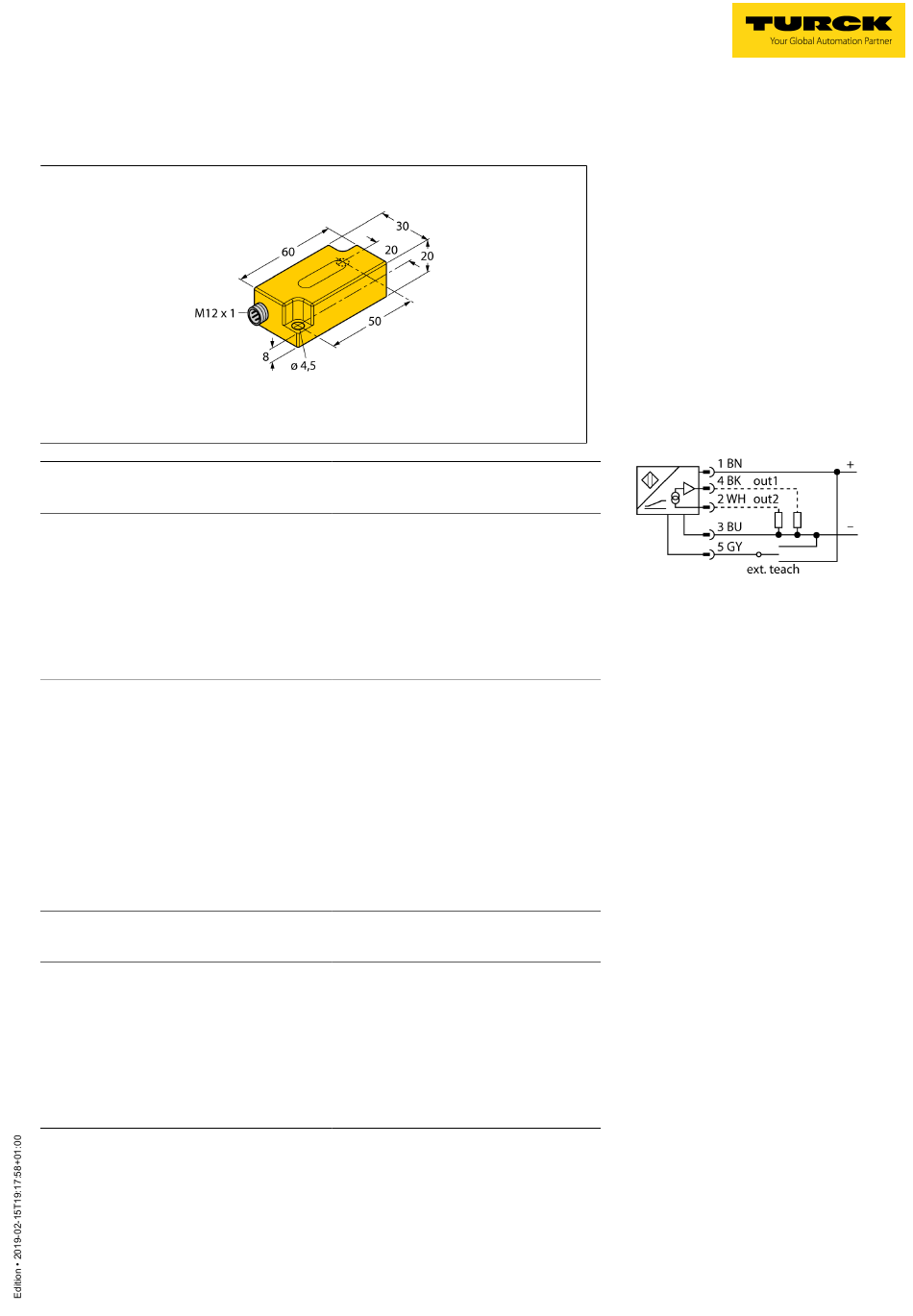

Wiring Diagram
Functional principle
Inclination is determined by a wear-free semi-
conducting sensor element.
