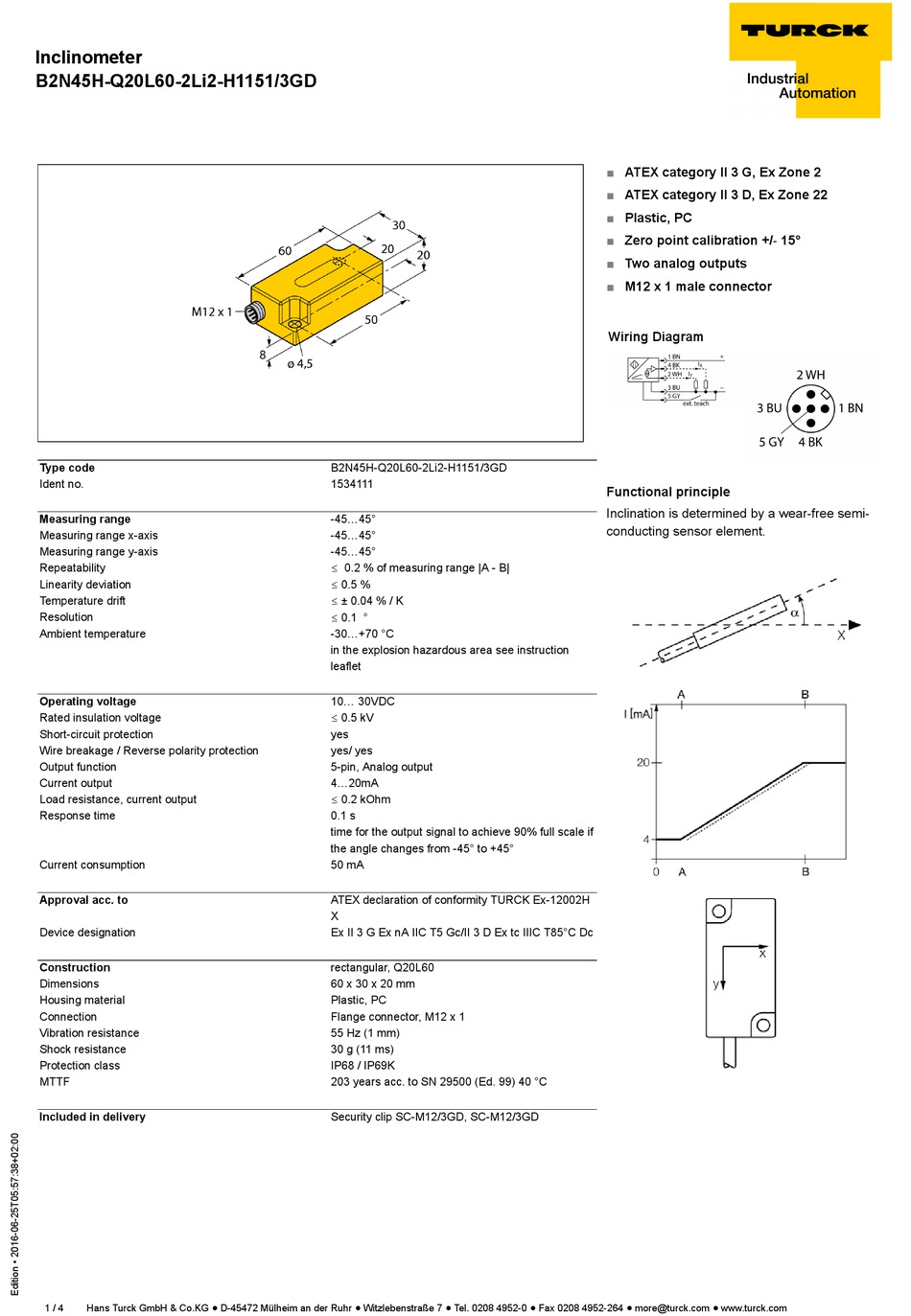

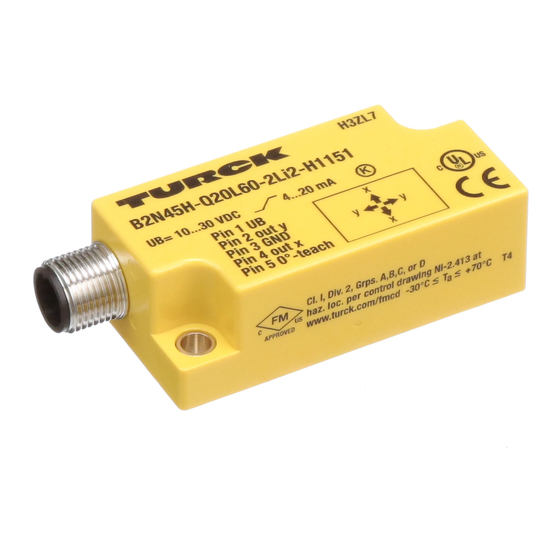

turck B2N45H-Q20L60-2Li2-H1151/3GD Quick Start Manual

turck B2N45H-Q20L60-2Li2-H1151/3GD Quick Start Manual

Inclinometer

Advertisement

Quick Links

Inclinometer
B2N45H-Q20L60-2Li2-H1151/3GD
Type code
Ident no.
Measuring range
Measuring range x-axis
Measuring range y-axis
Repeatability
Linearity deviation
Temperature drift
Resolution
Ambient temperature
Operating voltage
Rated insulation voltage
Short-circuit protection
Wire breakage / Reverse polarity protection
Output function
Current output
Load resistance, current output
Response time
Current consumption
Approval acc. to
Device designation
Construction
Dimensions
Housing material
Connection
Vibration resistance
Shock resistance
Protection class
MTTF
Included in delivery
1 / 4
Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
B2N45H-Q20L60-2Li2-H1151/3GD
1534111
-45...45°
-45...45°
-45...45°
ð 0.2 % of measuring range |A - B|
ð 0.5 %
ð ± 0.04 % / K
ð 0.1 °
-30...+70 °C
in the explosion hazardous area see instruction
leaflet
10... 30VDC
ð 0.5 kV
yes
yes/ yes
5-pin, Analog output
4...20mA
ð 0.2 kOhm
0.1 s
time for the output signal to achieve 90% full scale if
the angle changes from -45° to +45°
50 mA
ATEX declaration of conformity TURCK Ex-12002H
X
Ex II 3 G Ex nA IIC T5 Gc/II 3 D Ex tc IIIC T85°C Dc
rectangular, Q20L60
60 x 30 x 20 mm
Plastic, PC
Flange connector, M12 x 1
55 Hz (1 mm)
30 g (11 ms)
IP68 / IP69K
203 years acc. to SN 29500 (Ed. 99) 40 °C
Security clip SC-M12/3GD, SC-M12/3GD
ATEX category II 3 G, Ex Zone 2
ATEX category II 3 D, Ex Zone 22
Plastic, PC
Zero point calibration +/- 15°
Two analog outputs
M12 x 1 male connector
Wiring Diagram
Functional principle
Inclination is determined by a wear-free semi-
conducting sensor element.
