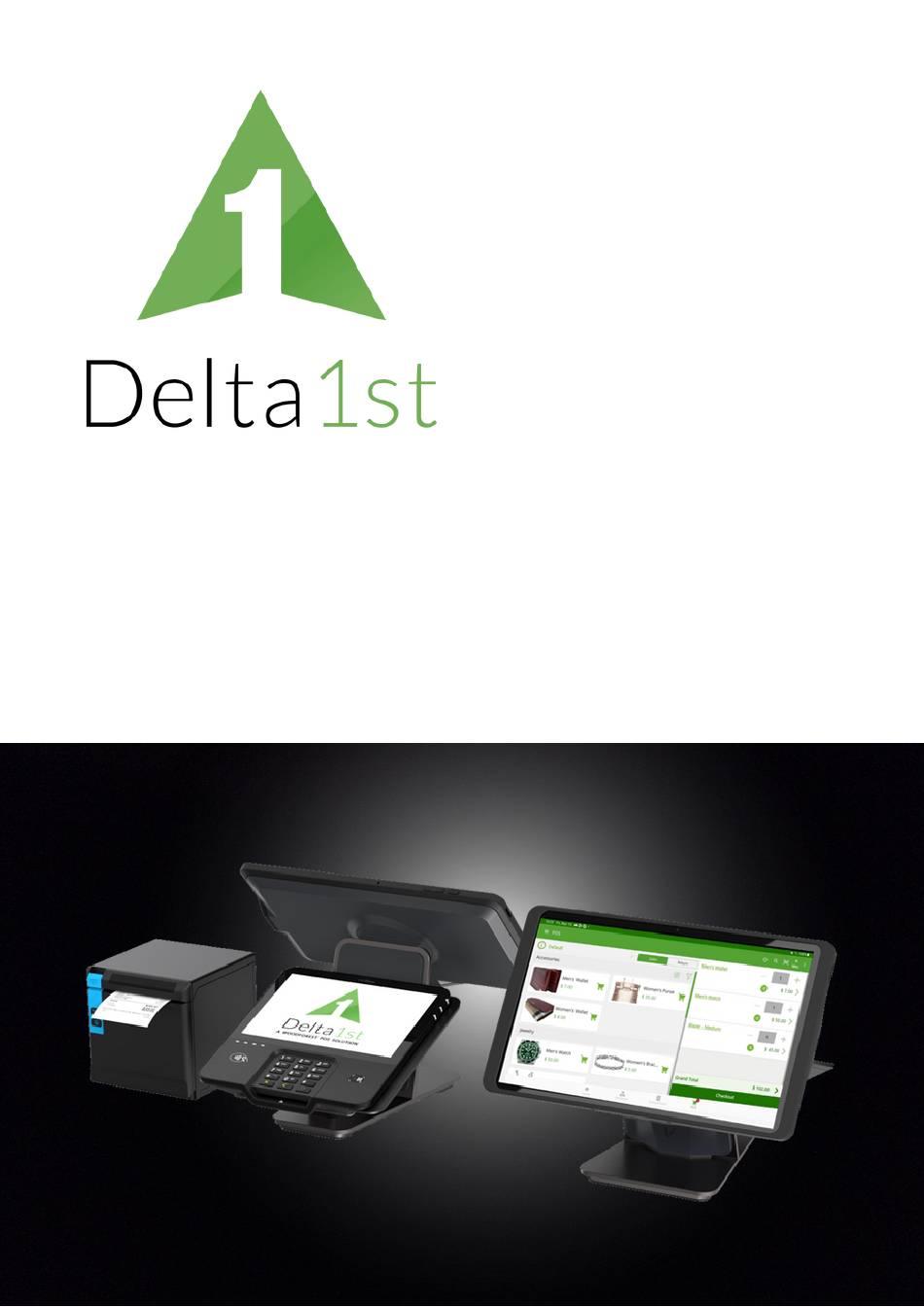

- Page 1 Verifone IX90 Installation Guide IX90 Set Up Guide...
- Page 2 Refer to this guide for detailed instructions on how to set up your new IX90 device and start taking payments today! Need help setting up? Our dedicated support team is here to help you every step of the way.
- Page 3 Verifone IX90 Delta1st POS Installation Guide Overview Merchant-Facing Tablet Printer Customer-Facing Cash Drawer Payment Device (Optional) Figure 1 Steps to Follow to Assemble Completed Set Up (Figure 1): 1 - Unbox 2 - Connect all 3 - Set up Payment...
- Page 4 Verifone IX90 Delta1st POS Installation Guide Unbox Equipment A. Start Unpacking the Gear Open the shipping box and lift out the box with handles. The box with handles contains the tablet, and two smaller boxes: One box has a Cable Hub to connect all the cables.
- Page 5 Delta1st POS Installation Guide B. Set Preferred Orientation of Tablet Set the IX90 on a stable countertop. Set the preferred orientation. The merchant facing display can be used in both portrait and landscape mode. To change the orientation, pull on the pin located at the back of the tablet (Figure 3A) and rotate it counterclockwise (Figure 3B).
- Page 6 Verifone IX90 Delta1st POS Installation Guide Connect All Devices to Cable Hub and Power Outlet A. Connect Tablet and Payment Device to Cable Hub The tablet will have two cables connected to it. Plug in the Tablet’s cables to the Cable Hub.
- Page 7 Delta1st POS Installation Guide B. Install Printer Remove the back cover of the Printer labeled "Verifone." This may require a bit of force. Connect USB-B cable from the Printer to the USB-A port of the Cable Hub. Connect the two-piece power cord from the Printer to an outlet.
- Page 8 Router. Enter the Device ID on the Payment Device. You can find the Device ID in your email from Verifone or on the packing slip attached to the box. To locate it, remove the packing slip from the plastic wrap and look at the bottom left under ‘Remarks’...
- Page 9 Verifone IX90 Delta1st POS Installation Guide Set Up Tablet A. Set Up Wi-Fi & Google Account on Tablet While the Payment Device is updating the software, select a language on the Tablet and click Start. Connect to the same Wi-Fi as the Payment Device.
- Page 10 Verifone IX90 Delta1st POS Installation Guide B. Download Delta1st POS App Go to the Play Store app and search “Delta1st POS”. Install the appropriate industry: Food/Retail/Service (PP) and open the app. Open the downloaded app. Click “Allow photos” and “Ok” for permission to access.
- Page 11 Verifone IX90 Delta1st POS Installation Guide Extra / Optional Equipment The following steps are for those who added on the OPTIONAL equipment to their order. Cash Drawer Bar Code Scanner PIN Pad Cover Stylus Stylus Adapter For support, please contact (888) 584-2265.
-
Page 12: Cash Drawer
Verifone IX90 Delta1st POS Installation Guide Extra: Cash Drawer A. The connection port of the cash drawer is on the bottom of the cash drawer. B. The Cash Drawer cable will be labeled “Printer” on one end and “Cash Drawer” on the other. - Page 13 Verifone IX90 Delta1st POS Installation Guide Extra: PIN Pad Cover A. Remove plastic film to reveal the adhesive. B. Place the optional PIN pad cover on the PIN pad and push down. Figure 9 For support, please contact (888) 584-2265.
-
Page 14: Barcode Scanner
Verifone IX90 Delta1st POS Installation Guide Extra: Bar Code Scann er A. Plug Barcode Scanner into Cable Hub (Figure 10). B. To activate the Barcode Scanner, click Create Order in the Delta1st POS app > Top right barcode icon > Scan the barcode below to connect and allow permission (Figure 11). - Page 15 Verifone IX90 Delta1st POS Installation Guide Extra: Stylus A. Locate the stylus port on the left side of the payment device. B. Align the stylus with the port and gently push it in until it clicks into place (Figure 12).
- Page 16 Delta1st POS Installation Guide Time to Grow! If the above steps are followed correctly, the IX90 device should be ready to use. For additional support with your setup, or with any other questions you may have during our partnership, please contact Woodforest Acceptance Solutions Support at (888) 584-2265 and select Option 2, or merchantsupport@woodforestpay.com.
