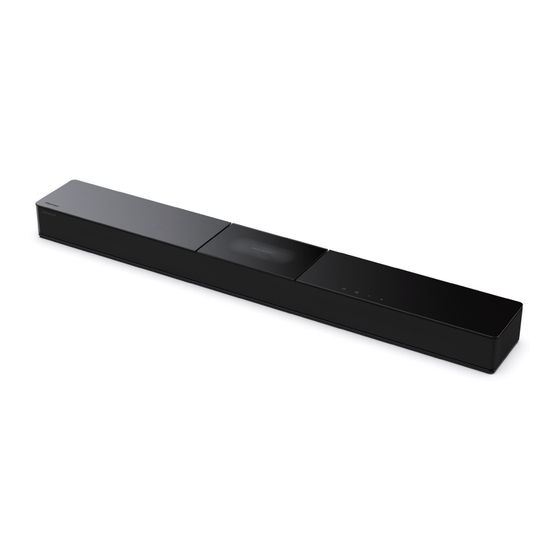

2.1 Channel Soundbar with Built in Subwoofer
USER MANUAL
Before using the soundbar, please read this manual thoroughly and retain
it for future reference.
Model: A620
EN
FR
ES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A620 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hisense A620

  • Page 1 2.1 Channel Soundbar with Built in Subwoofer Model: A620 USER MANUAL Before using the soundbar, please read this manual thoroughly and retain it for future reference.
  • Page 2: Table Of Contents

    Contents Important Safety Instructions ......................3 What’s in the Box ..........................5 Product Diagram ..........................6 Main Unit ........................................6 Remote Control .....................................7 Preparations ............................. 7 Prepare the Remote Control ................................7 Replace the Remote Control Battery .............................7 Placement and Mounting ..................................8 Wall Mounting (if using option-B)..............................8 Connections ............................
  • Page 3: Important Safety Instructions

    1. Important Safety Instructions C AUTION the third prong is provided for your safety. If the provided plug does not fit into your RISK OF ELECTRIC SHOCK outlet, consult an electrician for replacement DO NOT OPEN of the obsolete outlet. AV IS Protect the power cord from being walked on or pinched particularly at plugs, convenience...
  • Page 4 Battery usage CAUTION Caution: Use of controls or adjustments or To prevent battery leakage which may result in performance of procedures other than those bodily injury, property damage, or damage to the described herein, may result in hazardous apparatus: radiation exposure or other unsafe operation. Install all batteries correctly, + and - as To reduce the risk of fire or electric shock, do not marked on the apparatus.
  • Page 5: What's In The Box

    1. What’s in the Box Main unit Remote control AAA batteries x 2 ** Wall mount kit HDMI cable AC Power cord * Bracket(x2) / Wall Plug(x2) / screw(x2) / bracket screw(x2) Warranty card/Quick start manual / Wall mount guide Power cord quantity and plug type vary by regions.
  • Page 6: Product Diagram

    2. Product Diagram 2.1 Main Unit + / - (Volume) Buttons Remote Control Sensor Increase/decrease the volume level. Receive signal from the remote control. AC IN ~ Socket LED Indicators Connect to the power supply. Mode Lamp AUX Socket Standby ●...
  • Page 7: Remote Control

    2.2 Remote Control Switch the unit between ON and STANDBY mode. Select the play function. (SOURCE) SURR Adjust the surround ON/OFF. (BT) Select the Bluetooth mode. Press and hold (BT) button to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device.
  • Page 8: Placement And Mounting

    3.3 Placement and Mounting Placement If your TV is placed on a table, you can place the unit on the table directly in front of the TV stand, centered with the TV screen. If your TV is attached to a wall, you can mount the unit on the wall directly below the TV screen.
  • Page 9: Connections

    4. Connections Use the Hisense EzPlay Function For Hisense EzPlay, when the Soundbar connects 4.1 Use the HDMI ARC Socket with a Hisense TV via HDMI ARC, there will be a Soundbar Setting menu on the TV, and you can...
  • Page 10: Use The Optical Socket

    HDMI ARC HDMI ARC HDMI ARC 4.2 Use the OPTICAL Socket HDMI ARC Connect an OPTICAL cable to the T V ’s OPTICAL OUT socket and the OPTICAL socket on the unit. HDMI ARC HDMI ARC OPTICAL OPTICAL OPTICAL OPTICAL OPTICAL 4.5 Connect Power 4.3 Use the COAXIAL Socket...
  • Page 11: Auto-Standby / Auto-Wake

    5.2 Auto-Standby / Auto-Wake 5.4 Adjust the Volume Press the VOL + / VOL- buttons on the unit or • [Auto-Standby] The soundbar automatically turns on the remote control to adjust the volume. to Standby mode after about 15 minutes if the TV or the external soundbar is disconnected (or USB, BT •...
  • Page 12: Aux/ Optical/Coaxial/Hdmi Arc Operation

    TV, game console, DVD player, etc.) is set to PCM or the search mode. Dolby Digital (Refer to the user manual of the input Select “Hisense A620” in the pairing source device for its audio setting details) with list. After audio prompt, the system is HDMI ARC / OPTICAL/ COAXIAL input.
  • Page 13: Troubleshooting

    Listen to music from Bluetooth Device • Reduce the distance between the remote control and the unit. If the connected Bluetooth device supports • Insert the battery with its polarities (+/-) Advanced Audio Distribution Profile (A2DP), aligned as indicated. you can listen to the music stored on the •...
  • Page 14: Specifications

    10. Specifications Brand Hisense Model A620 Soundbar Power Supply 100-240V~ 50/60Hz 50 W Power Consumption < 0.5 W (StandBy) 500mA Hi-Speed USB (2.0) / FAT32 / FAT16 32G (max) , WAV / WMA / MP3 / FLAC. Dimension (WxHxD) 800 x 60 x 105 mm / 31.5" x 2.4" x 4.1"...
  • Page 15: Manuel D'utilisation

    Barre de son 2.1 canaux avec caisson de basses intégré Modèle : A620 MANUEL D'UTILISATION Avant d'utiliser la barre de son, veuillez lire attentivement ce manuel et le conserver pour référence ultérieure.
  • Page 16 Table des matières Consignes de sécurité ........................3 Contenu de la boîte .......................... 5 Schéma du produit ........................... 6 Unité principale .....................................6 Télécommande ......................................7 Préparatifs............................7 Préparer la télécommande ................................7 Remplacer les piles de la télécommande.............................7 Placement et montage ..................................8 Montage mural (si vous utilisez l’option-B) ..........................8 Connexions ............................
  • Page 17: Consignes De Sécurité

    1. Consignes de sécurité polarisée possède deux lames avec une plus large que l’autre. Une prise avec terre possède deux lames et une troisième broche pour la masse. La lame plus large et la troisième broche sont là pour votre sécurité. Si la prise fournie ne rentre pas dans votre prise murale, prenez contact avec un électricien pour le remplacement de la prise.
  • Page 18 Attention : • Tout changement ou modification de cet appareil non expressément approuvé par la L’utilisation de dispositifs de commande ou partie responsable de la conformité annulera de réglage ou l’exécution de procédures le droit de l’utilisateur d’utiliser l’appareil. autres que celles décrites dans le présent •...
  • Page 19: Contenu De La Boîte

    2. Contenu de la boîte Unité principale Télécommande Pile AAA × 2 ** Pour le Royaume- Pour l’Australie Pour l’UE Pour les États-Unis Kit du support mural Câble HDMI Cordon d’alimentation CA * Support (× 2) / Prise murale (× 2) / Vis (×...
  • Page 20: Schéma Du Produit

    3. Schéma du produit 3.1 Unité principale + / - Boutons (Volume) Capteur de télécommande Permettent d’augmenter/diminuer le Permet de recevoir le signal de la volume. télécommande. Prise AC IN ~ Voyants DEL Branchez ici le câble d’alimentation. Mode Lampe Prise AUX Rouge Veille...
  • Page 21: Télécommande

    3.2 Télécommande Permet de commuter l’appareil entre le mode MARCHE et le mode VEILLE. Sélectionnez le mode de lecture. (SOURCE) Permet d'activer/de désactiver le son 3 SURR ambiophonique. Permet de sélectionner le mode Bluetooth. Appuyez (BT) et maintenez enfoncé le bouton (BT) pour activer la fonction d’appariement en mode Bluetooth ou pour déconnecter le périphérique Bluetooth apparié...
  • Page 22: Placement Et Montage

    4.3 Placement et montage Position Si votre téléviseur est placé sur une table, vous pouvez placer l’appareil sur la table directement devant le support de téléviseur, au centre de l’écran du téléviseur. Si votre téléviseur est fixé à un mur, vous pouvez installer l’appareil sur le mur directement sous l’écran du téléviseur.
  • Page 23: Connexions

    5. Connexions Utiliser la fonction Hisense EzPlay Pour Hisense EzPlay, lorsque la barre de son se 5.1 Utiliser la prise HDMI ARC connecte à un téléviseur Hisense via HDMI ARC, le menu de réglage de la barre de son apparaît sur le La fonction ARC (Audio Return Channel) vous téléviseur et vous pouvez contrôler ce menu via la...
  • Page 24: Utiliser La Prise Optical

    HDMI ARC 5.2 Utiliser la prise OPTICAL Utilisez un câble audio RCA vers 3,5 mm HDMI ARC pour connecter la prise de sortie audio du HDMI ARC Connectez un câble OPTIQUE à la prise téléviseur et la prise AUX de l’appareil. OPTICAL OUT de votre téléviseur, puis HDMI ARC connectez le câble à...
  • Page 25: Fonctionnement De Base

    6. Fonctionnement de base 6.3 Sélection des modes • Appuyez plusieurs fois sur la touche (SOURCE) 6.1 Veille/MARCHE de l’appareil ou sur la télécommande pour sélectionner le mode souhaité. Lorsque vous connectez l’unité principale à la prise secteur pour la première fois, elle est en mode Veille. •...
  • Page 26: Réinitialisation Aux Paramètres D'usine

    TV, console de jeux, lecteur DVD, etc.) soit réglé sur PCM mode de recherche. ou Dolby Digital (reportez-vous au manuel de l’utilisateur Sélectionnez « Hisense A620 » dans la liste du périphérique source de signal pour les détails du d’appariement. Après l’invite audio, le système est réglage audio) avec entrée HDMI ARC / OPTIQUE /...
  • Page 27: Dépannage

    10. Dépannage connecté avec succès et l’indicateur bleu s’allume en continu. • Si vous souhaitez connecter votre barre de son à Pour garder la validité de la garantie, n’essayez jamais de un autre appareil Bluetooth, maintenez enfoncée la réparer le système. Si vous rencontrez des problèmes lors touche sur la télécommande pour déconnecter de l’utilisation de cet appareil, vérifiez les points suivants...
  • Page 28: Spécifications

    11. Spécifications Marque Hisense Modèle A620 Barre de son Alimentation électrique 100-240 V~ 50/60 Hz 50 W Consommation d’énergie < 0,5 W (Veille) 500 mA USB haute vitesse (2.0) / FAT32 / FAT16 32 Go (max) , WAV / WMA / MP3 / FLAC.
  • Page 29 Barra de sonido de 2.1 canales con subwoofer incorporado Modelo: A620 MANUAL DE USUARIO Antes de usar la barra de sonido, lea completamente este manual y consérvelo para futuras referencias.
  • Page 30 Contenido Instrucciones importantes de seguridad ..................3 Contenido de la caja ......................... 5 Diagrama de producto ........................6 Unidad principal ....................................6 Mando a distancia ....................................7 Preparaciones ........................... 7 Preparar el mando a distancia ................................7 Sustituir la batería del mando a distancia ............................7 Colocación y montaje ..................................8 Montaje en pared (si usa la opción B)............................8 Conexiones ............................
  • Page 31: Instrucciones Importantes De Seguridad

    1. Instrucciones importantes de seguridad tiene dos contactos y un tercero de puesta a tierra. El contacto más ancho o el tercero de puesta a tierra se proporciona para brindarle seguridad. Si la clavija proporcionada no encaja en su toma de corriente, consulte a un electricista para cambiar la toma de corriente PRECAUCIÓN obsoleta.
  • Page 32 Precaución: provocar lesiones corporales, daños a la propiedad o daños al aparato: El uso de controles o ajustes o la realización de procedimientos distintos a los descritos Instale todas las baterías correctamente, + y - en este documento, pueden provocar una como está...
  • Page 33: Contenido De La Caja

    2. Contenido de la caja Unidad principal Mando a distancia Baterías AAA × 2 ** Para el Reino Unido Para AUS Para la UE Para EE. Kit de montaje en pared Cable HDMI Cable de alimentación de CA * Soporte ( × 2) / Taquetes ( × 2) / Tornillo ( ×...
  • Page 34: Diagrama De Producto

    3. Diagrama de producto 3.1 Unidad principal + / - Botones (Volumen) Sensor de mando a distancia Aumentar/disminuir el nivel de volumen. Recibir la señal del mando a distancia. Indicadores LED Toma AC IN ~ Conecta al suministro de energía. Modo Toma AUX Rojo...
  • Page 35: Mando A Distancia

    3.2 Mando a distancia Alterne la unidad entre el modo ENCENDER y ESPERA. Seleccione la función de reproducción. (FUENTE) SURR ACTIVE/DESACTIVE sonido envolvente. Seleccione el modo de Bluetooth. Mantenga (BT) presionado el botón (BT) para activar la función de emparejamiento en el modo Bluetooth o desconectar el dispositivo Bluetooth emparejado existente.
  • Page 36: Colocación Y Montaje

    4.3 Colocación y montaje Colocación Si se coloca su TV sobre una mesa, puede colocar la unidad sobre la mesa directamente en frente de la base del TV, centrado con la pantalla del TV. Si su TV se monta en una pared, puede montar la unidad en la pared directamente por debajo de la pantalla de TV.
  • Page 37: Conexiones

    Para Hisense EzPlay, cuando la barra de sonido se 5.1 Utilice la toma HDMI ARC conecta con un TV Hisense a través de HDMI ARC, habrá un menú de configuración de la barra de La función ARC (Canal de retorno de audio) le sonido en el TV, y puede controlar este menú...
  • Page 38: Uso De La Toma Optical

    HDMI ARC HDMI ARC HDMI ARC 5.2 Uso de la toma OPTICAL HDMI ARC Conecte un cable ÓPTICO a la toma OPTICAL HDMI ARC OUT del TV y la toma OPTICAL de la unidad. HDMI ARC Audífonos OPTICAL OPTICAL OPTICAL OPTICAL OPTICAL 5.5 Conexión de alimentación...
  • Page 39: Operación Básica

    6. Operación básica 6.3 Seleccionar modos • Presione el botón (FUENTE) 6.1 Espera/ENCENDIDO repetidamente en la unidad o en el mando a distancia para seleccionar el modo deseado. Cuando conecte por primera vez la unidad a la • El indicador luminoso de la parte frontal de toma principal, la unidad estará...
  • Page 40: Activación/Desactivación De Indicaciones Por Voz

    6.9 ACTIVACIÓN/DESACTIVACIÓN de la configuración de audio de la fuente de entrada (por ejemplo, TV, consola de juegos, reproductor de indicaciones por voz DVD, etc.) esté configurada en PCM o Dolby Digital Encienda la barra de sonido, mantenga (consulte el manual del usuario del dispositivo de presionado el botón [ ...
  • Page 41: Escuchar Música De Un Dispositivo Bluetooth

    Active su dispositivo Bluetooth y seleccione el modo de búsqueda. Para mantener la garantía válida, nunca intente Seleccione “Hisense A620” en la lista de reparar el sistema usted mismo. Si encuentra emparejamiento. Después de la indicación problemas al usar esta unidad, revise lo siguiente de audio, el sistema se ha conectado antes de solicitar servicio.
  • Page 42: Especificaciones

    11. Especificaciones Marca Hisense Modelo A620 Barra de sonido Suministro de energía 100-240 V ~ 50/60 Hz 50 W Consumo de energía < 0,5 W (En espera) 500 mA USB de alta velocidad (2.0) / FAT32 / FAT16 32 GB (máx), WAV / WMA / MP3 / FLAC.
  • Page 43 The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Hisense is under license. Other trademarks and trade names are those of their respective owners. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
  • Page 44 WARNING: This product can expose you to chemicals including Lead, which is WARNING: This product can expose you to known to the State of California to cause chemicals including lead, which is known to the State of California to cause cancer and birth cancer.
