Hisense AX5120G Quick Start Manual

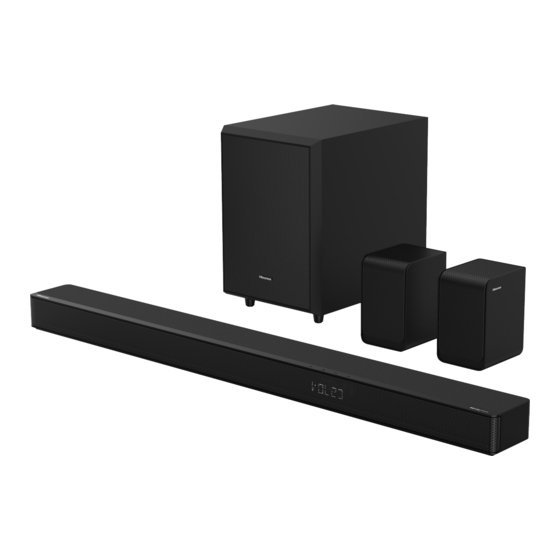

5.1.2 CH Soundbar with Wireless Subwoofer
Model: AX5120G
Roku, the Roku logo, Roku TV, Roku TV Ready, and the Roku TV Ready logo are trademarks and/or registered trademarks of Roku, Inc. This product is Roku TV
Ready-supported in the United States, United Kingdom, Mexico and Canada. Countries are subject to change. For the most current list of countries in which
this product is Roku TV Ready-supported, please email rokutvready@roku.com.
What's in the Box
Main Unit
RCA Cable
* Power cord quantity and plug type vary by regions.
1
Remote Control
1 Switch the unit between ON and STANDBY
mode.
2
Select the play mode.
(SOURCE)
3 SURR Adjust the surround ON/OFF.
4
(Bluetooth) Select the Bluetooth mode. Press and hold the
(Bluetooth) button to activate the pairing function
in Bluetooth mode or disconnect the existing
paired Bluetooth device.
5 EQ
Select MUSIC/MOVIE/NEWS/SPORT/NIGHT/GAME/AI
6 / Skip to previous/next track in Bluetooth / USB mode.
7 VOL+/VOL- Increase/decrease the volume level.
8
Play/pause/resume playback in Bluetooth / USB mode.
Press and hold the
9 BASS+/- Adjust bass level.
TREBLE+/-
10 Adjust treble level.
DIMMER+/- Adjust display brightness.
11
Mute or resume the sound.
12 (MUTE)
420W
Max Audio Power
Wireless Subwoofer Rear Surround Speakers
HDMI Cable
Optical Cable
button for 3s to enter
AC Power Cord x 2
For Main Unit / Wireless Subwoofer
Brackets (x4) /Bracket Screw (x4)
/ Wall Anchors (x4)
1 2
4
5
3
6
7
8
9 11
10
12
AC Power Cord x1 * Plug type varies by region
For Rear Surround Speakers (SR)
Remote Control /
AAA Batteries x 2
Replace the Remote Control Battery
1 Press and slide the back cover to
open the battery compartment of the
remote control.
2 Insert two AAA size batteries .
Make sure the (+) and (–) ends of the
batteries match the (+) and (–) ends
indicated in the battery compartment.
3 Close the battery compartment cover.
- Do not mix old and new batteries;
- Do not mix alkaline, standard (Carbon-Zinc) or
rechargeable (Ni-Cd, Ni- MH, etc.) batteries.
User Manual /
Quick Start Guide
