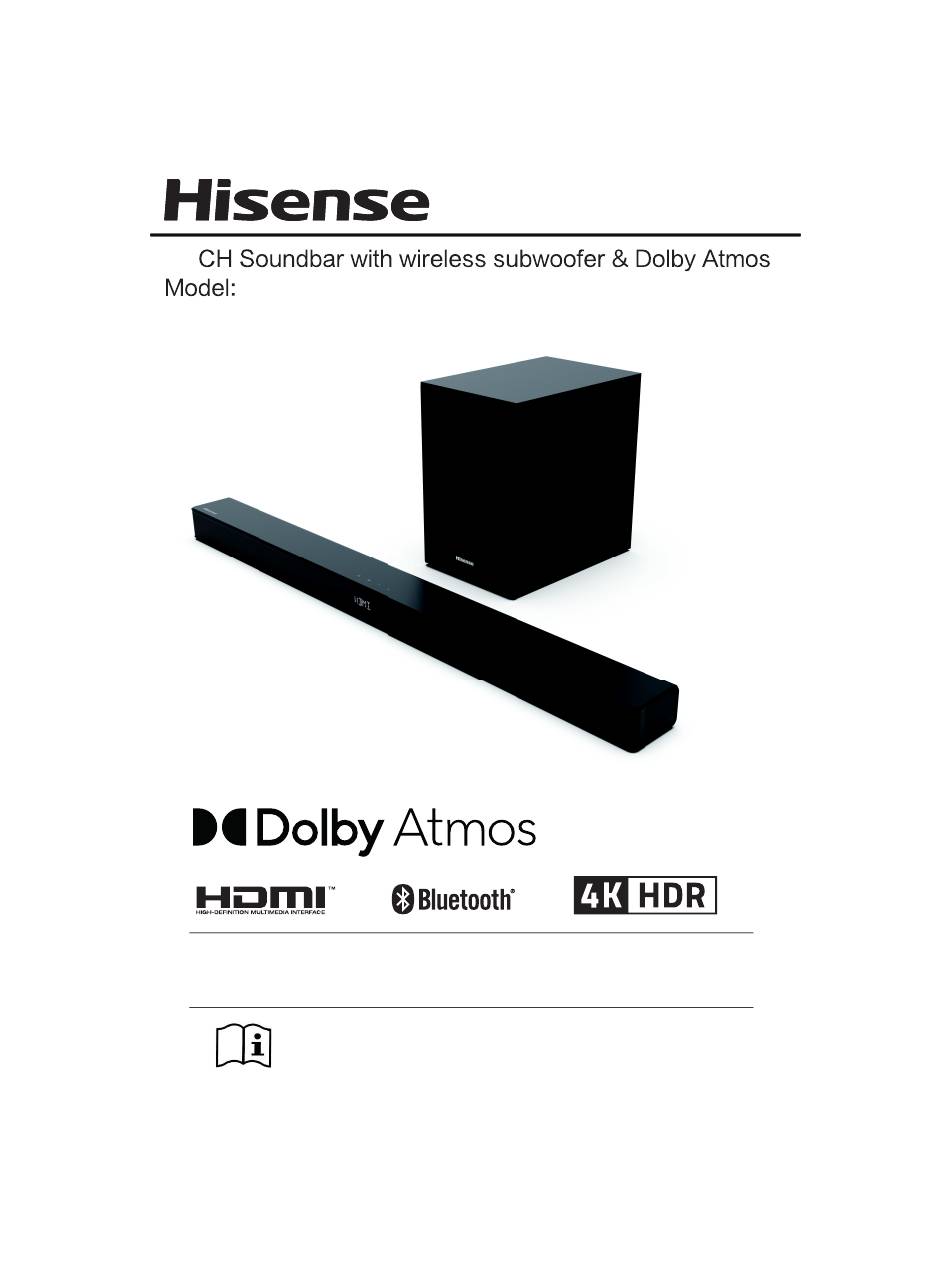

- Page 1 AX2107G USER MANUAL Before using the sound bar, please read this manual thoroughly and retain it for future reference.
-
Page 2: Table Of Contents
Contents Important Safety Instructions Basic Operation Safety Standby/ON Warning Select Modes Adjust the Bass/Treble Level FCC Information Turn the Surround Sound ON/OFF Adjust the Volume What’s in the Box Adjust the Brightness Set the Audio Delay Identifying the Parts Main Unit OPTICAL / COAXIAL / HDMI ARC Wireless Subwoofer Operation... -
Page 3: Important Safety Instructions
Important Safety Instructions third prong is provided for your safety. If the C AU TION RISK OF ELECTRIC SHOCK consult an electrician for replacement of the DO NOT OPEN obsolete outlet. 10 Protect the power cord from being walked on AV I S or pinched particularly at plugs, convenience RISQUE DE CHOC ÉLECTRIQUE... -
Page 4: Warning
Caution: Battery usage CAUTION Use of controls or adjustments or performance To prevent battery leakage which may result in of procedures other than those described bodily injury, property damage, or damage to the herein, may result in hazardous radiation apparatus: exposure or other unsafe operation. -
Page 5: Fcc Information
Caution: FCC Radiation Exposure Statement We hereby declares that this product is in This equipment complies with FCC radiation compliance with the essential requirements and exposure limits set forth for an uncontrolled other relevant provisions of Directive 2014/53/EU. environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body, This transmitter must not be co-located or... - Page 6 Supported input audio formats The audio formats supported by this system are as follows. Format Function HDMI LPCM 2ch LPCM 5.1ch LPCM 7.1ch Dolby Digital Dolby TrueHD Dolby Digital Plus Dolby Atmos - Dolby TrueHD Dolby Atmos - Dolby Digital Plus : Supported formats.
-
Page 7: What's In The Box
What’s in the Box Main Unit Remote Control / Wireless Subwoofer AAA Batteries x 2 AC Power Cord HDMI Cable Quick Start Guide... -
Page 8: Identifying The Parts
Identifying the Parts Main Unit 1 Remote Control Sensor Receive signal from the remote control. 2 Display Window Show the current status. (ON/OFF) button Switch the unit between ON and Standby mode. (SOURCE) button Select the play function. 5 VOL+/VOL- buttons Increase/decrease the volume level. -
Page 9: Remote Control
Remote Control Switch the unit between ON and STANDBY mode. (SOURCE) Select the play mode. Adjust the surround ON/OFF. 3 SURR (BT) Select the Bluetooth mode. Select MUSIC/MOVIE/NEWS/SPORT/NIGHT/ 5 EQ GAME Skip to previous/next track in BT/USB mode. Increase/decrease the volume level. 7 VOL+/VOL- Play/pause/resume playback in BT/USB mode. -
Page 10: Placement And Mounting
Placement and Mounting Placement A If your TV is placed on a table, you can place the unit on the table directly in front of the TV stand, centered with the TV screen. B If your TV is attached to a wall, you can mount the unit on the wall directly below the TV screen. Wall Mounting (if using option-B) Note: personnel only. -
Page 11: Connections
Connections Method 1: ARC (Audio Return Channel) Dolby Atmos® The ARC (Audio Return Channel) function allows Dolby Atmos gives you amazing experience you you to send audio from your ARC- compliant TV to have never before by overhead sound, and all the your soundbar through a single HDMI connection. -
Page 12: Use The Optical Socket
Use the OPTICAL Socket Connect Power Remove the protective cap of the OPTICAL Risk of product damage! socket, then connect an OPTICAL cable (not Ensure that the power supply voltage included) to the TV’s OPTICAL OUT socket and corresponds to the voltage printed on the back the OPTICAL socket on the unit. -
Page 13: Pair Up With The Subwoofer
Pair up With The Subwoofer Basic Operation Automatic pairing Plug the soundbar and the subwoofer into the Standby/ON mains sockets and then press on the unit or remote control to switch the unit to ON mode. socket, the main unit will be in Standby mode. The subwoofer and soundbar will automatically Press the button on the unit or on the... -
Page 14: Turn The Surround Sound On/Off
Turn the Surround Sound ON/OFF OPTICAL / COAXIAL /HDMI Press the SURR button on the remote control ARC Operation to turn on the surround sound. Press this 1 Ensure that the unit is connected to the TV or audio device. Adjust the Volume 2 Press the button repeatedly on the unit or... -
Page 15: Listen To Music From Bluetooth Device
(BT) button on the remote control to be searchable. The display will show “BT PAIRING” and you will hear "Paired" from the unit. 3 Select “Hisense AX2107G ” in the pairing list. After successful pairing, you will hear "Paired" and the display panel shows “BT_IN”. -
Page 16: Troubleshooting
Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service. No power Ensure that the AC cord of the apparatus is this unit on my Bluetooth device for properly connected . - Page 17 AX2107G Model Name Soundbar Power Supply AC100-240V~ 50/60Hz Power Consumption 60 W Standby Power < 0.5 W USB port for playback 0.5A USB Compatibility Hi-Speed USB (2.0) / FAT32 32G (max) , MP3/WAV/WMA Dimension (WxHxD) 960 x 58 x 85 mm (37.8 x 2.3 x 3.3 inch) Net weight 4.85 lbs (2.2 kg)
- Page 18 AX2107G...
