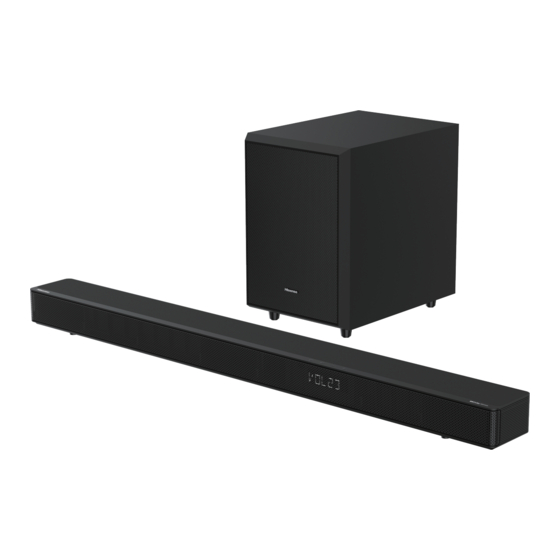

Hisense AX3120G Quick Start Manual

3.1.2CH Soundbar with Wireless Subwoofer
Model: AX3120G
Roku, the Roku logo, Roku TV, Roku TV Ready, and the Roku TV Ready logo are trademarks and/or registered trademarks of Roku, Inc. This product is Roku TV
Ready-supported in the United States, United Kingdom, Mexico and Canada. Countries are subject to change. For the most current list of countries in which
this product is Roku TV Ready-supported, please email rokutvready@roku.com.
What's in the Box
Main Unit
HDMI Cable
* Power cord quantity and plug type vary by regions.
1
Remote Control
1 Switch the unit between ON and STANDBY
mode.
2
Select the play mode.
(SOURCE)
3 SURR Adjust the surround ON/OFF.
4 (Bluetooth) Select the Bluetooth mode. Press and hold the
(Bluetooth) button to activate the pairing function
in Bluetooth mode or disconnect the existing
paired Bluetooth device.
5 EQ
Select MUSIC/MOVIE/NEWS/SPORT/NIGHT/GAME/AI
6
/ Skip to previous/next track in Bluetooth / USB mode.
7 VOL+/VOL- Increase/decrease the volume level.
8 Play/pause/resume playback in Bluetooth / USB mode.
Press and hold the
9 BASS+/- Adjust bass level.
TREBLE+/-
Adjust treble level.
10
DIMMER+/- Adjust display brightness.
11
Mute or resume the sound.
12 (MUTE)
360W
Max Audio Power
AC Power Cord x 2
Wireless Subwoofer
For Main Unit / Wireless Subwoofer
Brackets (x2) /Bracket Screw (x2) Remote Control /
AAA Batteries x 2
/ Wall Anchors (x2)
button for 3s to enter
* Plug type varies by region
User Manual /
Quick Start Guide
1 2
4
5
3
6
7
8
9 11
10
12
Optical Cable
Replace the Remote Control Battery
1 Press and slide the back cover to
open the battery compartment of the
remote control.
2 Insert two AAA size batteries .
Make sure the (+) and (–) ends of the
batteries match the (+) and (–) ends
indicated in the battery compartment.
3 Close the battery compartment cover.
- Do not mix old and new batteries;
- Do not mix alkaline, standard (Carbon-Zinc) or
rechargeable (Ni-Cd, Ni- MH, etc.) batteries.
