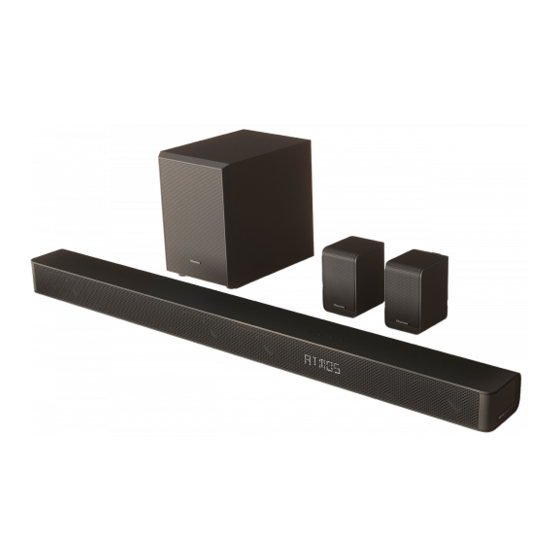

5.1CH Soundbar with Wireless Subwoofer
Model: AX5100G
What's in the Box
Main Unit
RCA Cable
* Power cord quantity and plug type vary by regions.
1
Remote Control
1
Switch the unit between ON and STANDBY
mode.
2
Select the play mode.
(SOURCE)
3
SURR
Adjust the surround ON/OFF.
4
(BT)
Select the Bluetooth mode. Press and hold the
(BT) button to activate the pairing function
in Bluetooth mode or disconnect the existing
paired Bluetooth device.
5
EQ
Select MUSIC/MOVIE/NEWS/SPORT/NIGHT/GAME/AI
6
/
Skip to previous/next track in BT / USB mode.
7
VOL+/VOL- Increase/decrease the volume level.
8
Play/pause/resume playback in BT / USB mode.
Press and hold the
BASS+/-
9
Adjust bass level.
TREBLE+/- Adjust treble level.
10
DIMMER+/- Adjust display brightness.
11
Mute or resume the sound.
12
(MUTE)
06382
Wireless Subwoofer
Rear Surround Speakers
HDMI Cable
Optical Cable
button for 3s to enter
AC Power Cord x 2
For Main Unit / Wireless Subwoofer
Brackets (x4) /Bracket Screw (x4)
/ Wall Anchors (x4)
1
2
4
5
3
6
7
8
9
11
10
12
AC Power Cord x1
* Plug type varies by region
For Rear Surround Speakers (SR)
Remote Control /
AAA Batteries x 2
Replace the Remote Control Battery
1
Press and slide the back cover to
open the battery compartment of the
remote control.
2
Insert two AAA size batteries .
Make sure the (+) and (–) ends of the
batteries match the (+) and (–) ends
indicated in the battery compartment.
3
Close the battery compartment cover.
-
Do not mix old and new batteries;
-
Do not mix alkaline, standard (Carbon-Zinc) or
rechargeable (Ni-Cd, Ni- MH, etc.) batteries.
EN
User Manual /
Quick Start Guide
