SETUP PROCEDURES

1. Connect a headset to the beltpack. The beltpack headset connection supports dual mini and
single mini headsets. Dual mini connectors can be inserted in either direction. Single mini
connectors can be inserted in either port of the headset connection.
2. Power on. Press and hold the POWER button for three (3) seconds, until the screen turns on.
3. Select a Group. Press and hold the MODE button for 3 seconds, until the "GRP" symbol is blinking
on the LCD. Then, use the VOLUME +/− buttons to select a group number from 0–51 (or 0–24 for
PMC-900M-AN model). Short-press MODE to save your selection and proceed to ID setting.
Beltpacks must have the same group number to communicate.

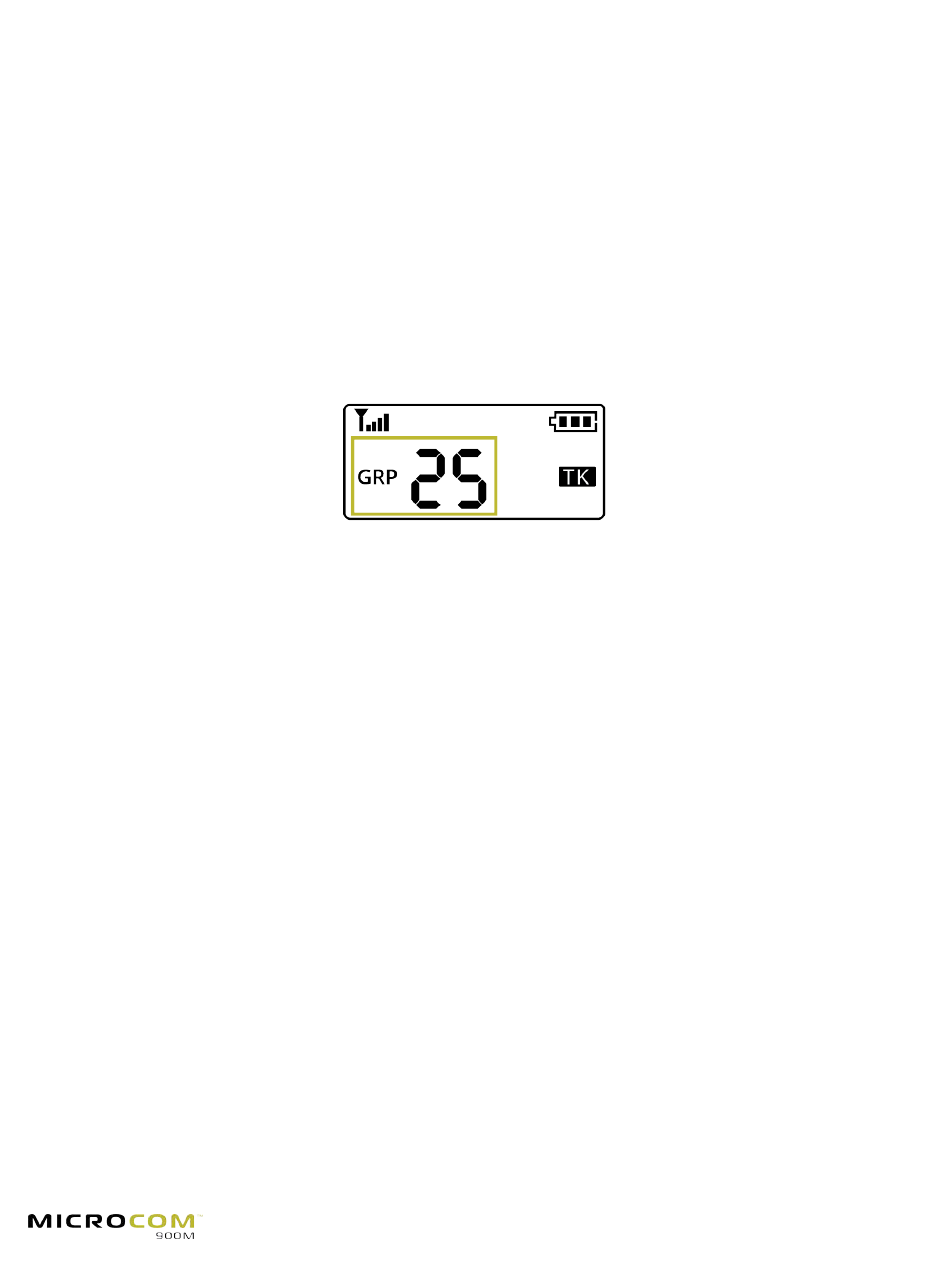

Figure 1 Group Edit Screen
