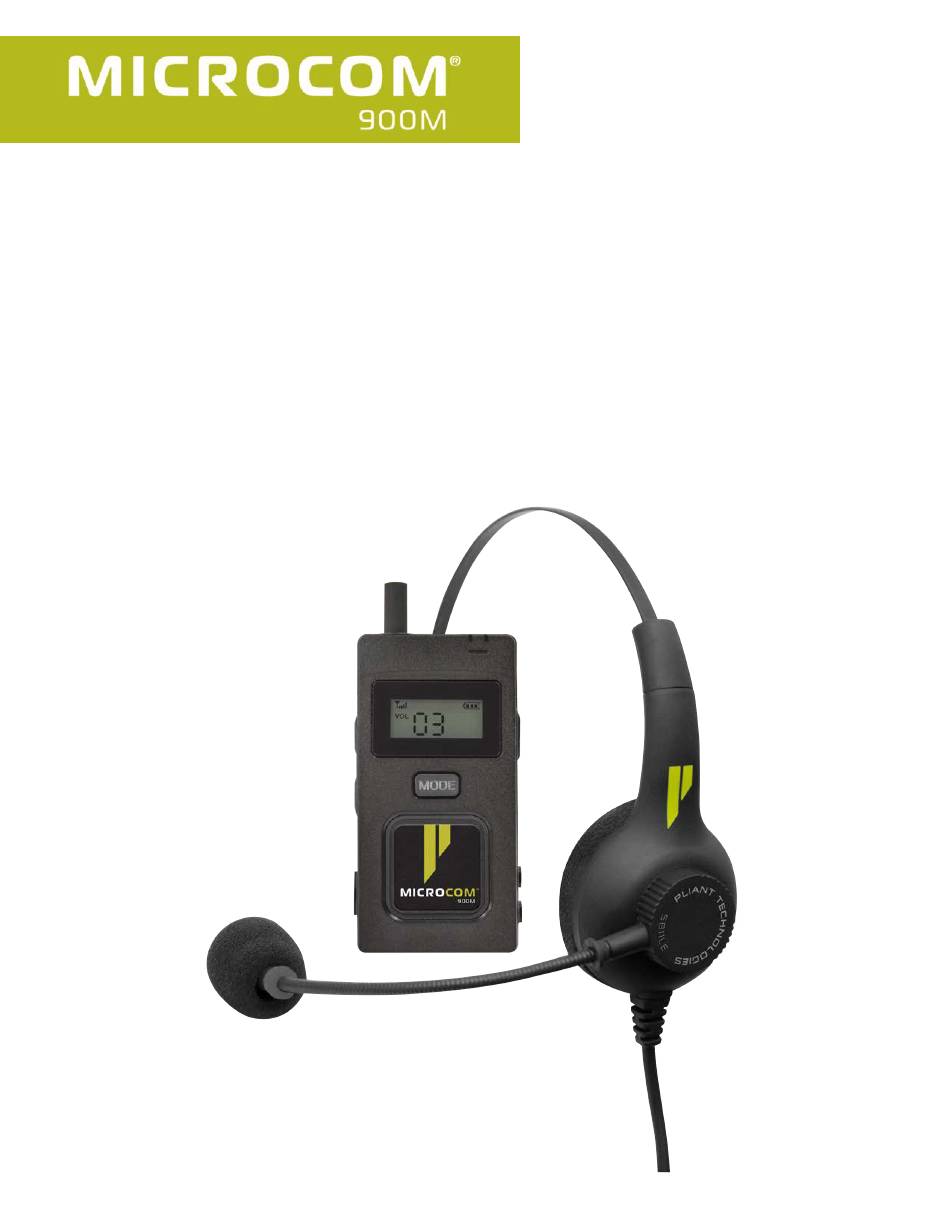

- Page 1 MicroCom 900M OPERATING MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Table of Contents Introduction What's included with the MicroCom 900M? BeltPack Overview Setup Procedures Operation BeltPack Menu Settings Device Specifications Product Care and Maintenance Product Support License Information Warranty Information Table of Contents - ii... -
Page 3: Introduction
In order to get the most out of your new MicroCom 900M, please take a few moments to read this manual completely so that you better understand the operation of this product. For questions not addressed in this manual, feel free to contact the Pliant Technologies Customer Support Department. -
Page 4: Product Features
Product Features • Economical Single-Channel System • Simple to Operate • Up to 5 Full-Duplex Users • Unlimited Shared Users • Unlimited Listen-Only Users • 900MHz Frequency Band • Encrypted FHSS Technology • Small and Lightweight • Water-Resistant Construction • Approx. 8-Hour Battery Life •... -
Page 5: What's Included With The Microcom 900M
PHS-IEL-M MicroCom in-ear headset, single ear, left only PHS-IER-M MicroCom in-ear headset, single ear, right only PHS-IELPTT-M MicroCom in-hear headset with push-to-talk (PTT) button, single ear, left only PHS-LAV-DM MicroCom lavalier microphone and eartube PHS-LAVPTT-DM MicroCom lavalier microphone and eartube with PTT button... -
Page 6: Beltpack Overview
BELTPACK OVERVIEW BeltPack Overview - 4... -
Page 7: Setup Procedures
LCD. Then, use the VOLUME +/− buttons to select a group number from 0–51 (or 0–24 for PMC-900M-AN model). Short-press MODE to save your selection and proceed to ID setting. Beltpacks must have the same group number to communicate. - Page 8 4. Select an ID. When “ID” begins to blink on the LCD, use the VOLUME +/− buttons to select a unique ID number. Press and hold MODE to save your selection and exit the menu. Pack IDs range from 00–04. Figure 2 ID Edit Screen One pack must always use the “00”...
-
Page 9: Operation
Operating Multiple MicroCom Systems in One Location Each separate MicroCom system should use the same Group for all beltpacks in that system. Pliant recommends that systems operating in proximity to one another set their Groups to be at least ten (10) values apart. -
Page 10: Beltpack Menu Settings
BELTPACK MENU SETTINGS The following settings are adjustable from the beltpack menu. To access the menu, press and hold the MODE button for 3 seconds, until the “GRP” symbol is blinking on the LCD. Then, short-press the MODE button the specified number of times to access the setting you wish to change. - Page 11 Receiving Mode Selection - This setting allows you to set the beltpack to full duplex mode (both receiving and transmitting) or set it to receive only (i.e., listen only, which disables the beltpack’s talk function). To switch the receiving mode setting, access the beltpack menu, then press the MODE button three (3) times.
-
Page 12: Menu Options
Menu Options Options Menu Setting Description Sidetone Sidetone Off S1, S2, S3*, S4, S5 Sidetone Levels 1–5 Receiving Mode Receiving and Transmitting Mode Receive-Only Mode (Listen-Only) Mic Sensitivity Level C1*, C2, C3, C4, C5 Mic Sensitivity Levels 1–5 Audio Output Level Audio Output Low Audio Output High * Default Settings Noted with Asterisk... - Page 13 Recommended Settings by Headset The following table provides recommended MicroCom settings for several common headset models. Recommended Setting Headset Model Mic Sensitivity Level Audio Output Level Headset with boom mic Headset with lavalier mic Use the diagram of the wiring for the beltpack’s TRRS connector if you choose to connect your own headphones.
-
Page 14: Device Specifications
Actual operating performance may vary. Manufacturer reserves the right to change specifications to reflect latest changes in technology and improvements at any time without notice. Note: PMC-900M-AN is approved for use in Australia and New Zealand and operates within the 915–928 MHz frequency range. -
Page 15: Product Care And Maintenance
PRODUCT CARE AND MAINTENANCE Clean using a soft, damp cloth. CAUTION: Do not use cleaners that contain solvents. Keep liquid and foreign objects out of the device openings. If the product is exposed to rain, gently wipe off all surfaces, cables, and cable connections as soon as possible and allow unit to dry before storing. -
Page 16: Product Support
PRODUCT SUPPORT Pliant Technologies offers technical support via phone and email from 07:00 to 19:00 Central Time (UTC−06:00), Monday through Friday. 1.844.475.4268 or +1.334.321.1160 technical.support@plianttechnologies.com Visit www.plianttechnologies.com for product support, documentation, and live chat for help. (Live chat available 08:00 to 17:00 Central Time (UTC−06:00), Monday through Friday.) Returning Equipment for Repair or Maintenance All questions and/or requests for a Return Authorization Number should be directed to the Customer Service department (customer.service@plianttechnologies.com). -
Page 17: License Information
LICENSE INFORMATION Warning: Changes or modifications to this device not expressly approved by Pliant could void the user’s authority to operate the equipment. PLIANT TECHNOLOGIES MICROCOM™ FCC COMPLIANCE STATEMENT 00004130 (FCCID: YJH-MC-11) 00004130-B and 00004303 (FCCID: YJH-MCS-900) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 18 device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The antennas used for this transmitter must be installed to provide a separation distance of at least 5 mm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
-
Page 19: Warranty Information
WARRANTY INFORMATION Limited Warranty Subject to the conditions of this Limited Warranty, CrewCom® and MicroCom® products are warranted to be free from defects in materials and workmanship for a period of two years from the date of sale to the end user, under the following conditions: First year of warranty included with purchase. -
Page 20: Parts Limited Warranty
product is suitable for the user’s intended purpose. ANY AND ALL IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY. NEITHER PLIANT TECHNOLOGIES, LLC NOR ANY AUTHORIZED RESELLER WHO SELLS PLIANT PROFESSIONAL INTERCOM PRODUCTS IS LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND.
