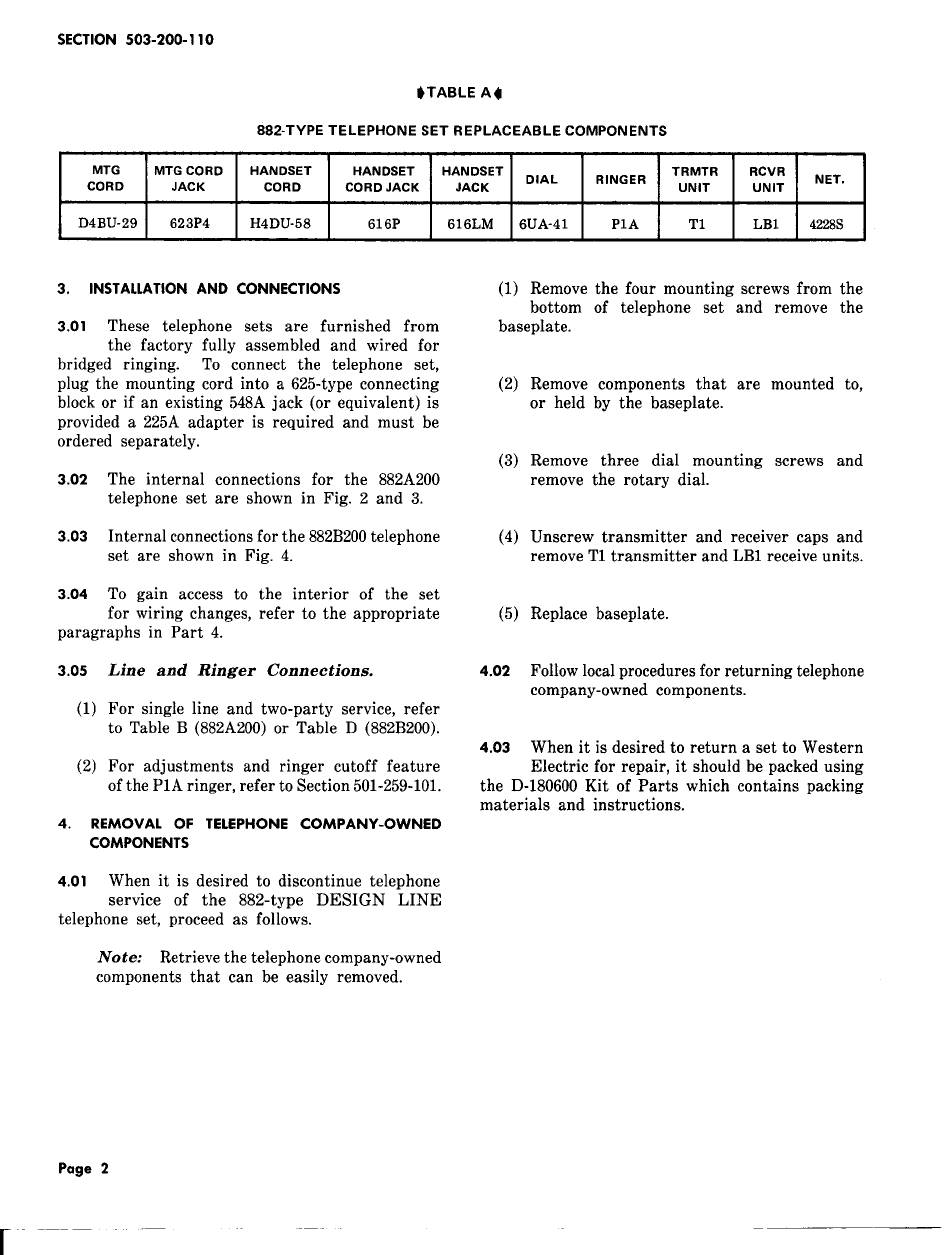

Bell System Practices 882A200 Manual page 2

sEciloN 503-200-il0
IT A B LE A '
8 8 2.T YP E T EL E P HONE S E T R E PL A C E A B LE C O M P ON E N T S
MTG
CORD
MTG CORD
JACK
HANDSET
C O RD
HANDSET
C O RD J ACK
HANDSET
JACK
D IA L R IN GE R
TRMTR
U N IT
R C V R
U N IT
NET,
D4BU-29
623P4 H4DU.58
61 6P
6 16 L M
6UA-41
P 1 A
T1 LB1 42285
3. INSTAIIATION AND CONNECTIONS
(1) Remove the four mounting screws from the
bottom of teleohone set and remove the
3.01 These telephone sets are furnished from
baseplate.
the factory fully assembled and wired for
bridged ringing. To connect the telephone set,
plug the mounting cord into a 625-type connecting (2) Remove components that are mounted to,
block or if an existing 548A jack (or equivalent) is
or held by the baseplate.
provided a 2254, adapter is required and must be
ordered separately.
(3) Remove three dial mounting screws and
3.02 The internal connections for the 882A200 remove the rotarv dial.
telephone set are shown in Fig. 2 and 3.
3.03 Internal connections for the 8828200 telephone
(4) Unscrew transmitter and receiver caps and
set are shown in Fig. 4. remove T1 transmitter and LB1 receive units.
3.04 To gain access to the interior of the set
for wiring changes, refer to the appropriate
(5) Replace baseplate.
paragraphs in Part 4.
3.05 Line and Ringer Connections. 4.o2 Follow local procedures for returning telephone
company-owned components.
(1) For single line and two-party service, refer
to Table B (882A200) or Table D (8828200).
4.03 When it is desired to return a set to Western
(2) For adjustments and ringer cutoff feature
Electric for repair, it should be packed using
ofthePlAringer,refertoSectionS0l-259-101.
the D-180600 Kit of Parts which contains packing
materials and instructions.
4. RCMOVAT OF TEIEPHONE COMPANY-OWNED
COMPONENTS
4.01 When it is desired to discontinue telephone
service of the 882-type DESIGN LINE
telephone set, proceed as follows.
Note: Retrieve the telephone company-owned
components that can be easily removed.
Poge 2
