Summary of Contents for Superior CAMILLA

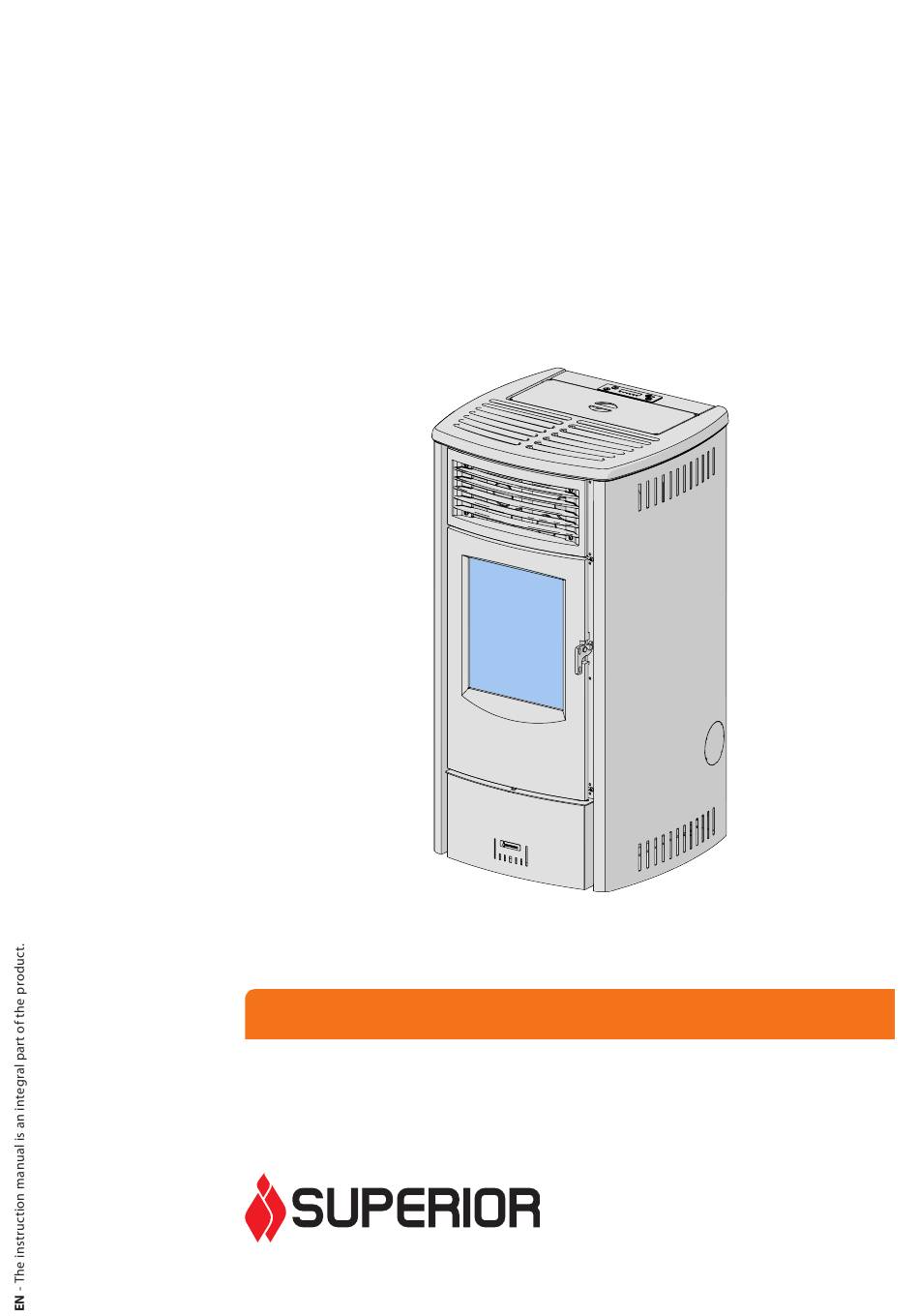

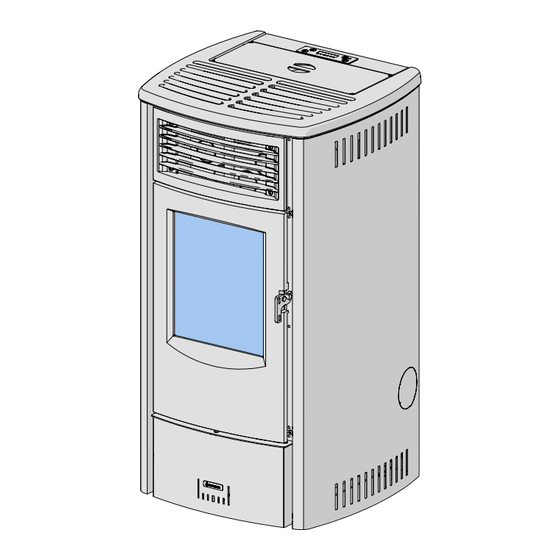

- Page 1 The instruction manual is an integral part of the product Pellet stoves CAMILLA PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE...
- Page 2 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Dear Customer, We thank you for having chosen one of our products, the fruit of extensive and continuous research for a superior product in terms of safety, reliability and performance. In the documentation supplied, you will find all the information and advice you need to use your product as safely and efficiently as possible.
-
Page 3: Table Of Contents
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE CONTENTS GENERAL INFORMATION PRODUCT INFORMATION Product description Part identification Safety devices Check devices Product identification data Characteristics Accessories upon request Technical data Sizes FUEL Pellet specifications Information regarding pellet loading GENERAL INFORMATION REGARDING THE SYSTEM Installation room Fresh air intake Chimney... -
Page 4: General Information
(authorized technical assistance centre). in the sections " FAULTS " or " MESSAGES - - Superior cannot be held liable for situations of risk, defects, SAFETY WARNINGS - ANOMALIES ". damage, product malfunctioning or for damage to objects,... - Page 5 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Product use may cause some surfaces to During the operation and/or cooling phase, become extremely hot (the glass, the exter- slight creaking noises may be heard. This nal surfaces, the handles, the smoke outlet is not considered a defect, but is a conse- passage).
-
Page 6: Product Information
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PRODUCT INFORMATION Do not use the appliance as an incinerator or in any way other than that for which it was designed. PRODUCT DESCRIPTION Do not use the appliance if the glass or seals ■ on the door are damaged. -
Page 7: Part Identification
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PART IDENTIFICATION Pellet hopper cover 21 Pellet indicator Pellet hopper grille 22 Auger motor 23 Environment fan/s Cladding 24 Smoke outlet Door 25 Pressure switch Ceramic glass 26 Smoke intake/Extractor fan Door handle 27 Metal structure Ash drawer Grate deflector Grate... -
Page 8: Safety Devices
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Electronic control unit: SAFETY DEVICES the electronic control unit signals and controls a series of events including power and ignition failure. The appliance is equipped with the following safety and check devices which stop the stove from operating if any faults occur. If any safety warnings or alarms are activated, please consult the “... -
Page 9: Product Identification Data
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE PRODUCT IDENTIFICATION DATA CHARACTERISTICS Each product is identified in the following way: Structure: - IDENTIFICATION DATA PLATE (1) with the model (A) and ap- - in steel pliance performance specifications Cladding: - SERIAL NUMBER PLATE (2) with the serial number of the ap- - in painted steel pliance (B) Firebox:... -
Page 10: Technical Data
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE TECHNICAL DATA Model CAMILLA Type SP450-01 Unit of meas- at nominal at part load Description urement heat output heat output Fuel natural pure wood pellets Type of appliance (Designation) CC50 Heat Output Heat input Space heat output... -
Page 11: Sizes
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE (values in mm) SIZES CAMILLA Fig. 6 80 mm 60 mm A Smoke outlet standard position Combustion air duct CAMILLA with SMOKE FLUE KIT Fig. 7 80 mm 60 mm A Smoke outlet Combustion air duct DT2006149_H072653EN0_02... - Page 12 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE CAMILLA COAXIAL SMOKE OUTLET KIT Fig. 8 1023 80 / 130 mm A Smoke outlet DT2006149_H072653EN0_02...
-
Page 13: Fuel
A1 (EN 17225- INFORMATION REGARDING PELLET LOADING In order to guarantee efficient product operation, Superior has tested and programmed its own products with pellets with the In order to load pellets into the hopper, we recommend removing characteristics as shown in the table. - Page 14 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 3.2.1 Pellet indicator When the red reload indicator can be seen inside the hopper, it is possible that the auger is not perfectly loaded which would cause irregular pellet unloading in the grate and start-up failure. Fig.
-
Page 15: General Information Regarding The System
Below is some general information regarding the system, appli- If the existence of more than one appliance is permit- ■ ance installation and products manufactured by Superior ted, all regulations and provisions supplied by the manufacturer of each individual appliance are to be respected. -
Page 16: Fresh Air Intake
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE The connecting pipe for the combustion air inlet of the appliance must comply with the following requirements: In the appliance installation room: - have a diameter equal to or greater than the diameter of the it is not permitted to install liquid fuel appliances with ■... -
Page 17: Chimney Terminal
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE - must be constructed in such a way as to ensure that in the event of winds from all directions and angle, discharge of the combustion products is assured (chimney terminal with anti downdraught cowl) - must be positioned outside the reflux area - must be positioned taking into account the roof inclination and respect the distances in relation to buildings, plants, aerials or... - Page 18 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE In particular, remember that the connecting flue pipe: Some systems – particularly those with appliances equipped with - must be in compliance with regulations, equipped with CE a boiler – may cause condensation to form, even if you abide by marking and be made respecting all safety requirements the indications provided.
- Page 19 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Fig. 14 Fig. 15 DT2006149_H072653EN0_02...
-
Page 20: Preparations For Installation
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE After having removed the material protecting the appliance, re- PREPARATIONS FOR INSTALLATION move all the retainers securing the appliance to the pallet and then remove it from the pallet. Product installation and maintenance must be carried Make sure that while working, the lower parts of the out exclusively by qualified personnel with sufficient side panels and the lower front panel do not get mis-... -
Page 21: Installation
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Side panels INSTALLATION Proceed as follows: - open the firebox door - loosen the screws (1) For all installation and maintenance interventions which require access to inside the cladding, the smoke chamber or access to electrical and electronic parts, the user must contact a T.A.C. -
Page 22: Combustion Air Connection
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Keep any combustible or heat-sensitive products such Distance (F): for information regarding the safety dis- as wooden furniture, curtains, carpets, fabric, clothing, tances, installation methods, maintenance, safety and ornaments and flammable liquids well away from the insulation, please refer to the indications attached pro- product while it is in operation (where not indicated, vided by the connecting flue pipe manufacturer. -
Page 23: Connection To The Smoke Outlet
In this case however, Superior can only ensure good operation for Fig. 25 the products it manufactures or that it has tested and recognized... - Page 24 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 6.4.1 Power cable For installation: - the appliance must NOT be connected to the electrical power The appliance comes supplied with a power cable which must be supply connected to a 230V~50Hz socket. - remove the right panel (refer to the section " ACCESS TO THE INTERNAL PARTS OF THE PRODUCT ") The appliance must be connected to an effective earth- - connect the cable (2) to the external device (1)
-
Page 25: Start-Up And Operating Test
It is therefore un- derstood that depending on whether heating is via air or water, Only connect devices approved by Superior. For more the hot air ducts present or the hydraulic circuit are to be checked information on installation and operation, please con- along with other connected heat sources. -
Page 26: Humidifier (Accessories)
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE HUMIDIFIER (ACCESSORIES) 10 CLEANING AND MAINTENANCE The appliance is equipped with a system to humidify the environ- ment (accessories). For all installation and maintenance interventions which require access to inside the cladding, the smoke The humidifier is to be filled with water on average chamber or access to electrical and electronic parts, the every two or three days and in any case, on the basis of user must contact a T.A.C. -
Page 27: Scheduled Maintenance
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.1 SCHEDULED MAINTENANCE Recommended interval Interventions which may be carried out by the user Glass 1 day Scheduled maintenance must be carried out at least ONCE A YEAR and in any case, before the commission- Brazier and grate support 1 day ing of the appliance after a long period of inactivity. -
Page 28: Opening The Door
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.3 OPENING THE DOOR 10.5 DISPOSAL OF ASHES Use the firedoor opening tool, which is supplied as standard, to Ash from natural (non-treated) wood burned in stoves or open open the door as follows: fireplaces is composed mainly of calcium, silicon, potassium - take hold of the firedoor opening tool (1) and magnesium. -
Page 29: Cleaning The Grate And Grate Support
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 10.7 CLEANING THE GRATE AND GRATE 10.8 CLEANING THE SMOKE CHAMBER SUPPORT The grate area must be cleaned. Recommended cleaning frequency: refer to the section " SCHEDULED MAINTENANCE ". This operation facilitates an optimal heat exchange Recommended cleaning frequency: refer to the section ■... -
Page 30: Cleaning The Extractor Fan
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE Proceed as follows: - clean the hole for the vacuum detection (D) inside the smoke - remove the screw (1) chamber as indicated in the figure: for the appliance to operate - remove the lower panel (2) correctly, the hole must always be free of dust and ash - unscrew the screws (3) and remove the cover (4) - remove the gasket (5) -
Page 31: Cleaning The Room Fan
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE “TEE” connector 10.10 CLEANING THE ROOM FAN Proceed as follows: - Remove the plug from the "TEE" fitting (1) and clean the pipes Any dust deposits on the fan blades may make the fans noisy dur- ing operation. -
Page 32: When Not In Use
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 11 WHEN NOT IN USE 12 DISPOSAL OF PRODUCT AT END OF PRODUCT LIFE When shutting the appliance down at the end of the season or if a long period of inactivity is anticipated, proceed as follows: The owner is exclusively responsible for destroying and disposing - remove all pellets from the appliance of the product in compliance with the regulations in force as re-... -
Page 33: Reference Standards
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 13 REFERENCE STANDARDS Country of application: The European Union EN 1443 Chimneys - General requirements EN 1457-1 Chimneys - Clay/ceramic flue liners - Part 1: Flue liners operation under dry conditions – Requirements and test methods EN 1457-2 Chimneys - Clay/ceramic flue liners - Part 2: Flue liners operating under wet conditions - Requirements and test... -
Page 34: Appendix
PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE 14 APPENDIX Identification data plate: key Please read and comply with the instructions for installation, use and maintenance. Model = Model Type = Type DoP = Declaration of performance Design.App. = Type of appliance (Designation) N.Body = Notified body Pn = Nominal heat output Pp = Part load heat output... - Page 35 PRODUCT INFORMATION, INSTALLATION AND MAINTENANCE DT2006149_H072653EN0_02...
- Page 36 Via Montello, 22 31011 Asolo (TV) - ITALY Tel. +39.04235271 - Fax +39.042355178 www.superiorstufe.com e-mail: info@superiorstufe.com...
