Summary of Contents for Superior SAMANTA THERMO 11

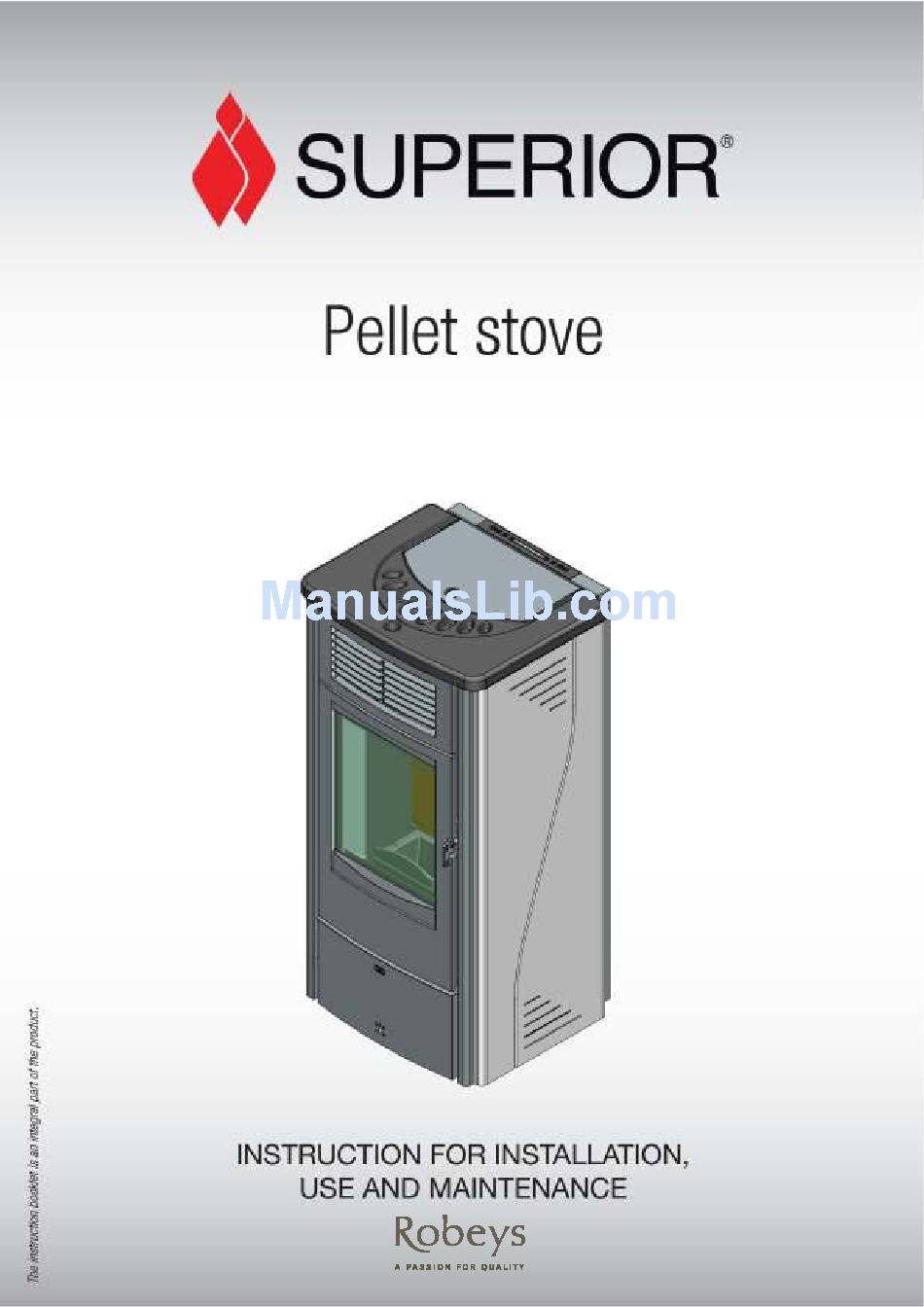

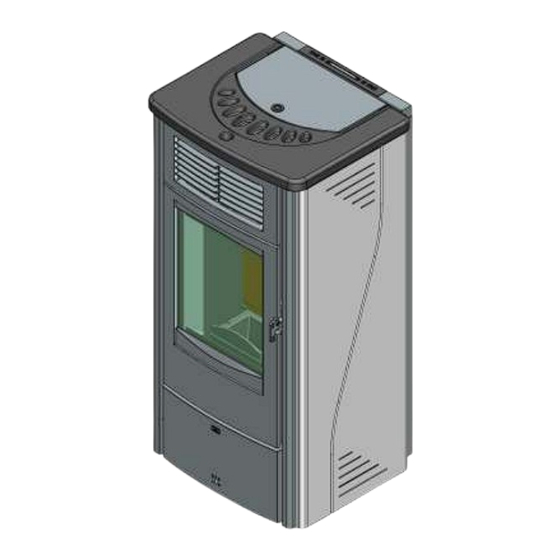

- Page 1 SAMANTA THERMO 11, SABRINA THERMO 11, SVEVA THERMO 11, SIRIA THERMO 11...
- Page 2 PIAZZETTA PELLET BOILERS AND STOVES SUPPLEMENTARY INSTALLATION INSTRUCTIONS FOR THE UK MARKET TO BE READ IN CONJUNCTION WITH THOSE IN THE INSTRUCTION BOOKLET READ THE INSTRUCTION BOOKLET AND THESE SUPPLEMENTARY INSTRUCTIONS CAREFULLY BEFORE INSTALLATION These instructions together with those in the instruction booklet cover the basic principles to ensure the satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions.
-
Page 3: Connection To The Flue
PREPARATORY WORK AND SAFETY CHECKS IMPORTANT WARNING This stove must not be installed into a chimney that serves any other heating appliance. There must not be an extractor fan fitted in the same room as the stove as this can cause the stove to emit fumes into the room. -
Page 4: Technical Data
Adequate provision e.g. easily accessible soot door or doors must be provided for sweeping the chimney and connecting fluepipe, also to permit visual checks on the integrity of the flue when the appliance is serviced. Ensure that all access doors in the flue can be adequately sealed after service. Hearth The hearth should be able to accommodate the weight of the stove and its chimney if the chimney is not independently supported. -
Page 5: Installation
On completion of the installation and commissioning ensure that the operating instructions for the stove are left with the customer. Ensure to advise the customer on the correct use of the appliance. Advise the correct pellet fuel to be used on the stove and warn them to use only the recommended fuels for the stove. It is important that the fuel is stored in a dry place, particularly once a bag is opened. -
Page 6: Fuel
Chimney cleaning The chimney should be swept at least twice a year. It is important that the flue connection and chimney are swept prior to lighting up after a prolonged shutdown period. The installer will have provided access for flue cleaning, such as a soot door. After sweeping the chimney the stove flue outlet and the flue pipe connecting the stove to the chimney must be cleaned. - Page 7 USER OPERATING INSTRUCTIONS Please read the important notices given above before referring to the main instruction book for detailed operating instructions. Recommended fuels The stoves are designed to burn good quality wood pellets only, no other fuel can be used. The pellets must be kept dry at all times otherwise malfunction can occur.
- Page 9 SECTION TITLE PAGE GENERAL RULES SINGLE FLUEWAY OR CHIMNEY SOOT INSPECTION CHIMNEY STACK FRESH AIR INTAKE INSTALLATION ENVIRONMENT LOAD CAPACITY OF THE FLOOR HEATING CAPACITY MINIMUM SAFETY DISTANCES CONNECTION TO THE FLUE 1.10 CONNECTING TO A CONVENTIONAL CHIMNEY 1.11 USING AN EXTERNAL FLUE 1.12 PREVENTION OF DOMESTIC FIRES FEATURES AND TECHNICAL DATA...
- Page 26 The appliance is designed for connection to an external room thermostat (NOT SUPPLIED). To connect an external thermostat use a 2x0.5mm2 cable, clamped with a PG7 cable gland inserted in the appropriate hole in the rear panel (Fig. 32 ).
- Page 30 Do not allow sawdust to accumulate on the bottom of the hopper. Do not leave leftover pellets on top of the stove - they could catch fire!
- Page 58 Piazzetta Pellet Stove Guide to Setting Flue Parameters (Installer Information Only) This guide is supplementary to the Installation Instructions, which should be read before setting the flue fan parameters. It must only be carried out by an authorised installation engineer with the correct equipment. Whilst the appliance will normally operate as set in the factory, for optimum performance the flue gas fan must be adjusted to allow for variations in individual flues.
- Page 59 After setting parameters remove the micromanometer and ensure that the brass cap nut is refitted Setting Parameters using the Keypad on the Stove (Superior) Identify the microprocessor and record the details. To do this switch on the stove, the identification code appears...
- Page 60 Robeys Ltd Goods Road, Belper, Derbyshire. DE56 1UU Tel 01773 820940 Fax 01773599309 Email info@robeys.co.uk www.robeys.co.uk...
