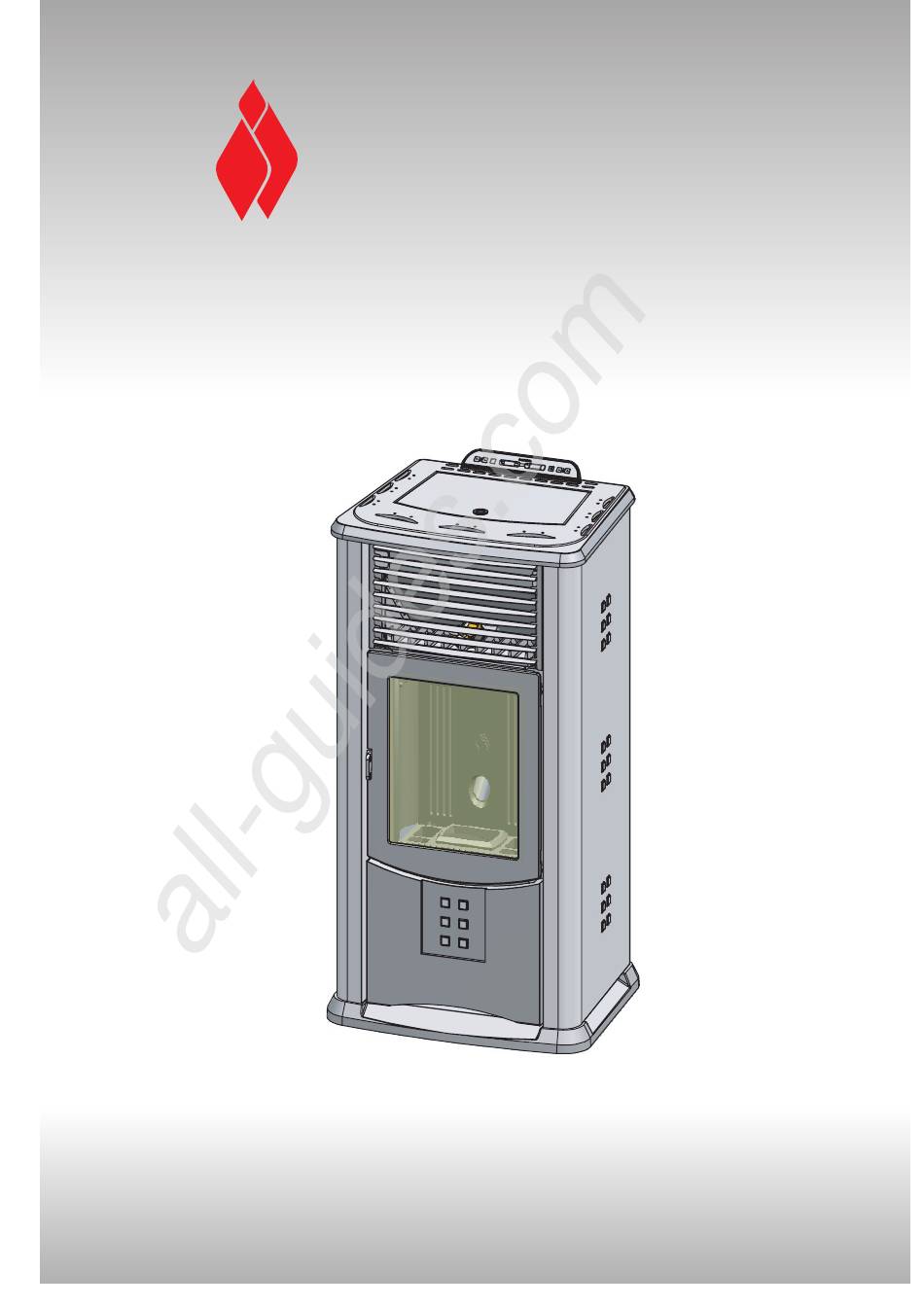

SUPERIOR
Pellet Stove
SOFIA
INSTRUCTIONS FOR
INSTALLATION, USE AND
MAINTENANCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sofia and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Superior Sofia

Summary of Contents for Superior Sofia

  • Page 1 All manuals and user guides at all-guides.com ® SUPERIOR Pellet Stove SOFIA INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE...
  • Page 2 All manuals and user guides at all-guides.com Dear client, We thank you for choosing one of our products, the result of technological expertise and continued research in pursuit of a superior product in terms of safety, reliability and features. In this manual you will find all the information and useful advice necessary to get the most out of your appliance in total safety.

  • Page 3: Table Of Contents

    Cleaning the fans 7.12 When not in use 7.13 Extraordinary maintenance TROUBLESHOOTING Replacing the fuses Declaration of conformity Pellet Stove Sofia This booklet code H07022850 / DT2000426 Rev. 00 (01/2009) comprises 40 pages. H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 4: General Rules

    Ensure that the installation of your product conforms to all the indications given below. Fig. 1 CHIMNEY STACK SINGLE FLUEWAY OR CHIMNEY CONNECTION TO FLUE SOOT INSPECTION APERTURE FRESH AIR INTAKE END ELBOW WITH INSPECTION WINDOW MINIMUM SAFETY DISTANCES CAPACITY LOAD OF THE FLOOR DT2030321-00 H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 5: Single Flueway Or Chimney

    We recommend that the flue must have a chamber for collecting solid matter and any condensate located below the connection and which may be easily inspected by means of an airtight door. (Fig.1) H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 6: Chimney Stack

    α α H min 15° 1,85 m 1,00 m 0,50 m 30° 1,50 m 1,30 m 0,80 m 45° 1,30 m 2,00 m 1,50 m 60° 1,20 m 2,60 m 2,10 m H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 7: Fresh Air Intake

    - Gas appliances of type C are allowed (refer to current legislation and regulations in the place of installation) Gas appliances of type B are not allowed (refer to current legislation and regulations in the place of installation) H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 8: Capacity Load Of The Floor

    162 (volume) X 0.045 (kW) = 7.3 kW necessary (6300 kcal/h) Conversion 1kW = 860 kcal/h Consult a heating technician or engineer for a correct check and calculation of the requirement of the environments to be heated (see “REFERENCE STANDARDS”). H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 9: Minimum Safety Distances

    ø self-tapping screws. Do not install dampers or valves that could block the passage of flue gas. Do not connect to a flueway into which other appliances (boilers, extractor hoods, etc.) discharge fumes or vapours. H07022850 / DT2000426 - 00 SUPERIOR ®...
  • Page 10 This type of fitting can be bought at Superior retail outlets together with the pipes. An example is given below of a flueway connection, which allows complete cleaning without having to disassemble the pipes (Fig 20).

  • Page 11: Connecting To A Conventional Chimney

    IN ACCIAIO INOX O ALLUMINATO gases. Ensure that all installation work is carried out to professional standards. Fresh air intake with PRESA D'ARIA ESTERNA non-closable grille CON GRIGLIA NON RICHIUDIBILE DT2030340-00 H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 12: Using An External Flue

    When the stove has not been used for some time it is advisable to carry out the checks mentioned above. For further information, consult a chimneysweep. - Only use recommended fuels (See section “FUEL”). H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 13: Technical Characteristics And Specifications

    1 to 5 Ash drawer: removable Fuel: natural pure wood pellets (see section “FUEL”) Heating: forced ventilation DT2010186-04 2.2 TECHNICAL DATA SOFIA Unit (at rated power) (at minimum power) Rated / minimum thermal power 10.5 / 4.0 Hourly fuel consumption kg/h Efficiency 84.5...

  • Page 14: Product Identification Data

    If the rating plate is missing, has been removed or tampered with, any installation and maintenance operations are made difficult due Product name to lack of product identification. In the event of damage, please ask the Superior after-sales service centre for a copy. DT2031365-01 Serial number DT2030373-01 2.4 DIMENSIONAL DIAGRAM...

  • Page 15: Wiring Diagram

    All manuals and user guides at all-guides.com DT2031594-00 2.5 WIRING DIAGRAM FUMI SCAM. COC. ACC. SCHEMA ELETTRICO SOFIA CE DT2031594 N° Key to colours Pos. Key to parts Pos. Key to parts Display of control Power supply with fuse (5X20 4AH250V)

  • Page 16: Fuel

    • use slow continuous movements when moving the pack to avoid of children, since it could be a potential source of danger, and jerking the ropes, chains, etc.; dispose of according to local regulations. H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 17: Installation

    5.0 INSTALLATION Pursuant to current regulations on the safety of electrical equipment, you must contact a Superior After-Sales Service Centre or a qualified electrician for all and any work connected with installation, maintenance or servicing that involves access to electrical parts.

  • Page 18: Use

    • The stove is equipped with a digital control panel which allows the user to control the various functions. The control panel keys and their various functions are listed below. These have been numbered in order to make identification easier. Fig. 31 SUPERIOR ® AL. C AL.

  • Page 19: Lighting For The First Time

    PHASE THREE stove should be considered off; a new ignition cycle will begin automatically and the three preceding phases will DT2040032-01 be repeated in succession. H07022850 / DT2000426 - 00 SUPERIOR ®...
  • Page 20 During normal operation the burner’s automatic cleaning system will activate periodically, the frequency varying according to the settings pre- programmed by Superior personnel. This operation AL. C removes ash deposits and other buildups which impede the correct functioning of the stove.
  • Page 21 LED LIGHTS • • the corresponding LED lights up • the stove runs at minimum power even if the input AL. C power level is shown on the display. DT2040045-00 AL. F H07022850 / DT2000426 - 00 SUPERIOR ® AL. C...

  • Page 22: Remote Control

    • Temperature: when operating normally, pressing the ‘+’ and ‘-’ keys above the thermometer symbol will select the desired room temperature (7-30°C). DT2030079-00 H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 23: Timer

    Press key 1 to return through the AL. C sequence. • AL. F FLASHING LED OO:OO Press the SET key to confirm. Confirm setting and move to next section. AL. C • AL. F FLASHING LED H07022850 / DT2000426 - 00 SUPERIOR ®...
  • Page 24 10 = alarm deactivated). AL. C Press key 1 to return through the sequence. • AL. F FLASHING LED Example: 12:OO Press SET to confirm Confirm selection AL. C AL. F DT2040037-00 AL. C AL. F H07022850 / DT2000426 - 00 SUPERIOR ®...
  • Page 25 Press key 2 to advance through the Setting first cycle 0 6 : 0 0 timetable (10 minutes at a time). automatic startup Press key 1 to return through the sequence. time AL. C • AL. F FLASHING LED H07022850 / DT2000426 - 00 SUPERIOR ®...
  • Page 26 5, 4, 3, 2, 1 • AL. F FLASHING LED AL. C AL. F OO:OO Confirm selection Press SET key to confirm move programming second AL. C cycle • AL. F FLASHING LED DT2040039-00 H07022850 / DT2000426 - 00 SUPERIOR ®...
  • Page 27 Power level 2 is recommended. Select power level Press key 5 to AL. C decrease the power 0 9 u 2 • AL. F level: 5, 4, 3, 2, 1 FLASHING LED AL. C AL. F H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 28: Safety Devices

    • Wait until the stove has cooled down, then check for and remove whatever has caused the AL. C safety system to be triggered. AL. F Finally, after having cleaned the burner, restart the stove by pressing the on/off key. H07022850 / DT2000426 - 00 SUPERIOR ®...
  • Page 29 AL. C • Finally, after having cleaned the grate restart AL. F the stove by pressing the ON/OFF key. If the anomaly continues call the After-Sales Service Centre. DT2040097-00 H07022850 / DT2000426 - 00 SUPERIOR ®...
  • Page 30 • Shut down the stove by holding the ON/OFF 12:00 key down for several seconds. • The alarm will stop. AL. C • Call the After-Sales Service Centre. o F F AL. F DT2040048-02 H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 31: Opening The Door

    Only when they have been fully extinguished can the ashes be thrown away with organic waste, assuming that nails or other non-organic material are not present. H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 32: Maintenance

    7.0 MAINTENANCE Pursuant to current regulations on the safety of electrical equipment, you must contact a Superior After-Sales Service Centre or a qualified electrician for all and any work connected with installation, maintenance or servicing that involves access to electrical parts.

  • Page 33: Cleaning The Smoke Chamber

    In the event of such substances being used the manufacturer will not be responsible for any damage caused. Discolouration of metallic parts may be the result of misuse. PULIZIA DELL'IMPIANTO DI SCARICO 1151 DT2031151 H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 34: Cleaning The Glass (Daily)

    • Clean the firebox thoroughly. • Clean and inspect the flue. • Check the condition of seals and gaskets. • Clean mechanical and moving parts (motors and fans). • Check electrical and electronic components. H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 35: Troubleshooting

    Pipe insulation blocked Dismantle and clean Silicone piping blocked or broken Check and/or replace piping Replace electronic board (use only Defective electronic board original spares) Door open Control if the door is closed H07022850 / DT2000426 - 00 SUPERIOR ®...
  • Page 36 Faulty pressure switch Pressure switch " AL 3 " malfunction only original spares). Check the electrical connections (contact a Superior After-Sales No power supply to the auger Service Centre or an authorised person). Fuel tank automatic reset thermostat Blocked flue...
  • Page 37 Blocked flue Clean flue Failed ignition See " " NO ACC Replace electronic board (use only Defective electronic board original spares) Empty fuel tank; check and clean fuel- Fuel-loading system blocked loading system H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 38: Replacing The Fuses

    Fuse on the IEC power socket. Draw out the fuse carrier and replace the fuse with the spare to be found inside the small drawer. Type: F4AH250V Fuse carrier drawer Cassettino porta fusibile DT2030897-00 Nome?:Descrizione DT2030896 DT2030897 H07022850 / DT2000426 - 00 SUPERIOR ®...

  • Page 39: Declaration Of Conformity Pellet Stove Sofia

    DECLARES that the product: Descrizione PELLETS STOVES Description Modelli SOFIA Models è conforme alle disposizioni legislative che traspongono le seguenti direttive: • direttiva 89/336 CEE (Direttiva EMC) e successivi emendamenti • direttiva 73/23 CEE (Direttiva Bassa Tensione) e successivi emendamenti is in accordance with the following Directives: •...
  • Page 40 All manuals and user guides at all-guides.com Product serial number, to be quoted when requesting service from the Gruppo Piazzetta After-Sales Service Centre. SUPERIOR ® Via Montello, 22 31011 Casella d’Asolo (TV) - ITALY Tel. +39.04235271 - Fax +39.042355178 www.superiorcaminetti.it...
