MB-62490
Full Motion TV Wall Mount
(For 42" - 90" TVs
Indoor/Outdoor
Fits VESA 200/300/400/500/600)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MB-62490 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Commercial Electric MB-62490

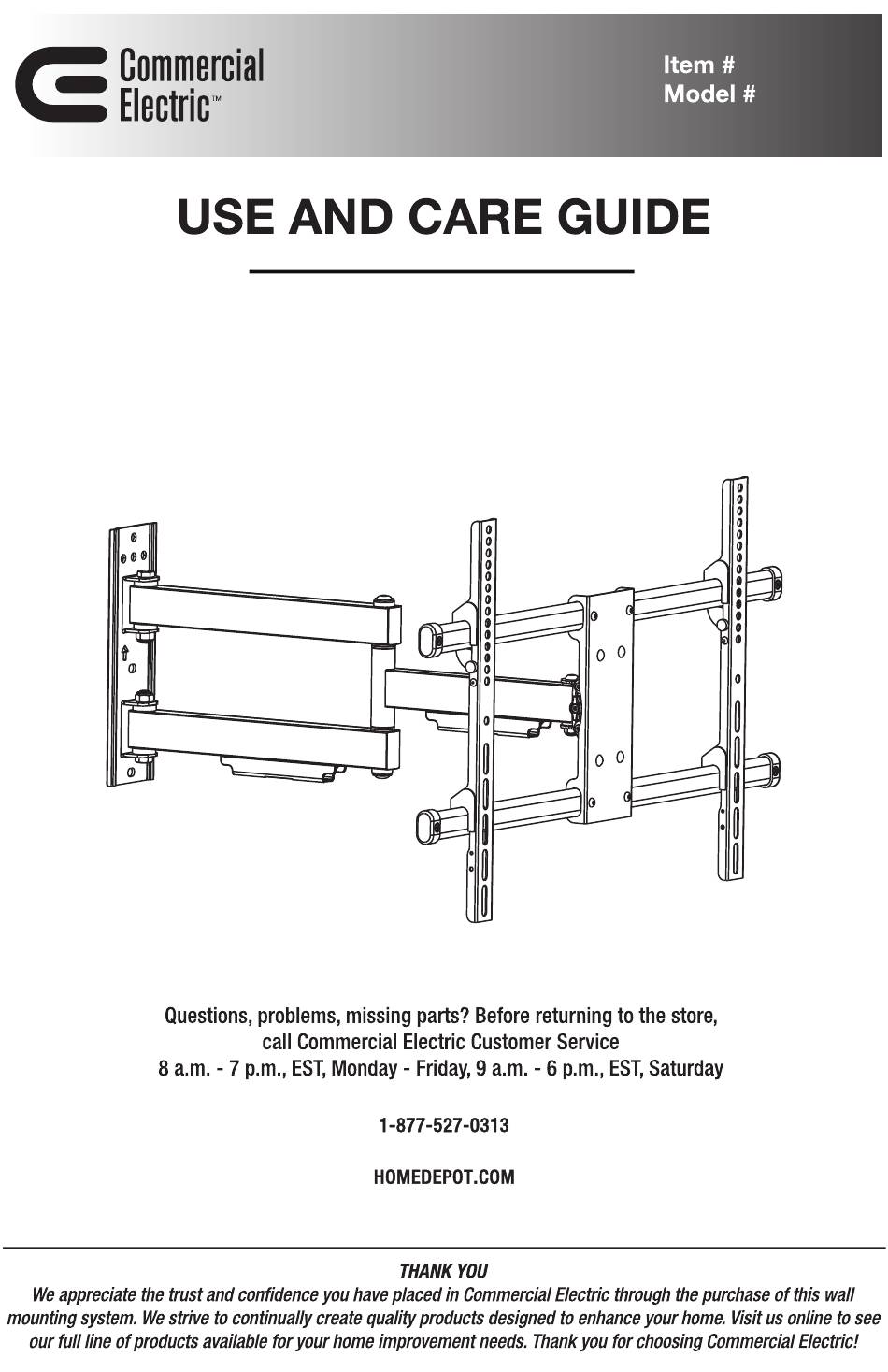

  • Page 1 MB-62490 Full Motion TV Wall Mount (For 42" - 90" TVs Indoor/Outdoor Fits VESA 200/300/400/500/600)
  • Page 2 4-10 Before you begin, carefully read and understand the instructions in this manual. Please follow the instructions in the order presented in this manual and observe all warnings and cautions. 100 lbs. four (45.36 kgs). 615mm/24.2" 62mm/2.4" 1/4 in. (6 mm) wood drill bit or 1/2 in.
  • Page 3: Pre-Installation

    Pre-Installation Part Description Quantity 4 each 8 each Part Description Quantity Wall mount Mounting bracket Thumb screw Allen key Wrench Bubble level...
  • Page 4: Installation

    Installation Screw ts correctly Screw is too Screw is too long short CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer service. Use the shortest screw and spacer combination to accommodate your TV.
  • Page 5 Installation (continued) Mounting brackets to the TV Use the washers (EE) and screws (DD, size M5x14, M6x14) to attach the TV if it has a flat back. Or use the spacers (FF), washers (EE) and screws (DD, size M6x30, M8x30, M8x50) to attach the TV if it has a curved or recessed back.
  • Page 6 Installation (continued) CAUTION: Ensure the wall you select is a weight-bearing wall. Failure to observe this precaution can result in serious physical injury and/or property damage. Consult a professional installer or contact customer service if you have any questions. After you have mounted the brackets to the TV, determine the mounting location on the wall.
  • Page 7 Installation (continued) Installing the wall mount (concrete/brick wall) Use the wall mount (A) as a template to mark the installation holes. Use the bubble level (F) to ensure the wall mount (A) is level. Use a 1/2 in. (12 mm) masonry drill bit to slowly drill 3.7 in. (95 mm) pilot holes. Insert anchors (AA) into the holes.
  • Page 8 Installation (continued) Installing the wall mount (wood stud) CAUTION: Avoid potential personal injury or property damage! Drywall covering the wall must not exceed 5/8 in.(16mm) Use a commercially-available stud finder to locate the stud centers in the wall. Studs are usually spaced 16 in. apart. Use the wall mount (A) as a template to mark the installation holes.
  • Page 9 Installation (continued) Attaching the TV Hang the TV on the wall mount and tighten the thumb screws (C) as shown to secure the TV. HEAVY! You will need assistance with this step.
  • Page 10 Installation (continued) Managing the cable Route the cable along the arm. Adjusting the TV to the desired position Leveling: Use the wrench (E) to release or tighten the screws on the VESA plate as shown. Assist yourself with the bubble level (F). Tilt: Use the Allen key (D) to release or tighten the knob on the VESA plate as shown.
