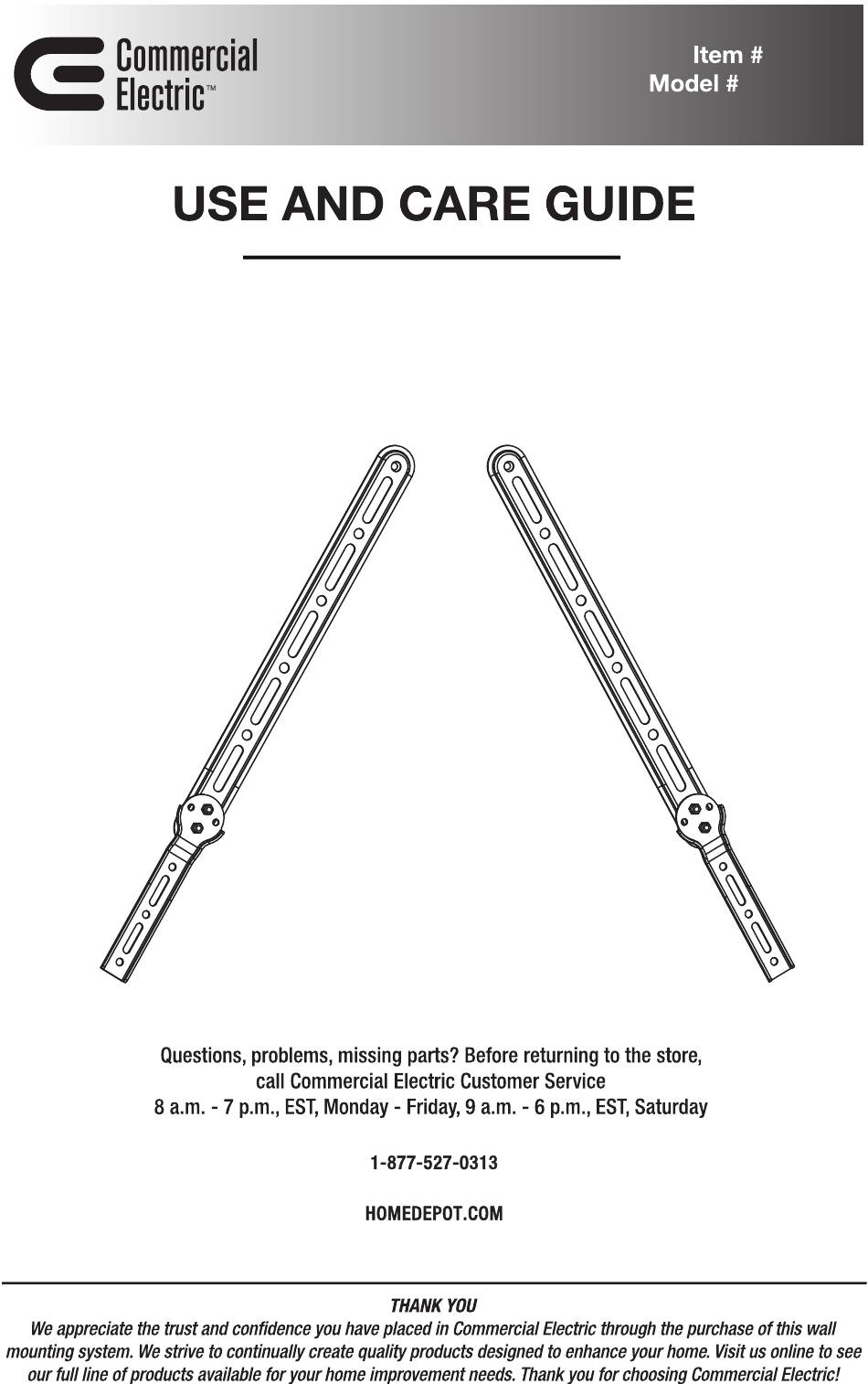

- Page 1 ******** MB-64102 Soundbar Bracket for mounting below or above wall mounted 23" - 65" TVs...
- Page 2 Before you begin, carefully read and understand the instructions in this manual. Please follow the instructions in the order soundbar presented in this manual and observe all warnings and cautions. soundbar soundbar bracket bracket It is the installer's responsibility to make sure the structure can support the bracket 33 lbs.
- Page 3 Pre-Installation Bracket Extension bracket Bolt Hex nyloc nut Screw (size M4x14) Screw (size M5x14) Screw (size M6x14) Washer Flat thread fastener Flange hex lock nut 100mm...
- Page 4 Screw ts correctly Screw is too Screw is too long short CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer service. Use the shortest screw and spacer combination to accommodate your TV.
- Page 5 Installation (continued) Attaching the brackets to soundbar For small size soundbar： Use the washers (H) and screws (E/F) to attach the brackets (A,B) to the soundbar with round hole pattern. Use the flat thread fasteners (I) and flange hex lock nuts (J) to attach the brackets (A,B) to the soundbar with keyhole pattern.
- Page 6 Installation (continued) Attaching the soundbar to the TV For small size soundbar: An extra TV mount is required. Attach the TV mounting arms and the brackets (A) to the four holes on the back of the TV as shown. For large size soundbar: An extra TV mount is required.
- Page 7 Installation (continued) Hanging the TV on the TV mounting plate...
