Commercial Electric MB-52472 Use And Care Manual

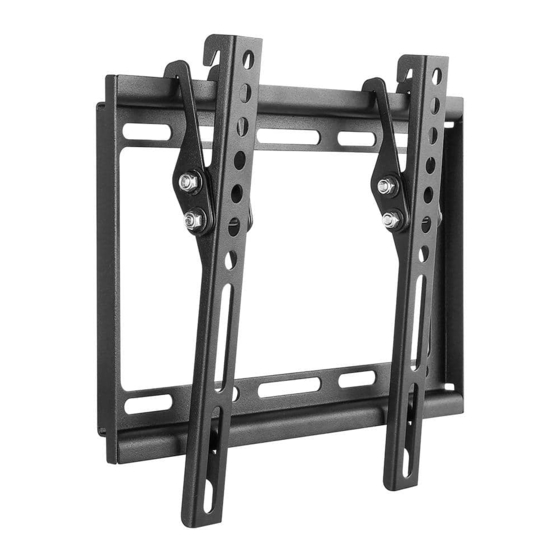

Tilting wall mount for flat panel tvs
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

********
MB-52472
Tilting Wall Mount for Flat Panel TVs
50/75/100/200)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB-52472 and is the answer not in the manual?

Questions and answers

Related Manuals for Commercial Electric MB-52472

Summary of Contents for Commercial Electric MB-52472

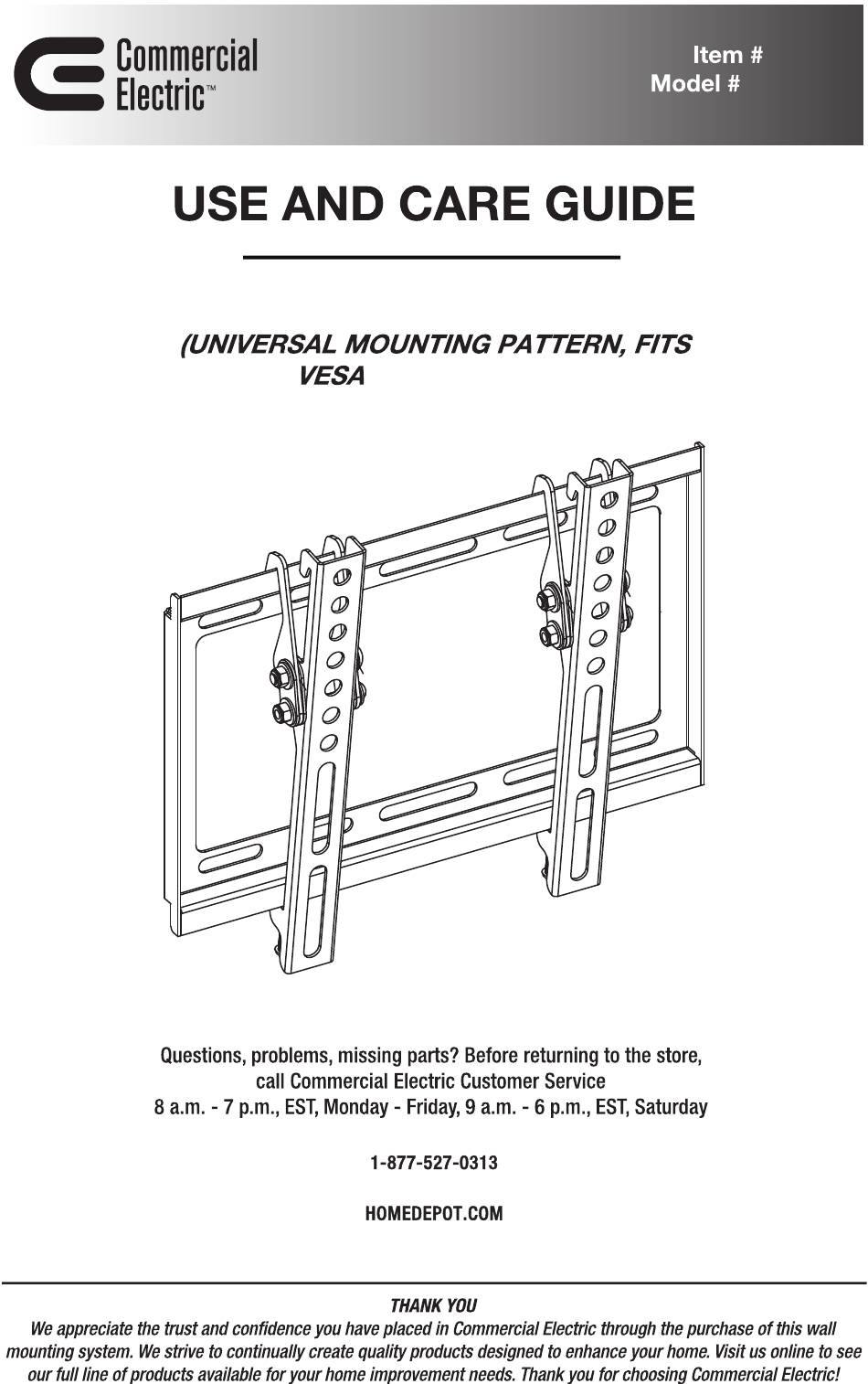

  • Page 1 ******** MB-52472 Tilting Wall Mount for Flat Panel TVs 50/75/100/200)
  • Page 2 Before you begin, carefully read and understand the instructions in this manual. Please follow the instructions in the order presented in this manual and observe all warnings and cautions. 30 lbs. (13.6kgs). 10.43"(265mm) min0.83"~max1.77" (min21~max45mm) min1.97"~max8.66" (min50~max220mm) This mount has been tested to support a television with diagonal screen sizes between 13in.
  • Page 3 Pre-Installation 100mm...
  • Page 4 Select the screw diameter to use by inserting the various sized screws (M4, M5, M6, and M8) into the mounting holes in the back of your TV. Screw ts correctly Screw is too Screw is too long short CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV.
  • Page 5 Installation (continued) Attaching the mounting brackets to the TV Attach the mounting brackets (B) to the back of the TV using the screws (DD) and washers (EE) you identified in step 1. Note: If you use a Samsung TV with deeper VESA holes, please use M8x50 screws and Samsung spacers.
  • Page 6 Installation (continued) CAUTION: Ensure the wall you select is a weight-bearing wall. Failure to observe this precaution can result in serious physical injury and/or property damage. Consult a professional installer or contact customer service if you have any questions.
  • Page 7 Installation (continued) Mounting the TV to the Installing the mounting plate (concrete/masonry wall) mounting plate Loosen the two screws on the bottom of the mounting brackets (B) as shown. Holding the TV with the top of the screen tilted toward the wall, slide the upper notches of the mounting brackets (B) over the upper lip of the mounting plate (A).

This manual is also suitable for:

Fits vesa 50Fits vesa 75Fits vesa 100Fits vesa 200
