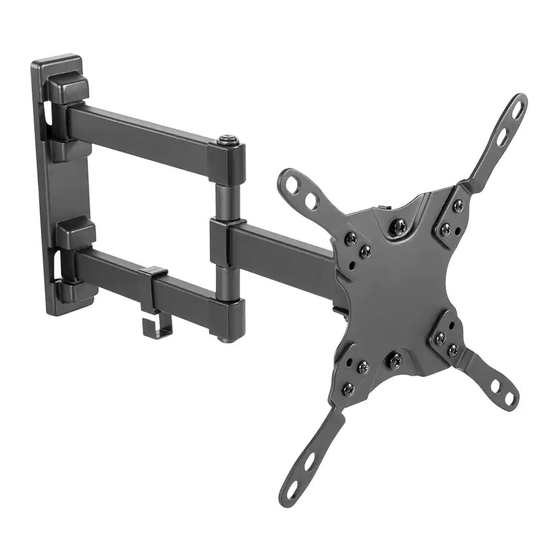

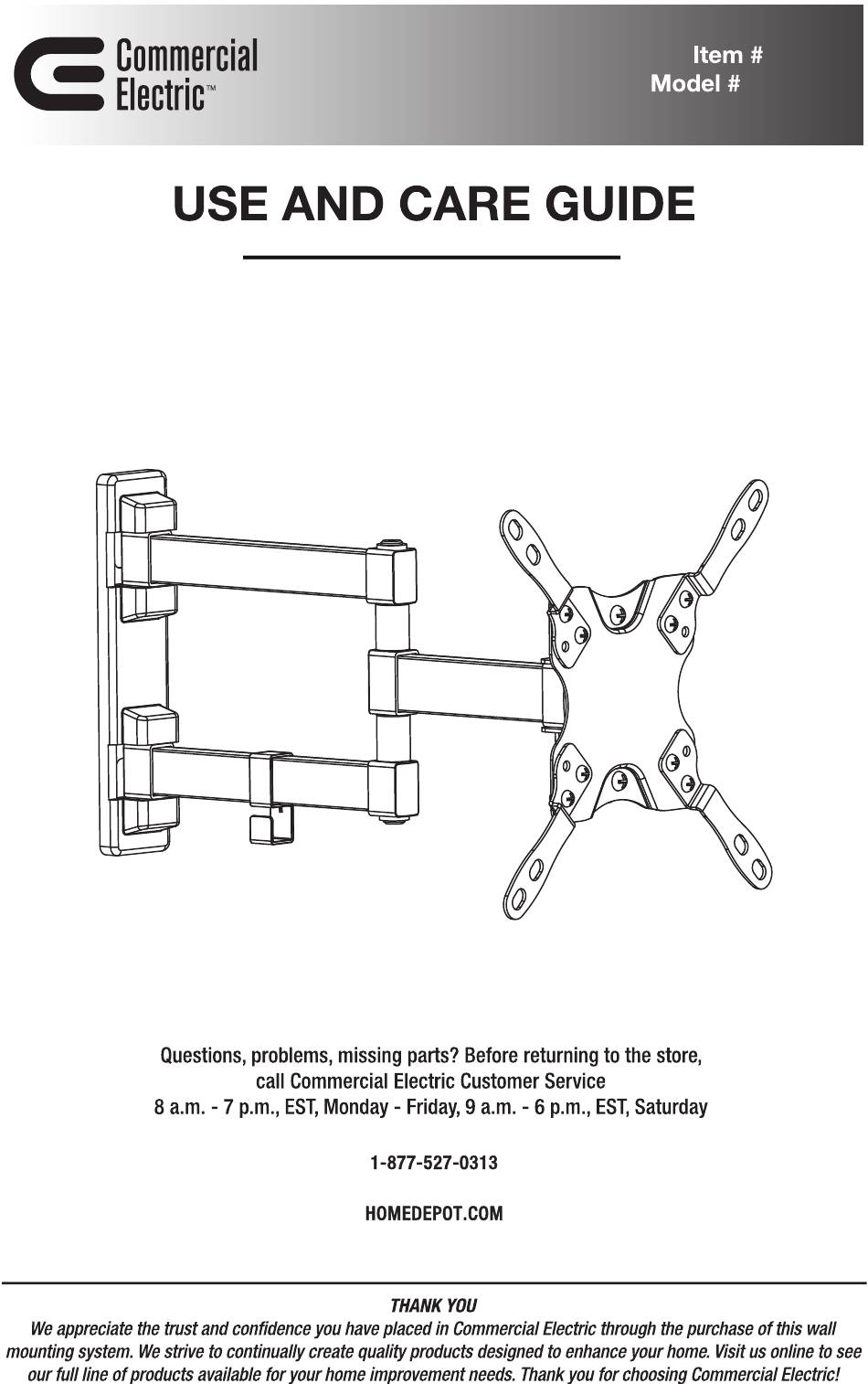

- Page 1 ******** MB-54474 Full Motion Wall Mount for Flat Panel TVs (For up to 47" TVs, Fits VESA 75/100/200)
- Page 2 4-10 Before you begin, carefully read and understand the instructions in this manual. Please follow the instructions in the order presented in this manual and observe all warnings and cautions. 30 lbs. (13.6kgs). 14.33''(364mm) 2.36''(60mm) 3/16 in. (4.5mm) This mount has been tested to support a television with diagonal screen sizes between 13in.
-
Page 3: Pre-Installation
Pre-Installation Wall Mount VESA plate VESA extension adapter arm VESA extension adapter arm Knob Cable clip Allen key Wrench Hexagon Nut Bolt 100mm... - Page 4 Screw ts correctly Screw is too Screw is too long short CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer service. Use the shortest screw and spacer combination to accommodate your TV.
- Page 5 Installation (continued) Installing the VESA extension adapter arms Attach the VESA extension adapter arms (C, D) to the VESA plate (B) using the bolts (J) and Hexagon Nuts (I) as shown. Attaching the VESA plate to the TV Using the washers (EE) and screws (DD) to secure the TV of flat back. Using the spacers (FF), washers (EE) and screws (DD) to secure the TV of curved or recessed back.
- Page 6 Installation (continued) CAUTION: Ensure the wall you select is a weight-bearing wall. Failure to observe this precaution can result in serious physical injury and/or property damage. Consult a professional installer or contact customer service if you have any questions.
- Page 7 Installation (continued) Installing the wall mount (concrete/masonry wall) Use the wall mount (A) as a template to mark the installation holes. Use a level to ensure the wall mount (A) is level. Use a in. (6 mm) masonry drill bit to slowly drill 2.4 in. (60 mm) pilot holes. Then use a in.
-
Page 8: Attaching The Cable Clip
Installation (continued) Installing the decorative cover Attaching the cable clip Attach the cable clip (F) to the wall mount (A) as shown. - Page 9 Installation (continued) Mounting the TV to the wall mount Connect the wall mount (A) and the VESA plate (B) as shown, and tighten the two knobs (E) to fix the TV. HEAVY! You will need assistance with this step. Managing the cable Route cable along the arm.
- Page 10 Installation (continued) Adjusting the TV to the desired position Tilt: Using the Allen key (G) to release or tighten the screws on the VESA plate as shown. Swivel: Using the wrench (H) to release or tighten the nuts on the VESA plate or using the Allen key (G) to release or tighten the nuts on the arm as shown.
