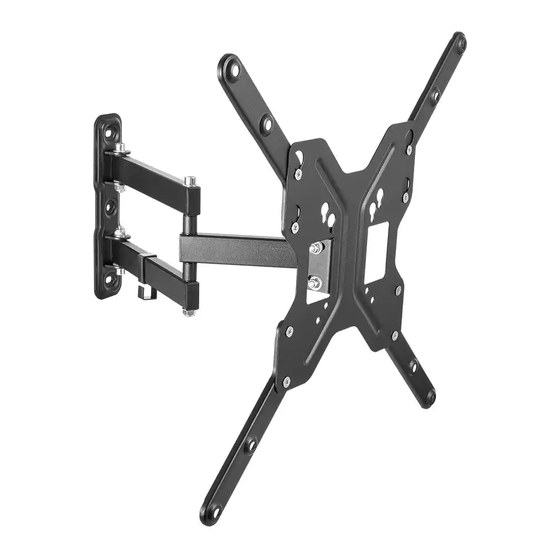

Full motion wall mount for flat panel tvs (for up to 63" tvs, fits vesa 75/100/200/300/400)

Advertisement

Quick Links

********
MB-54634
Full Motion Wall Mount for Flat Panel TVs
(For up to 63" TVs,
Fits VESA 75/100/200/300/400)

Advertisement

loading
Need help?

Need help?

Do you have a question about the MB-54634 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Commercial Electric MB-54634

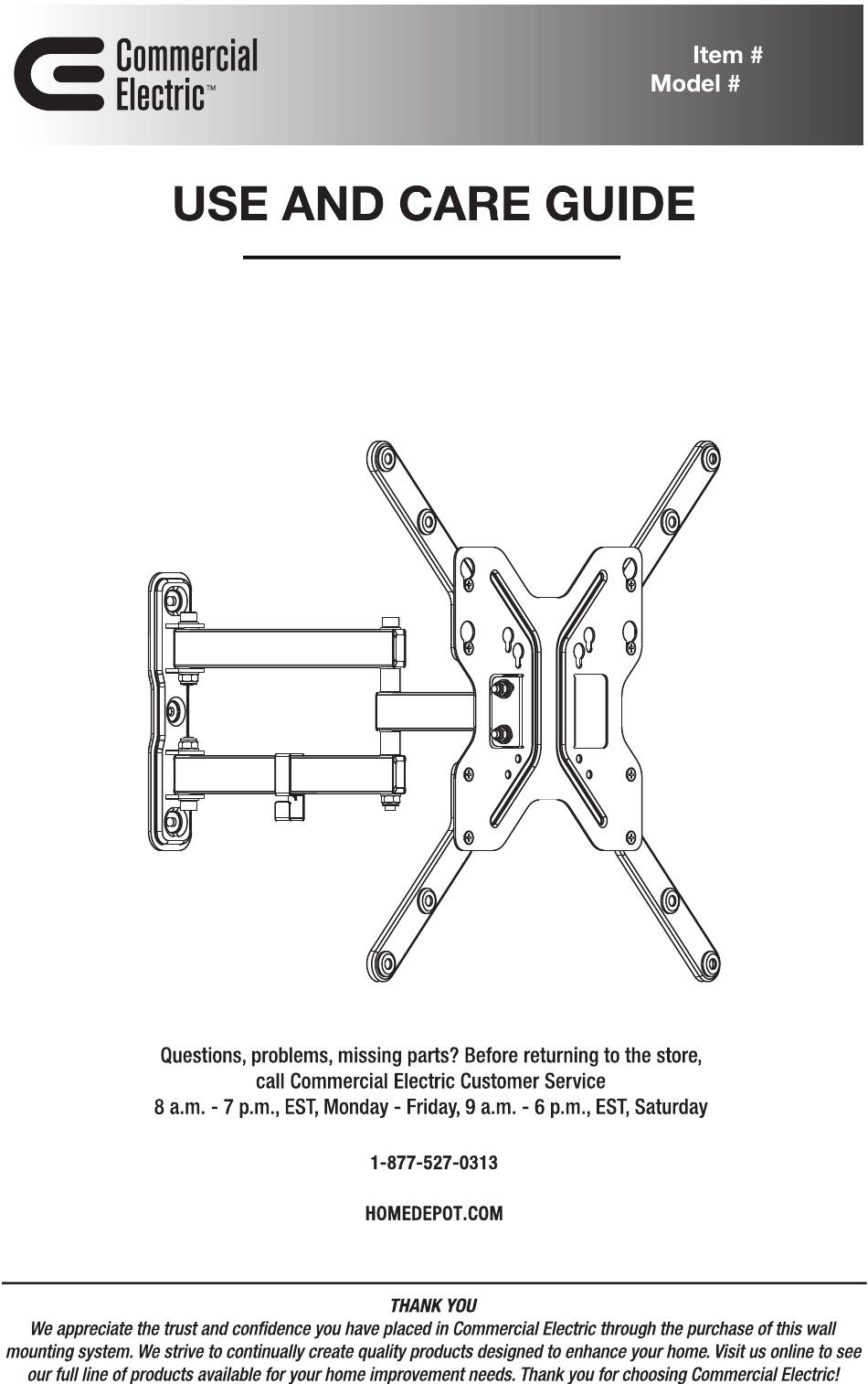

  • Page 1 ******** MB-54634 Full Motion Wall Mount for Flat Panel TVs (For up to 63" TVs, Fits VESA 75/100/200/300/400)
  • Page 2 4-10 Before you begin, carefully read and understand the instructions in this manual. Please follow the instructions in the order presented in this manual and observe all warnings and cautions. 45 lbs. three (20.4kgs). 1.93"(49mm) 15.55"(395mm) 3/16 in. (4.5mm) This mount has been tested to support a television with diagonal screen sizes between 23in.
  • Page 3: Pre-Installation

    Pre-Installation Wall Mount VESA extension adapter arm VESA extension adapter arm Cable Clip Allen key Wrench Screw 100mm...
  • Page 4 CAUTION: Ensure the wall you select is a weight-bearing wall. Failure to observe this precaution can result in serious physical injury and/or property damage. Consult a professional installer or contact customer service if you have any questions.
  • Page 5 Installation (continued) Installing the wall mount (concrete/brick wall) Use the wall mount (A) as a template to mark the installation holes. Use a level to ensure the wall mount (A) is level. Use a in. (6 mm) masonry drill bit to slowly drill 2.4 in. (60 mm) pilot holes. Then use a in.
  • Page 6 Installation (continued) Installing the wall mount (wood stud) Use a commercially-available stud finder to locate the stud centers in the wall. Studs are usually spaced 16 in. apart. Use a in. (4.5 mm) drill bit to slowey drill 2.2 in. (55 mm) pilot holes. Attach the wall mount (A) to the wall using the lag bolts (CC) and lag bolt washers (BB) as shown.
  • Page 7 Installation (continued) Arranging the cable clip Attach the cable clip (D) to the wall mount (A) as shown. Installing the VESA extension adapter arms Attach the VESA extension adapter arms (B, C) to the VESA plate using the screws (G) as shown.
  • Page 8 Installation (continued) Screw ts correctly Screw is too Screw is too long short CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer service.
  • Page 9 Installation (continued) Attaching the TV Using the washers (EE) and screws (DD)(size M5x14,M6x14) to attach the TV of flat back. Or using the spacers (FF), washers (EE) and screws (DD)(size M6x30, M8x30, M8x50) to attach the TV of curved or recessed back. HEAVY! You will need CAUTION: Tighten the screws so the brackets...
  • Page 10 Installation (continued) Managing the cable Route cable along the arm. Adjusting the TV to the desired position Tilt: Using the Allen key (E) to release or tighten the screws on the VESA plate as shown. Swivel: Using the Allen key (E) and wrench (F) to release or tighten the nuts on the arm as shown. 180°...
