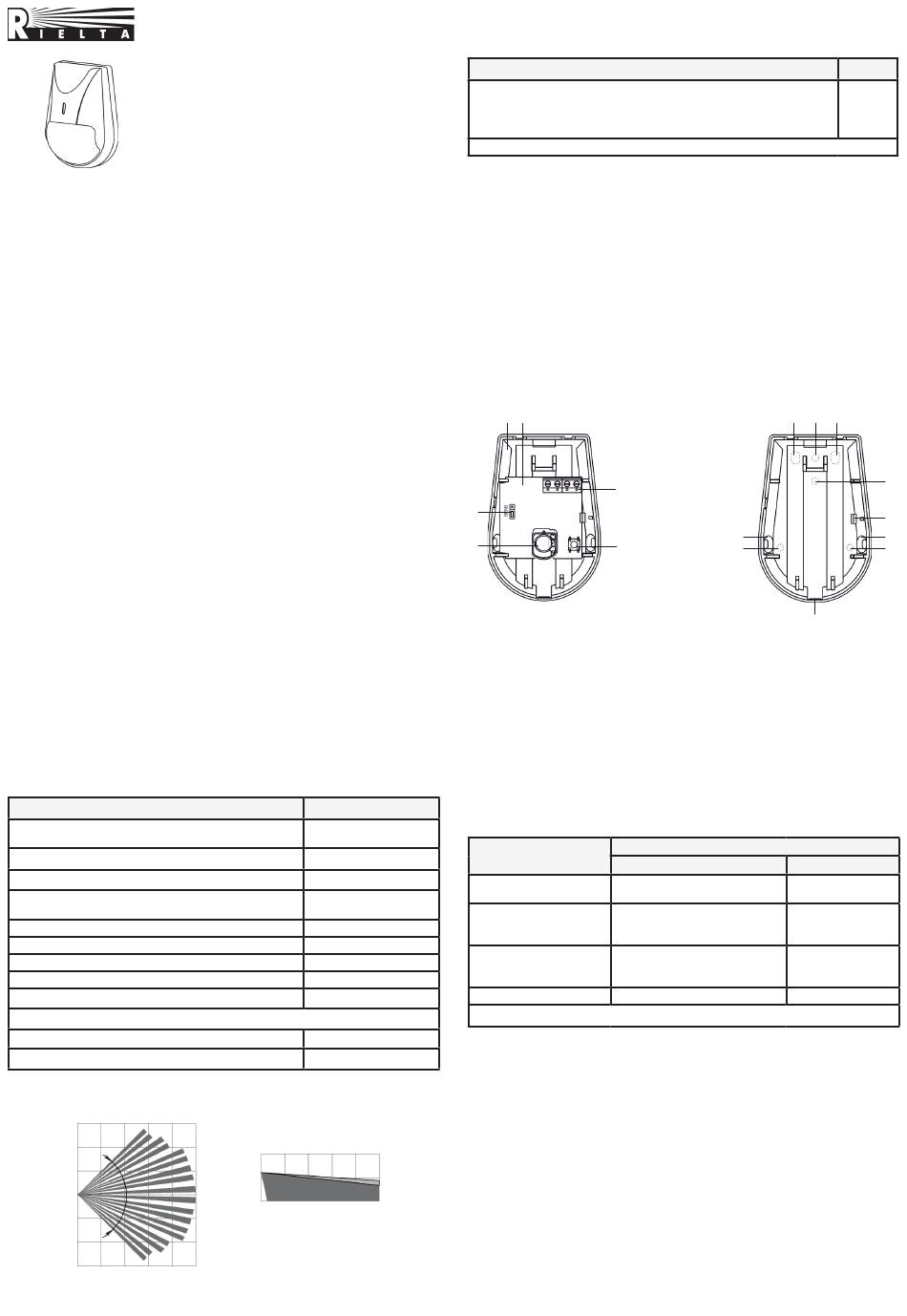

Rielta IK-A Installation Manual

1 Introduction
1.1 The addressable motion security PIR detector «IK-A» (hereinafter
referred to as the Detector) allows to expose intrusion into the secured
space of a room by transmitting of notifications via an addressable loop
(hereinafter referred to as ADL) in accordance with the «Rielta-Contact-
ADR» protocol to a control panel (hereinafter – CP).
1.2 The Detector is powered from the ADL.
1.3 The Detector operates using amplitude-time digital signal
processing.
1.4 The Detector is equipped with a red indicator light to monitor its
functionality with the ability to turn it off.
1.5 The Detector generates and transmits five types of notifications
via ADL:
- «Normal» – in normal condition;
- «Violation» – when intrusion is detected;
- «Opening» – when the case cover is open;
- «Power failure» – when the supply voltage in the ADL is low;
- «Sensitivity», which is determined by the state of the SENS contacts.
1.6 The Detector can report on the current value of the supply voltage
in the ADL in response to a corresponding request from the CP.
1.7 The Detector is designed for continuous 24-hour operation.
1.8 The Detector belongs to single-function, non-repairable and
serviceable products.
1.9 The Detector is resistant to electromagnetic interference.
1.10 The Detector is not a source of interference to similar detectors,
detectors of other types and purposes, as well as to any other household
radio equipment.
2 Special features
- The sensitive element is a two-area pyroelectric sensor.
- The spherical lens ensures no distortion in the detection zone and is
immune to interference from pets.
- 3 adjustable noise immunity levels of sensitivity.
- Thermal compensation of detection ability.
- The Detector can be mount on a wall, in the corner of a room, on
the ceiling and ceilings (with a bracket).
3 Field of application
The Detector can be installed in apartments, as well as in shops, offices,
museums, and industrial facilities. The Detector has a pet immunity for
animals up to 40 kg (20 kg).
4 Technical features
Table 1
Parameter
Detection area
Maximum detection range
Supply voltage (in the absence of ADL exchange)
Detector current consumption in the absence of ANC
exchange and indication, no more
Recommended installation height
Protection class
Average time to failure in standby mode
Weight
Average service life
Operational conditions
Operating temperature range
Permissible air humidity at temperature
Detection zone scheme
Top view
90
о
0
10 m
Picture 1 – Detection zone
Addressable
motion security
PIR detector
«IK-A»
Installation Guide
Value
volumetric
8 distant, 4 close
10 m
6.5...14 V
0.5 mA
2.3 ± 0,1 m
IP41
60 000 hrs
0.06 kg
8 years
-30... +55
98 %
Side view
2,3 m
10 m
5 Contents of the set
The Detector delivery set corresponds to that specified in Table 2.
Table 2
Addressable motion security PIR detector «IK-A»
Mounting bracket
Instructions for the Addressable motion security PIR detector «IK-A»
* Supplied upon special request
6 Design
The Detector consists of a case cover and a case base (1) with an
installed printed circuit board (2).
The base of the case with a printed circuit board is shown in Pic. 2 a).
The printed circuit board contains:
- terminal blocks (3) for connecting ADL;
- tamper switch (4);
- sensitive element (5);
- SENS jumper (6).
At the base of the case (Pic. 2b) there are:
- technical openings for wires (7), for attaching the base to the
bracket (8); for wall mounting (9); for installation in a corner (11);
- detector board retainer (10);
- hole for case cover lock (12).
а) Top view (no case cover)
1 2
+LINE- -LINE+
6
5
Picture 2 – Case of the Detector with PCB
7 Indication
The Detector generates the following types of indication:
- indication of successful registration/deletion of the detector in the CP;
- «Identification» indication turns on when receiving the corresponding
command from the CP and remains for 15 minutes;
- indication of the detector status turns on immediately after power is
applied, after registering/deleting the Detector in the CP or upon receiving
the corresponding command from the CP and is stored for 15 minutes
in case of the absence of other types of indication.
The indicator activation modes are listed in Table 3.
Table 3
Detector status
Successful registration/
deletion
«Alarm»*
«Identification»
«Normal»
* The alarm indication turns off 15 minutes after power is applied to the detector
С
о
8 Choosing the place of installation
8.1 The Detector should be used in enclosed spaces. When choosing a
location for installing the Detector one should pay attention to positioning
of the detection zone (hereinafter referred to as DZ) as it should not be
blocked by opaque objects (curtains, indoor plants, cabinets, shelving,
etc.), as well as glass and mesh partitions.
8.2 If possible, there should be no windows, air conditioners, heaters,
or radiators in the field of view of the detector.
8.3 The Detector should be located no closer than 0.5 m from power
electrical cables.
9 Installation and registration
- Remove the Detector case cover by using a screwdriver to press the cover
lock through the hole located in the lower part of the detector base (Pic. 3).
- Drill holes in the base of the Detector that will be used for laying wires
and attaching the Detector (Pic. 2 b).
- Having chosen the installation location, mark the holes for installation
(Pic. 5), taking into account the position of the holes in the base of the
Detector (bracket), drill holes at the installation site.
Name
б) Case base
7
3
11
4
9
Indication
Indicator status
intermittent activation of the
indicator for 2 s
single short switching on of
the indicator with a period
of 2 s
two-time short switching on
of the indicator with a period
of 2 s
off
QNT
1 pc.
*
1 copy
8 7
9
10
11
9
12
Work mode
if indication is
enabled
on command from
CP
