USER MANUAL

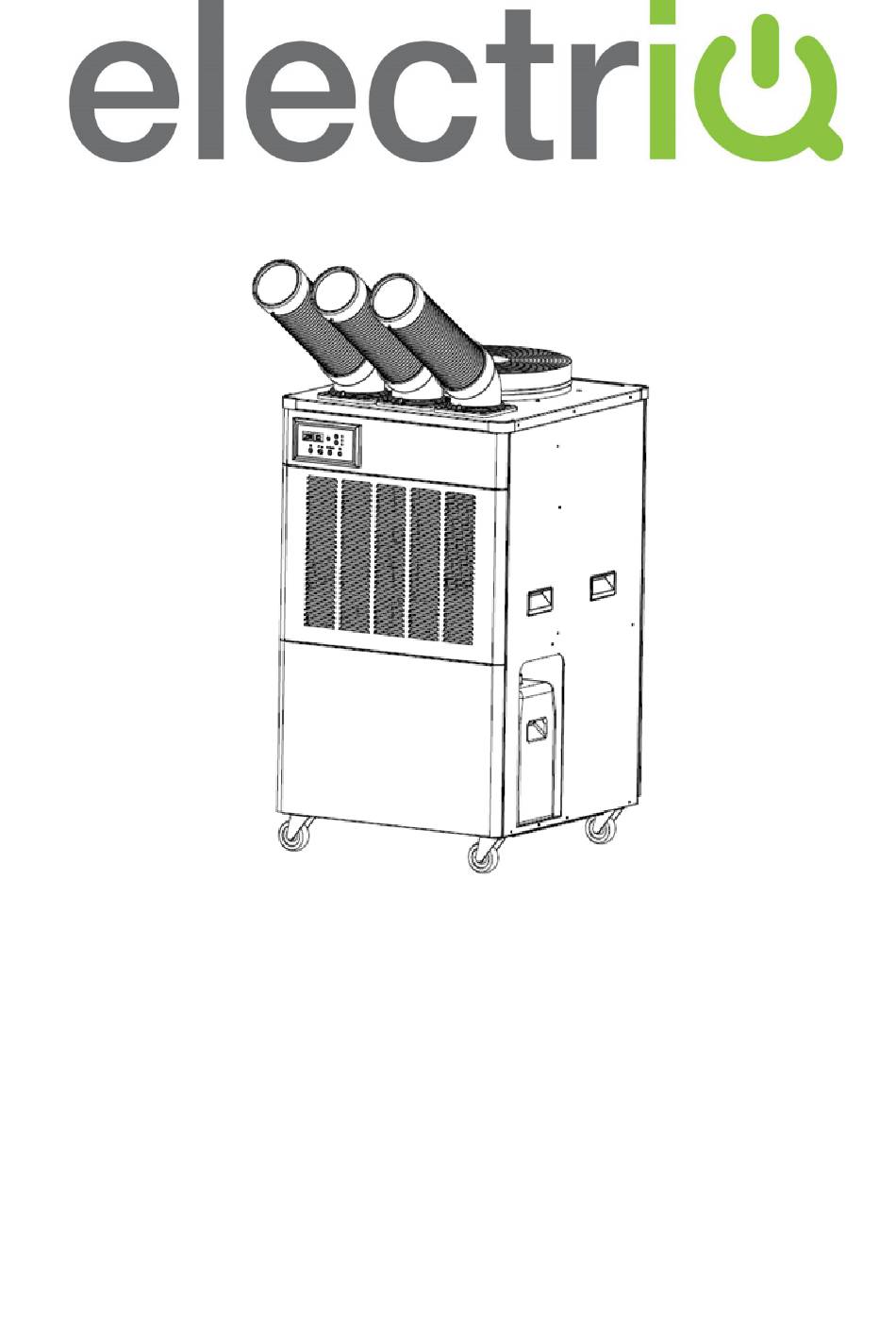

electriQ 18,000 BTU PORTABLE INDUSTRIAL
AIR CONDITIONER
CMAC20M
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Conditioner and keep it
safe for future reference.
Visit our page, www.electriQ.co.uk, for our entire range of Intelligent Electricals.

Advertisement

loading
Need help?

Need help?

Do you have a question about the CMAC20M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ElectrIQ CMAC20M

  • Page 1 18,000 BTU PORTABLE INDUSTRIAL AIR CONDITIONER CMAC20M Thank you for choosing electriQ Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page, www.electriQ.co.uk, for our entire range of Intelligent Electricals.
  • Page 3: Table Of Contents

    CONTENTS SAFETY INFORMATION FEATURES APPLIANCE DIAGRAM INSTALLATION OPERATION EMPTYING THE INTERNAL WATER TANK CLEANING AND MAINTENANCE TROUBLESHOOTING SUPPORT TECHNICAL SPECIFICATION...
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unit • This appliance is for indoor use only. • Rating: This unit must be connected only to a 220-240 V / 50 Hz earthed outlet. The fuse rating is on the plug itself. •...
  • Page 5 • Do not move the air conditioner while it is operating. When operating, the castors should be locked in position. • Ensure the unit is positioned on a flat, level surface and does not interfere with walkways. • This air conditioner is not designed for boats or any other type of transportation. •...
  • Page 6 • Do not cover or restrict the airflow from the outlet or inlet grills. • For maximum performance the minimum distance from a wall or objects should be 50cm. • Keep the filters clean. Under normal conditions, filters should only need cleaning once every three weeks (approximately).
  • Page 7: Features

    FEATURES 3 in 1 Cooling, Fan, Dehumidifier. • two-speed fan: Balancing quiet operation with performance. • 24 Hours Start / Stop Timer. • Digital Thermostat. • Auto-Restart to retain the settings in the event of power failure. • Castors for Enhanced Portability. •...
  • Page 8: Installation

    INSTALLATION COLD AIR OUTLETS 1. Line up the dimple on the Elbow with the notch on the Hose connector on the top of the air conditioner. 2. Rotate anticlockwise until a click can be heard, indicating the elbow has locked into place.
  • Page 9: Operation

    OPERATION Press the POWER button to turn the unit ON or OFF. POWER Press the MODE button to cycle between the three modes. The indicator for the selected mode will illuminate. The room is cooled by cold air expelled through the cold air outlets and hot air expelled through the Hot Air Pipe.
  • Page 10 INDICATORS Shows the current room temperature. It shows the desired room temperature during cooling Mode. While setting the timer, it displays the duration of the timer. The light will illuminate when the water tank is full, and the unit will stop operating. Remove the water tank, empty it, replace it to extinguish the light and restart the operation.
  • Page 11: Emptying The Internal Water Tank

    EMPTYING THE INTERNAL WATER TANK MANUAL DRAINAGE: When the internal water tank is full, the unit will stop working. Shut off and unplug the unit. Do not move the appliance, as this may cause the water in the internal tank to spill out.
  • Page 12: Troubleshooting

    TROUBLESHOOTING Do not repair or disassemble the air conditioning. Unqualified repair will invalidate the warranty and may lead to failure, causing injuries and property damage. Only use it as directed in this user manual and only perform operations advised here. Problems Reasons Solutions...
  • Page 13: Support

    UK SUPPORT www.electriQ.co.uk/support Please make these simple checks before calling the service line. If the unit still fails to operate, call the number below or complete the online form.
