Summary of Contents for HUUM HIVE 6

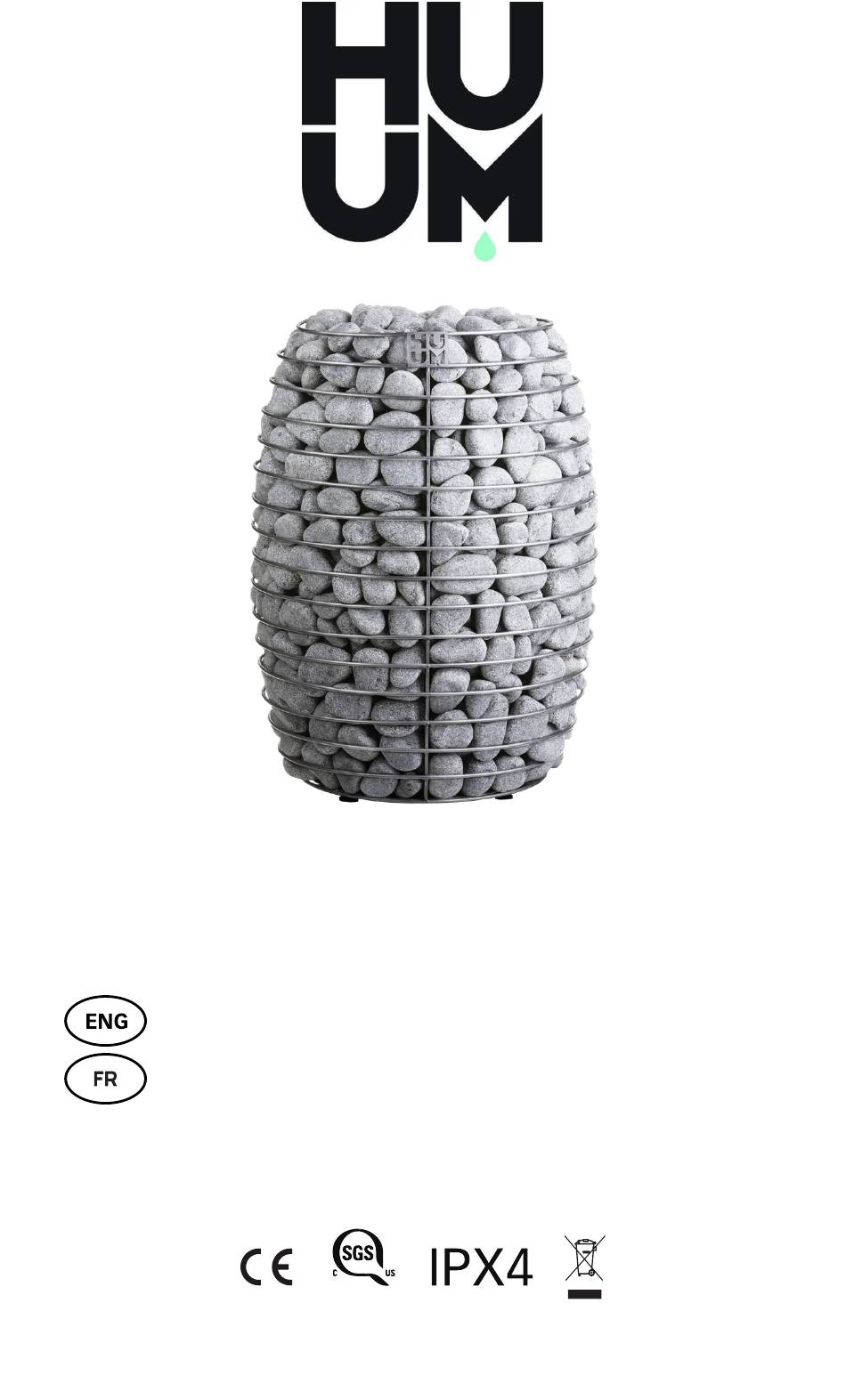

- Page 1 HIVE ELECTRIC SAUNA HEATER 3–12 POÊLE ÉLECTRIQUE POUR SAUNA 15–24 800827...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS DANGER: Indicates a hazardous situation that, if not avoided, will result in death or serious injury. WARNING: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE: Indicates information considered important, but not hazard-related.
- Page 3 • Keep all occupants away from the heater and when it is hot. The stones and outer surface of the heater may burn your skin. • Do not throw excessive amounts of water on the stones. The evaporating water is boiling hot and could cause burns.

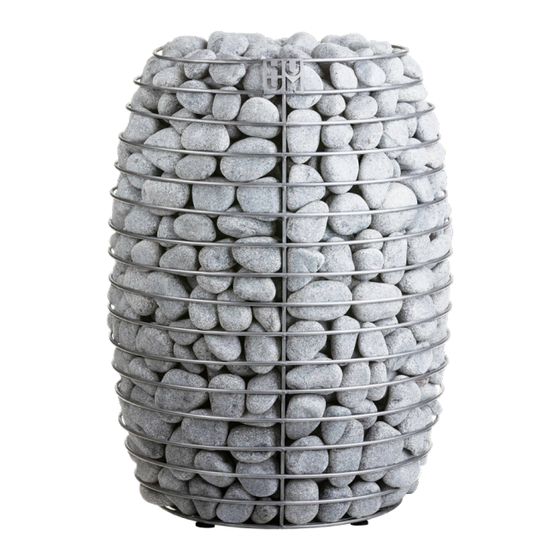

- Page 4 The previously provided manual does not contain this information. The HUUM HIVE electric sauna heater delivery set contains: • electric heater;...
-
Page 5: Installation
The inputs of the power cable are on the bottom cover of the heater. Output Wire Room Elements Amps Circuit Breaker Table 1 size kW (240V) (240V) HIVE 6 176.6-282 ft 5-8 m HIVE 9 317.8-530 ft 37,5 9-15 m 353.1-706.3 ft HIVE 10.5 10.5 43,75 10-20 m... - Page 6 Min. 47.3”/1200 mm 6 X 90 50 mm 2” Max. 15.7”/400 mm Table 2 Ø Weight Quantity of stones* HIVE 6 18.11 in 29.53 in 2.37 in 22.83 in 30.9 lb 10 x 33 lb 10 x 15 kg 460 mm...
- Page 7 Attach the power cable on the terminal block according to the circuit diagram. • Close the cover. • Fix the cable on the output with a cable strap. HIVE 12 kW HIVE 6 kW HIVE 15 kW HIVE 9 kW HIVE 18 kW L1 L2 240V 2~ 240V 2~...
- Page 8 Fitting the stones • Make sure that the heating elements are not bent during the process. • There must be sufficient air circulation around the heater elements. • Stack the stones sparsely between the heating elements. If the stones have been stacked too close to each other, the heating elements may overheat (= shorter useful life) and slow the heating of the sauna.
-
Page 9: Sauna Room
CONTROLLING THE HEATER All certified control panels with thermal control may be used in controlling the heater. The output of the heater must remain in the interval determined by the control panel’s producer. Product can be used only with controlunit with timer function. Inclu- ding other than those for installation in public saunas, shall be provi- ded with a timer. - Page 10 The sauna wall and ceiling construction is considered to be suf- ficiently insulated: • a carefully installed insulation wool layer of 4 in, minimum 2 in (100 mm, min. 50 mm); • the construction is damp proofed with taped aluminium paper or other reflective material;...
- Page 11 aesthetic damage (caused by the reasons mentioned above), ceramic tiles and dark joint filler should be used under and around the heater. Ventilation of the sauna • In order to guarantee a sufficient supply of oxygen and fresh air, the sauna’s ventilation must be as efficient as possible.
- Page 12 WARNING! • Before turning on the electric heater, always check the sauna room and heater. • The heater may be used only when it has been correctly filled with stones. • Do not cover the heater—this causes fire hazard. • Do not touch a working heater, it causes burns.
-
Page 13: Warranty Terms
WARRANTY Buyer is obligated to read user manual and follow instructions and requirements presented. Damage to the product caused by not following instructions and requirements will void warranty. If any defects are found on the product, where manufacturer can be blamed, then buyer has the right to demand fixing or replacing the product.
