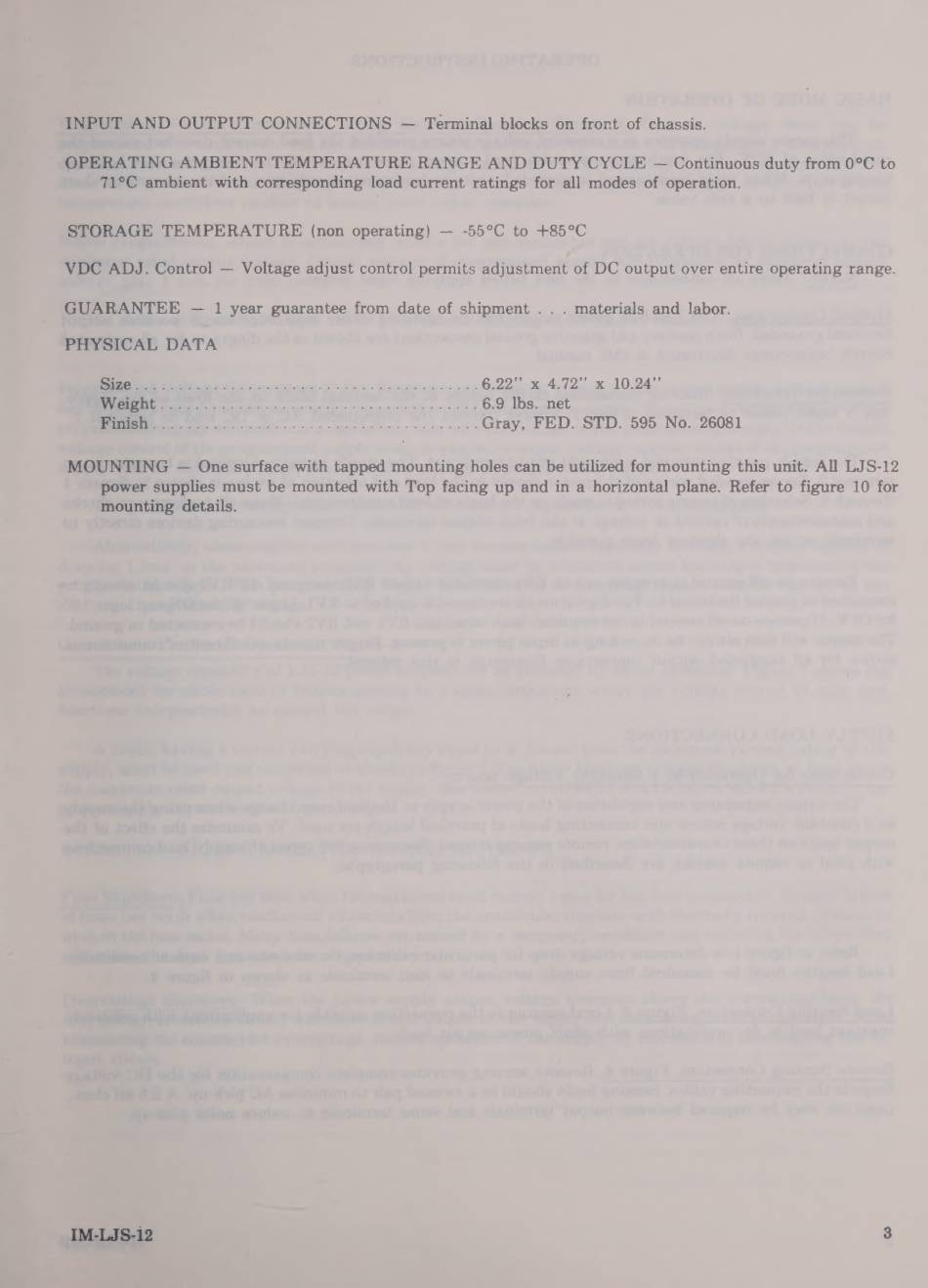

Lambda LJS-12 Series Instruction Manual page 7

INPUT AND OUTPUT CONNECTIONS — Terminal blocks on front of chassis.
OPERATING AMBIENT TEMPERATURE RANGE AND DUTY CYCLE — Continuous duty from 0?C to
71°C ambient with corresponding load current ratings for all modes of operation.
STORAGE TEMPERATURE (non operating) — -55?C to +85°C
VDC ADJ. Control — Voltage adjust control permits adjustment of DC output over entire operating range.
GUARANTEE — 1 year guarantee from date of shipment . . . materials and labor.
PHYSICAL DATA
AAA uino Egg sat saree O22 47200 х ТОА
a ehe old RC, 6.9 Ibs. net
MEN A aa Derim sepe Gray, FED. STD. 595 No. 26081
MOUNTING — One surface with tapped mounting holes can be utilized for mounting this unit. All LJS-12
power supplies must be mounted with Top facing up and in a horizontal plane. Refer to figure 10 for
mounting details.
IM-LJS-12 3
