Lambda LJS-12 Series Instruction Manual page 13

DC CABLE DROP IN
MILLIVOLTS PER AMPERE
CABLE LENGTH 'A' IN FEET (SEE FIG 2)

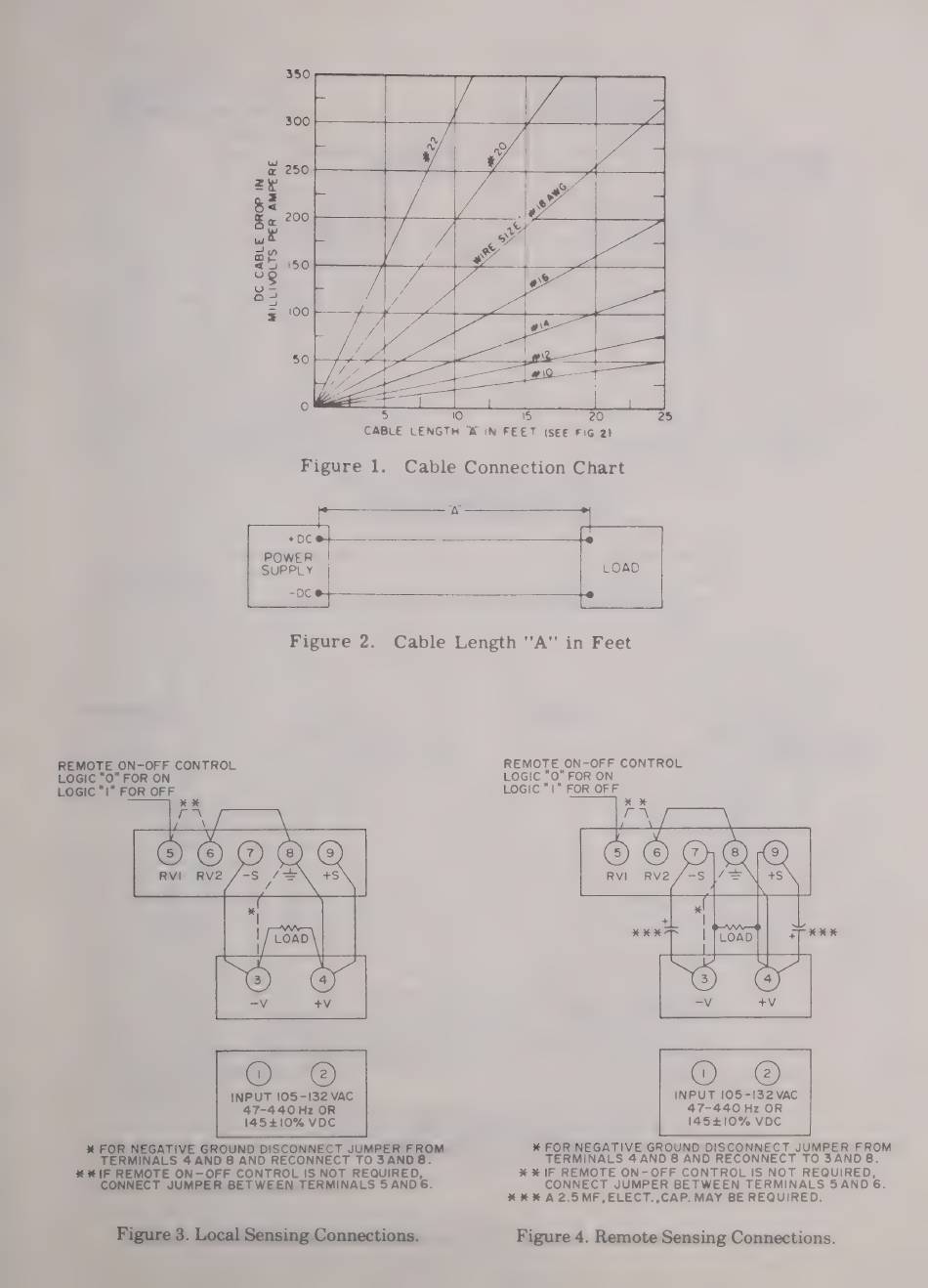

Figure l. Cable Connection Chart
+DC
POWER
SUPPLY
OG
Figure 2. Cable Length ''A'' in Feet
REMOTE ON-OFF CONTROL REMOTE ON-OFF CONTROL
LOGIC "O" FOR ON LOGIC "O" FOR ON
LOGIC "I" FOR OFF
LOGIC "1" FOR OFF
INPUT 105-132 VAC
47-440 Hz OR
145+10% VDC
INPUT 105-132 VAC
47-440 Hz OR
145 +10% VDC
% FOR NEGATIVE GROUND DISCONNECT JUMPER FROM X FOR NEGATIVE GROUND DISCONNECT JUMPER FROM
TERMINALS 4 AND 8 AND RECONNECT TO 3AND 8. TERMINALS 4 AND 8 AND RECONNECT TO 3AND 8.
XXIF REMOTE ON-OFF CONTROL IS NOT REQUIRED, * * IF REMOTE ON-OFF CONTROL IS NOT REQUIRED,
CONNECT JUMPER BETWEEN TERMINALS 5 AND 6. CONNECT JUMPER BETWEEN TERMINALS SAND 6.
XXXA2.5MF,ELECT.,CAP. MAY BE REQUIRED.
