Lambda LJS-12 Series Instruction Manual page 14

REMOTE ON-OFF CONTROL
LOGIC "O" FOR ON
LOGIC "I" FOR OFF
REMOTE ON-OFF CONTROL
LOGIC "O" FOR ON
LOGIC"I" FOR OFF
ж x
fan
i
oe Ун,
INPUT 105-132 МАС
47-440Hz OR
145 110% VDC
INPUT 105-132 VAC
47-440Hz OR
145 +10% VDC
X FOR NEGATIVE GROUND DISCONNECT JUMPER FROM
TERMINALS 4AND 8 AND RECONNECT TO 3 AND 8.
Xx IF REMOTE ON-OFF CONTROL IS NOT REQUIRED,
CONNECT JUMPER BETWEEN TERMINALS 5 AND 6.
XXX A2.5MF, ELECT.,CAP. MAY BE REQUIRED.
(A) LOCAL SENSING (B) REMOTE SENSING

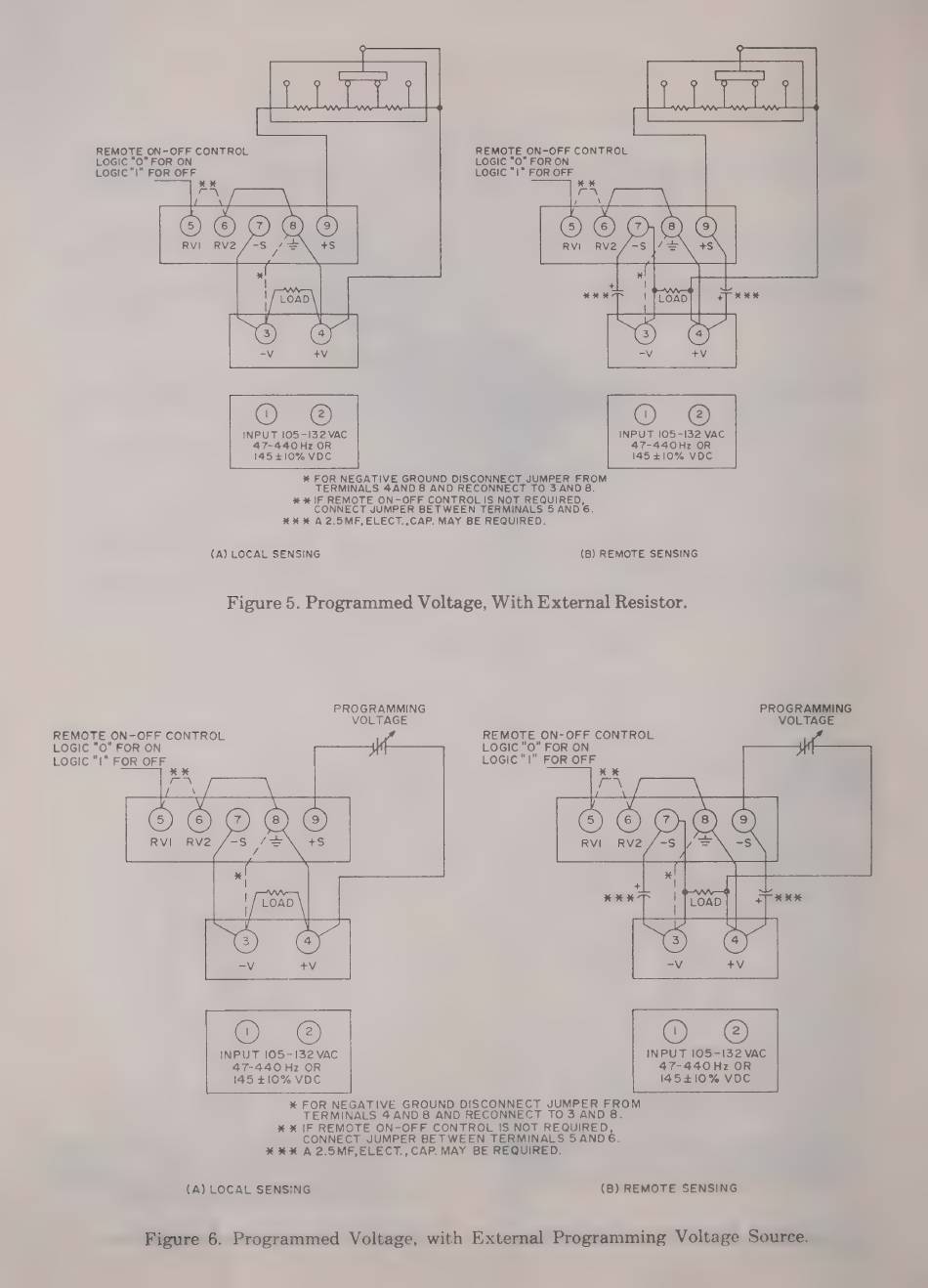

Figure 5. Programmed Voltage, With External Resistor.
PROGRAMMING PROGRAMMING
VOLTAGE VOLTAGE
REMOTE ON-OFF CONTROL REMOTE ON-OFF CONTROL
LOGIC "O" FOR ON LOGIC "O" FOR ON
LOGIC "I" FOR OFF LOGIC "I" FOR OFF
Xx
ON C
INPUT 105-132 VAC
47-440Hz OR
145 + 10% VOC
INPUT 105-132 VAC
47-440 Hz OR
145 110% VDC
X FOR NEGATIVE GROUND DISCONNECT JUMPER FROM
TERMINALS 4 AND 8 AND RECONNECT TO 3 AND 8.
X X IF REMOTE ON-OFF CONTROL IS NOT REQUIRED,
CONNECT JUMPER BETWEEN TERMINALS 5 AND 6.
X XX A2.5MF,ELECT., CAP. MAY BE REQUIRED.
(A) LOCAL SENSING (B) REMOTE SENSING
Figure 6. Programmed Voltage, with External Programming Voltage Source.
