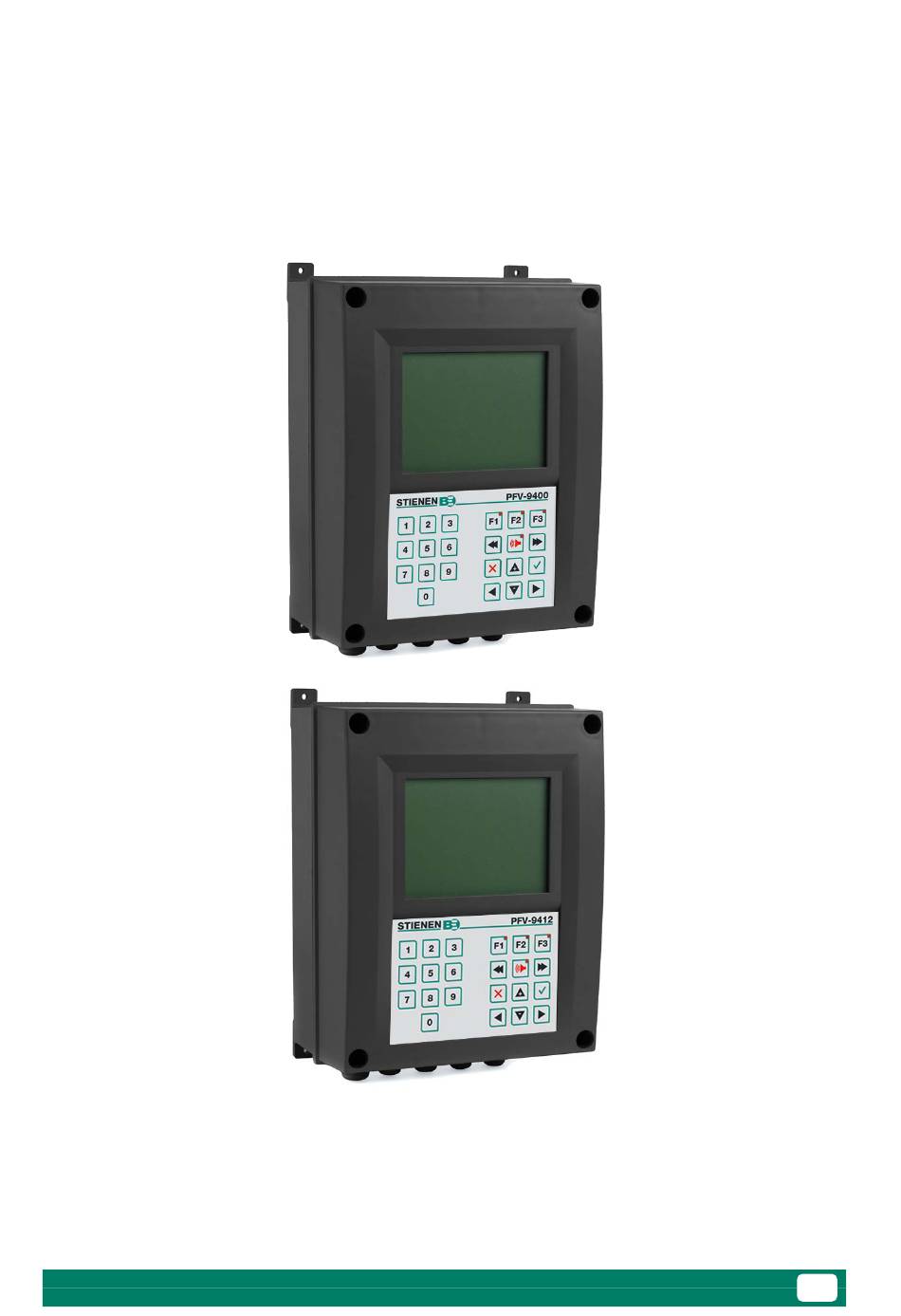

- Page 1 PFV-94xx(-i) FEED WEIGHING COMPUTER PFV-9400 PFV-9412 USER MANUAL PFV-94XX-G-EN02080...
-
Page 2: Table Of Contents
Table of contents and Copyright/Disclaimer Table of contents General introduction ..........................1 1.1 Symbols and definitions ........................1 1.2 Customer service ..........................1 Safety instructions and warnings ......................2 2.1 Sound, independent alarm system ....................2 2.2 During use ............................2 2.3 Disposal............................ - Page 3 No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use.
-
Page 4: General Introduction
Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. in this manual. Stienen has compiled this manual with all due care. If you find any errors, please let us know. 1.1 Symbols and definitions Risk of injury by dangerous electric shock. -
Page 5: Safety Instructions And Warnings
2. Safety instructions and warnings Safety instructions and warnings Read the general safety instructions in this chapter carefully before using the device. A certified installer must install the device and resolve any faults, in accordance with the applicable guidelines. If this product is installed and used in any other way, the warranty will not apply. -
Page 6: Display And Keyboard
3. Display and keyboard Display and keyboard 3.1 Display scroll up/down screen number + title bar scroll left/right graphic representation remote control active time + date to previous/next valve or animal group With every key press, the screen is illuminated for several minutes. In a dark house, settings and measurements are therefore also clearly visible Indication that you can press to retrieve the remaining settings/measurements. -
Page 7: Function Keys
3. Display and keyboard 3.3 Function keys Press and hold F1 and use the keys to select the previous/next language. Recalling the valve status of animal group status. The graph function is active when the LED in the function key lights up. You can switch off the graph function by pressing the function key again. -
Page 8: Adding And Removing Breakpoints Or Periods
3. Display and keyboard 3.6 Adding and removing breakpoints or periods Press ( Enter key) to enter the edit mode. Press and hold and press to add breakpoint/period (provided that the maximum value for periods/breakpoints has not been reached). Press and hold and press to remove a breakpoint/period (provided that there is at least one period/breakpoint). -
Page 9: Main Menu
4. Main menu Main menu 4.1 Access code You can set an access code (four digits) to prevent unauthorised persons from changing settings. Your installer can set up to two access codes for you. When using an access code, we recommend writing it down and keeping it in a safe place. You cannot change settings without an access code. -
Page 10: Feeding System Without Animal Groups
4. Main menu 4.4 Feeding system without animal groups Displaying valve data 1. Press 2. Select the required valve number and confirm your selection with . The cursor automatically moves to the link ( ). 3. Press . If you do not change the number, the cursor remains in place. OR: 4. -
Page 11: Feeding System
5. Feeding system Feeding system 5.1 Principle diagram FN-485 Feed dosage (calculated dosage) Emptying hopper under weighing hopper Distance to valve 1 Hopper capacity (max. dosage valve 1) ... -
Page 12: Animal Groups / Valves
5. Feeding system 5.2 Animal groups / valves If you do not have animal groups, the name of the valve is shown in the place of the animal group. With animal groups, several valves are assigned to a group of animals. The valves are grouped together, as it were. - Page 13 5. Feeding system Your installer sets whether you use the menu item Curve options (installer setting). Behind the feed dosage calculated from the curve, you see how much of the daily amount (grams/animal) has already been fed. Today per animal | If your installer has not enabled the curves or if the curve is disabled for this animal group, the Today per animal setting appears.
- Page 14 5. Feeding system Status The current valve status. If the valve is off or the fill timer is off, the (current) status changes from on to off. Curve setting Today per animal and To feed | If you have animal groups, these are copies of the settings from screen 11.
-
Page 15: Manual Feeding Cycle
5. Feeding system Alarm (dosage alarm) You can clear the alarm status by turning the alarm off and back on again. If the value 0% is shown behind Present dosage, today’s feeding has not started yet. Supply alarm In case of feed alarm, the time-to-empty time, distance-to-valve time and distance-till-ready time are frozen. Once the alarm situation is resolved, the feed computer continues the feeding process. -
Page 16: Curve Options
5. Feeding system Manually aborting a feeding cycle Aborting current feeding cycle Fill method is automatically set to 'off' Set fill method back to 'on' 1. Go to screen 12 Fill method and change the Period action to abort. The period and the feeding cycle will be aborted, and therefore the manual feed turn, are aborted. -
Page 17: Fill Method = Timer
5. Feeding system With automatic partition Default The total daily amount is distributed evenly over the preset number of periods. Setting % yourself If your installer has set the Automatic partition of the valve to Perc. (percentage), you can set the division (partition) among the periods yourself. ... - Page 18 5. Feeding system none abort restart clear Fill method = off Fill method = on Make sure that the next fill period does not start before all valves have been addressed, otherwise dosage alarms will occur. Fill method = off The current state is maintained, the feeding process is 'frozen'.
- Page 19 5. Feeding system Creating stock You can create a stock only if the installer has set the Fill Method to timer and you, the user, have set the Fill Method to on. If the Create-stock setting is yes, the time of the last period is used to create the stock. The dosed amount is not added to the current day but to the next day's amount.
-
Page 20: Fill Method = Pulse
5. Feeding system 5.7 Fill method = PULSE External start pulse max. Transport system min. Valve 2 Valve 1 max. max. Feed line 1 Feed line 2 Feed timer 1 Feed timer 2 Feeding starts based on an external pulse. This can be an external timer or installation. As the feed cycle is started externally, no start times can be entered at the fill timer. -
Page 21: Fill Method = Feed On Demand
5. Feeding system Period action = clear The active period is aborted. All feed measurements are deleted except for the active feeding cycle. The PFB-35/70 feed weigher immediately aborts its cycle. In this situation, it is up to you to ensure that the feed system no longer contains any feed. - Page 22 5. Feeding system Fill method = off Fill method = on Fill method = off The current state is maintained, the feeding process is 'frozen'. The Time-to- empty, Distance-to-valve and Distance-to-ready times are stopped. The PFB- 35/70 feed weigher completes its cycle. When you then switch the Fill method back to on, the feed computer resumes the feeding process from the point at which you had 'frozen' the process.
-
Page 23: Week Programme
5. Feeding system 5.9 Week programme 7 days You can use Week programme to set feeding such that it does not take place every day, but, for example, that feeding takes place on 6 days and no feeding takes place on the seventh day. You can change or call up the week programme for the other animal groups in the same way. -
Page 24: Curves
5. Feeding system 5.11 Curves To avoid having to set up to 30 different dosage, feed mixture and animal weight curves, you can assign individual curves to individual valves. You can programme up to 6 different groups of curves (each with their own individual dosage, feed mixture and animal weight curves). -
Page 25: Overview
5. Feeding system Feed mixture You can vary the feed mixture based on the age of the animals. Note: You set a mixing ratio here instead of percentages of the total dose; If you change the number of ingredients in screen 32 (Ingredient name), the feed mixture (Mixing ratio) will also change. -
Page 26: Animal Data
5. Feeding system 5.13 Animal data The buttons also select the next/previous animal group. Mutation Lost Indicate the number of animals that have died here. Today's mortality (or death rate) is lowered automatically by the value entered after which the entry is erased. If you have entered an incorrect value you can correct this by entering this as a positive value. -
Page 27: Feed System Alarm
5. Feeding system New entry When you set New entry on yes: the mortality (Lost) table is cleared; the set-up date (Entry date) is filled in; feed dosing is started, provided a feeding cycle is active. The set-up date is used to determine the age of the animals. Furthermore, this setting is used to fill the age- related mortality table. - Page 28 5. Feeding system Tare alarm If you deactivate the tare alarm, the PFV-94xx will no longer respond to the tare alarm from the feed weigher. The tare alarm on the feed weigher will also be deactivated. If you switch off the tare alarm and something unexpected like bridging occurs in the weigher, the amount actually dosed will differ from the calculated amount and the animals will not be fed enough.
-
Page 29: Status (F2)
5. Feeding system Separation valve Here you can turn the separation valve alarm on or off. If you turn the alarm off, it will no longer be transmitted to the main alarm and the alarm relay will not de-energize in the event of a malfunction of the separation valve. - Page 30 5. Feeding system Screens for valves You can call up the status for every individual animal group/valve. Besides the entry date and the number of animals present, you can also change the corresponding curve settings if relevant. You can change the curve number only at the animal group (screen 112).
-
Page 31: Transport System Status
6. Transport system status Transport system status Active valve number Active transport system Inactive transport system The valve name may differ from the number. Example: You have changed the name of Valve 1 to Laying hens. The valve recognition number remains 1. Active valve The valve that is currently active. -
Page 32: Silos
7. Silos Silos 7.1 Silo content For each silo, you specify which ingredient (Contains) and how much ingredient (Content: stock or shortage) it contains. Here you also enter the quantity bulked per silo. This quantity is then directly added to the content and Filled is automatically reset to 0. For 9 or more silos, the symbol appears in the title bar. -
Page 33: Alternative Ingredients
7. Silos 7.4 Alternative ingredients If you have set an alternative ingredient for an ingredient and there is a 30-second supply alarm from that ingredient, the computer automatically switches to the alternative ingredient. The Status feed mixture screen shows only those ingredients that are part of the current feed mixture. The Reset alternative setting clears all alternative ingredients. -
Page 34: Silo Status
7. Silos 7.6 Silo status In addition to the current silo status, the amount of feed fed from the silo today is also displayed. You can change the displayed status to: free, empty or blocked. It may take several tens of seconds, before the status is transmitted to the PFB-35/70. -
Page 35: Feed Weigher Status
8. Feed weigher status Feed weigher status This screen displays the feed weigher status of the PFB-35/40. In this screen, you can also turn the feed weigher alarm on and off. You cannot turn off the communication alarm. See table below See also alarm codes page 35 Weighing hopper content in grams Active valve... -
Page 36: Timers
10. System Timers 9.1 Maximum 24 periods You can set up to 24 periods per timer. All times must be consecutive and the difference between two consecutive times must be at least 1 minute. You can edit and readout the times of timers 2 thru 12 in the same way. -
Page 37: Alarm
9. Timers Alarm 10.1 Testing the alarm Test = yes The alarm relay (siren) is tested for 60 seconds. Test = no The alarm test time is cleared. off = temporarily disable alarm Option for temporarily disabling the alarm (siren). See page 5. After resolving the fault, remember to turn the alarm back on. -
Page 38: Communication
9. Timers 10.5 Communication A communication alarm occurs when: The PFV-94xx feed weighing computer is main station. The main station has not received data from any device (PL-9xxx, WEB- 485 etc.) in the same RS485 data communication loop. ... - Page 39 9. Timers Alarm code Description Silo no. already used The preset silo number has already been assigned to another silo. Sum valves exceeds 100% The sum of the mutual division among the valves for the displayed animal group is greater than 100%. Unknown terminal type This type of terminal does not exist Valve already assigned...
- Page 40 9. Timers Alarm code Description Dosage too low The amount of feed dosed is less than the preset minimum amount to be dosed. See Alarm, page 12. Alarm external house Alarm in another house, only if a communication loop is present. This alarm does not trigger the alarm contact of the feed computer.
- Page 41 9. Timers Alarm codes PFB feed weigher Alarm code Description Discharge hatch closed Hatch still not closed after 10 seconds even though it was sent closed Discharge hatch opened Ingredient is not in the selected silo. Feed detected by sensor Hatch still not open after 10 seconds even though it was sent open.
-
Page 42: System
11. Alarm System 11.1 General system settings The first four lines successively show the device, type number and version and date of the software in the device. Language You can set the language of the screen texts here. The language in this example is set to ENG. The language can also be selected using the shortcut key F1, see page 4. -
Page 43: Remote Control
11. Alarm 11.3 Remote control ANote-Remote-N-ENxxxxx 11.4 Display Brightness Brightness setting of the backlight of a screen that is on. Brightness setting of the backlight of a screen that is off. Time Number of seconds that the backlight illuminates after the last key press. Cursor left = when entering edit mode, place cursor at leftmost position.
