STIENEN KL-6500 User Manual

Management computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

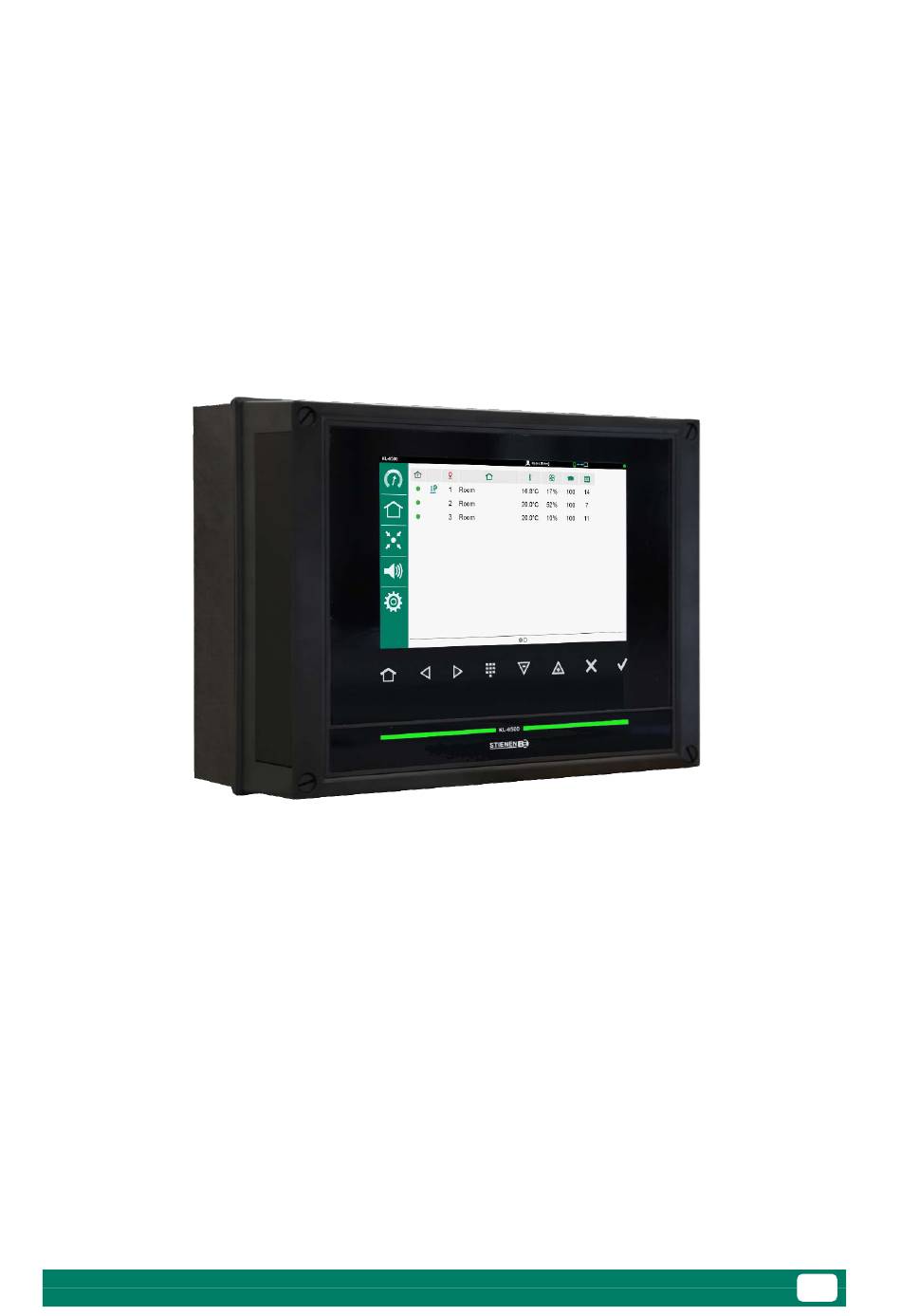

KL-6500
MANAGEMENT COMPUTER
USER MANUAL
EN
KL-6500-G-EN02000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KL-6500 and is the answer not in the manual?

Questions and answers

Related Manuals for STIENEN KL-6500

Summary of Contents for STIENEN KL-6500

  • Page 1 KL-6500 MANAGEMENT COMPUTER USER MANUAL KL-6500-G-EN02000...

  • Page 2: Table Of Contents

    Timer ............................17 Alarm ............................18 KLC-100 computer for central functions ..................20 Central ventilation ........................20 Central Heating ........................22 Central inlet valve........................23 Pressure measurement ......................24 NH3 ............................25 Cooling ............................ 26 Timer ............................28 Alarm ............................28 KL-6500-G-EN02000...
  • Page 3 No part of this publication may be copied and/or published by photocopying or any other means whatsoever, without prior written permission from Stienen BE (www.stienen.com). We do not accept any liability for the contents of this manual and explicitly waive all implicit guarantees of merchantability or fitness for a certain use.

  • Page 4: General Introduction

    Please read all information and instructions carefully before using the product. Symbols mark warnings, important notes, tips, etc. in this manual. Stienen has compiled this manual with all due care. If you find any errors, please let us know. 1.1 Symbols and definitions Risk of injury by dangerous electric shock.

  • Page 5: Safety Instructions And Warnings

    2. Safety instructions and warnings Safety instructions and warnings Read the general safety instructions in this chapter carefully before using the device. A certified installer must install the device and resolve any faults, in accordance with the applicable guidelines. If this product is installed and used in any other way, the warranty will not apply.

  • Page 6: Operation

    3. Operation Operation 3.1 Selecting the desired language Available languages: ENG, NLD, DEU, FRA, RUS, POL, HUN, SPA, CES, TUR, ZHO, JAP = to select next language = to select previous language 3.2 Logging in 1. Tap to open login screen. 2.

  • Page 7: Confirming A Change

    3. Operation 3.4 Confirming a change Some important settings have to be confirmed after changing. You will then see the left pop-up window. 3.5 LED bar Blue, constantly on Device out of operation Green, constantly on No alarm Alarm, alarm delay time not yet Yellow, constantly on expired Red, constantly on...

  • Page 8: Main Menu

    4. Main menu Main menu KL-6500 KLD-100 KLC-100 Overview house temperature Overview outside temperature Overview outside temperature Management Operating hours room heating Overview air scrubber pressure Operating hours room heating Overview NH3 Reset min/max table Reset min/max table Ventilation Inlet valve...

  • Page 9: Adding Menu Item To Favorites Bar

    4. Main menu 4.2 Adding menu item to favorites bar 1. Select the screen to be added to the favorites bar. 2. Touch the menu item icon until the Add screen appears. 3. Tap to add the menu item to the favorites bar. 4.3 Removing a menu item from the favorites bar 1.

  • Page 10: Management

    5. Management Management KLD-100 room computer Animal data Day number curve Current number of animals in the house Min/Max table Min/Max house temperature table Min/Max outside temperature table Room heating operating hours Inlet heating operating hours Floor heating operating hours Reset min/max value of today (of all room tables) The operating hours can be deleted by setting the slider at Delete operating hours to 1.

  • Page 11: Kld-100 Room Computer

    6. KLD-100 room computer KLD-100 room computer Room ventilation Settings Maximum ventilation (at setpoint room temperature + bandwidth) Minimum ventilation (at setpoint room temperature) Setpoint room temperature Bandwidth Current room temperature Calculated ventilation Current ventilation Current outside temperature Current ventilation capacity KLD-100-G-EN02000...
  • Page 12 6. KLD-100 room computer Growth curve Growth curve OFF Growth curve ON Point Breakpoint (max. 7 breakpoints Day number of the breakpoints (the current day number is shown in brackets) Room temperature Minimum ventilation Maximum ventilation Room temperature and ventilation alarm = Room temperature alarm ON = Room temperature alarm OFF Current room temperature alarm...

  • Page 13: Inlet Valve

    6. KLD-100 room computer Minimum alarm limit room temperature Maximum alarm limit room temperature Absolute alarm limit room temperature = Ventilation alarm ON = Ventilation alarm OFF Minimum ventilation limit Maximum ventilation limit Calculated and measured ventilation Alarm codes see section 8.6, page 34. Inlet valve Settings Ventilation...

  • Page 14: Heating

    6. KLD-100 room computer Heating Room heating Settings = Room heating OFF = Room heating ON Room heating temperature setpoint (differential temperature relative to room temperature setpoint, see screen 2.1.1.x page 8) Calculated room heating temperature Calculated room heating temperature from curve Current room temperature Room heating status: ON (ON/OFF heating)

  • Page 15: Inlet Heating

    6. KLD-100 room computer Room heating curve = Growth curve OFF = Growth curve ON Point Breakpoint (maximum 7 breakpoints) Day number of breakpoint (the current day number is shown in brackets) Room temperature Inlet heating Settings Inlet heater temperature setpoint Calculated inlet heating temperature Calculated inlet heating temperature from curve Current inlet temperature...
  • Page 16 6. KLD-100 room computer Inlet heating status: ON Current inlet heating position (%) (regulated heating) Current inlet temperature Inlet heating status: OFF Current inlet heating position (%) (regulated heating) Inlet heating curve = Growth curve OFF = Growth curve ON Point Breakpoint (maximum 7 breakpoints) Day number of the kink point (the current day number is shown in brackets)

  • Page 17: Floor Heating

    6. KLD-100 room computer Due to outdoor temperature compensations, the calculated alarm limit may differ. Floor heating Settings = Floor heating OFF = Floor heating ON Set temperature floor heating Calculated temperature floor heating Calculated temperature floor heating off curve Current floor temperature Floor heating status: ON (ON/OFF heating)
  • Page 18 6. KLD-100 room computer Curve floor heating = Growth curve OFF = Growth curve ON Point Breakpoint (maximum 7 breakpoints) Day number of breakpoint (the current day number is shown in brackets) Inlet temperature Floor heating alarm = Alarm OFF = Alarm ON Actual floor heating temperature Minimum alarm limit floor heating...

  • Page 19: Cooling

    6. KLD-100 room computer Cooling Settings ON/OFF cooling Modulating cooling = Cooling OFF = Cooling ON Maximum pulse duration 'on' (cycle time) Minimum pulse duration 'on’ Bandwidth Cooling temperature setpoint Calculated cooling temperature Calculated cooling temperature from curve Current cooling temperature Cooling status: ON (ON/OFF cooling) Current cooling temperature Cooling status: OFF (ON/OFF cooling)

  • Page 20: Timer

    6. KLD-100 room computer Cooling curve = Growth curve OFF = Growth curve ON Item Breakpoint (maximum 7 breakpoints) Day number of breakpoint (the current day number is shown in brackets) Cooling temperature (differential temperature relative to the room temperature setpoint, see screen 2.1.1.x page 8) Timer Settings...

  • Page 21: Alarm

    6. KLD-100 room computer Alarm Main alarm (settings) If you change the status of the main alarm, you have to confirm the change once again via a pop-up window. Main alarm enabled Main alarm disabled When the main alarm is disabled, the LED bar flashes red regularly. No more alarms will be issued. Siren test: For 120 seconds, the alarm relay (siren) is activated.

  • Page 22: Outdoor Temperature

    6. KLD-100 room computer Latest alarmes The alarm history shows the last five alarm situations (with corresponding date and time) that caused the alarm relay to energize. Alarm 0 is the most recent alarm. Thermo-differential alarm Every minute the temperature is measured by the sensor concerned and compared to the previous measurement.

  • Page 23: Klc-100 Computer For Central Functions

    7. KLC-100 computer for central functions KLC-100 computer for central functions Central ventilation Settings Graphic display of the current ventilation Current central ventilation Ventilation corrected by xxx% over xxx seconds Average ventilation in the rooms Optimal valve position in the room Highest valve position xxx% in room xx Restart measuring fans in the rooms Pressure in central channel...
  • Page 24 7. KLC-100 computer for central functions Alarm Central ventilation control alarm ON/OFF No ventilation data from climate controls No heat demand from climate controls No valve positions from climate controls No ventilation (measurement = 0%). Central ventilation pressure control alarm ON/OFF (input R1) Pressure sensor defective Pressure too low Pressure too high...

  • Page 25: Central Heating

    7. KLC-100 computer for central functions Central Heating Settings Central heating status: ON Actual central heating position (%) (controlled heating) Minimum heat demand (frost protection). If the temperature in the rooms (which transmit the heat demand to this boiler) drops below the minimum heat demand setpoint, the central heating boiler switches on.

  • Page 26: Central Inlet Valve

    7. KLC-100 computer for central functions Central inlet valve Settings The valve control is based on ventilation. Under normal conditions, the air inlet is directly proportional to the valve position (%). However, the airflow through this valve is not directly proportional to the valve position.

  • Page 27: Pressure Measurement

    7. KLC-100 computer for central functions Pressure measurement Settings Current pressure (R2) Alarm Alarm pressure measurement turned OFF Pressure sensor defective Pressure too low Pressure too high Minimum alarm limit pressure control central ventilation Maximum alarm limit pressure control central ventilation Current pressure KLD-100-G-EN02000...
  • Page 28 7. KLC-100 computer for central functions Settings Current ammonia concentration The current value of the second ammonia sensor is displayed in the same way. Alarm Ammonia control alarm ON/OFF sensor defective Ammonia concentration too low Ammonia concentration too high Minimum alarm limit ammonia concentration Maximum alarm limit ammonia concentration Current ammonia concentration The alarm for the second ammonia control is identical to the alarm for the first ammonia control.

  • Page 29: Cooling

    7. KLC-100 computer for central functions Cooling Settings ON/OFF cooling Modulating cooling Cooling OFF Cooling ON Maximum pulse duration ‘enabled’ (cycle time) Minimum pulse duration ‘enabled’ Bandwidth Cooling temperature setpoint Current cooling temperature Cooling status is ON ( ON/OFF cooling) Current cooling temperature Cooling status is OFF ( ON/OFF cooling)
  • Page 30 7. KLC-100 computer for central functions Cooling off at RH higher than setting ( Current RV Alarm Cooling alarm ON/OFF Temperature sensor defective Temperature too high Current cooling temperature Maximum alarm limit cooling Absolute alarm limit cooling RH control alarm ON/OFF RH sensor defective RH too low RH too high...

  • Page 31: Timer

    7. KLC-100 computer for central functions Timer You can set up to 24 periods. Timer runs according to set periods Timer is manually activated Timer is turned OFF Add period Delete period Start Start time period End time period Alarm Settings Main alarm enabled Main alarm disabled...
  • Page 32 7. KLC-100 computer for central functions Main alarm of the KLC-100 is enabled Main alarm of the KLC-100 is disabled Alarm in the KLC-100 Unit alarm and main alarm KLC-100 are enabled Unit alarm and main alarm KLC-100 are disabled Central ventilation alarm Alarm pressure control central ventilation Central air inlet alarm...
  • Page 33 7. KLC-100 computer for central functions Thermo-differential alarm Every minute the temperature is measured by the sensor concerned and compared to the previous measurement. An alarm is given when:  the temperature rise is equal to or greater than the relative alarm limit setpoint ( ...

  • Page 34: Alarm

    8. Alarm Alarm Settings Main alarm = ON = OFF Test Set the slider to (ON) to activate the alarm relay (siren) for 120 seconds. Set the slider to (OFF) to clear the alarm test time. Set the slider to (ON) to temporarily disable the main alarm (siren) for 30 minutes.

  • Page 35: Latest Alarmes

    8. Alarm Latest alarmes The alarm history shows the last five alarm situations (with corresponding date and time) that caused the alarm relay to energize. Alarm 0 is the most recent alarm. Communication alarm Here you can switch the communication alarm on and off. Alarm Switching the communication alarm ON and OFF.

  • Page 36: Thermo-Differential Alarm

    The thermo differential alarm occurs only when there is a positive difference. Alarm FarmConnect Alarm FarmConnect Switching the FarmConnect alarms ON and OFF Time no data If no data transfer between the KL-6500 and FarmConnect takes place during the set time (default 75 minutes), an alarm is generated. KLD-100-G-EN02000...

  • Page 37: Alarm Codes

    8. Alarm 8.6 Alarm codes Module 0 not found Module not found Jumper A on RTCPU is in the lower position. Move this jumper to the upper position. If you do not, the changes will not be saved. Communication error between the devices Communication error with WEB-485 (FarmConnect) No ventilation data from the rooms (central ventilation) No valve positions of the wards (central valve)
  • Page 38 8. Alarm Measured temperature difference sensor 1 too large within a minute Measured temperature difference sensor 2 too large within a minute Measured temperature difference sensor 3 too large within a minute Pressure too low Pressure too high sensor 1 too low sensor 1 too high sensor 2 too low sensor 2 too high...

  • Page 39: System

    9. System System Package The package number of the compressed software files RTCPU Type Device type number (167 = KL-6500) Software version Program version of the embedded software (RTCPU processor board) Software date Program date of the embedded software WEC board...

  • Page 40: Date/Time

    Remote control If the KL-6500 is connected to a network and you have entered the codes, an IP address (IPv4 Address) is automatically assigned to the controller. This IP address is needed to connect to the device via the browser.

  • Page 41: Remote Login

    9. System Remote login 1. Open the Internet browser. 2. Enter the IP address in the address bar and press ENTER. IP address 3. Press the TAB key. 4. Enter the user name and press the TAB key. 5. Enter the password and press the TAB key. 6.

  • Page 42: Farmconnect

    Connected with FarmConnect Yes = KL-6500 is currently connected to the FarmConnect server. Connected to devices Yes = Data transfer is taking place between the KL-6500 management computer and the KLD-100 room computer and/or KLC-100 computer for central functions. Data transfer Yes = Data transfer is taking place between the KL-6500 management computer and FarmConnect.
